Chevrolet S10 Blazer Engine Water Pump Guide (1983-1994)
Keep your classic S10 Blazer's engine cool and prevent overheating by understanding when and how to replace your water pump.
- A leak from the small 'weep hole' is the most common and definitive sign of a failing water pump; even a small drip means it's time for a replacement.
- Driving with a failing water pump is not recommended as it can lead to sudden and severe engine overheating.
- High-quality aftermarket brands like ACDelco and Gates are reliable and cost-effective choices for this vehicle.
- While replacing the pump, it is highly recommended to also replace the thermostat and inspect the hoses and belt for wear.
Is Your S10 Blazer's Water Pump Failing?
For a 1983-1994 Chevrolet S10 Blazer, the water pump is a common wear-and-tear item. Age and mileage are its biggest enemies. Recognizing the signs of failure early can save you from a roadside breakdown and a potentially damaged engine.
Key Failure Symptoms:
- Coolant Leaks: This is the most common sign. You might see puddles of green or orange fluid under the front-center of your truck. The leak often comes from a small 'weep hole' on the pump, designed to let coolant escape when the internal seal fails. Even a small drip from this hole means the pump needs to be replaced.
- Engine Overheating: If the pump's impeller is damaged or the bearing seizes, it can't circulate coolant effectively. This will cause the temperature gauge to climb, especially during idle or in stop-and-go traffic.
- Whining or Grinding Noise: A high-pitched whine or a rough, grinding sound from the front of the engine that changes with RPM can indicate a failing water pump bearing.
- Wobbly Pulley: If you can grab the fan (with the engine off!) and wiggle it back and forth, the bearing on the water pump shaft is worn out.
Can I Drive with a Bad Water Pump?
It is not recommended. A small leak can become a large one without warning, and a seized pump will cause the engine to overheat rapidly, leading to critical damage like warped cylinder heads or blown head gaskets.
Choosing the Right Aftermarket Water Pump
You don't need to hunt down an expensive, hard-to-find OEM part for your S10 Blazer. Aftermarket water pumps offer excellent quality and value. They are manufactured to meet or exceed original specifications and are readily available. Here’s a breakdown of the brands available:

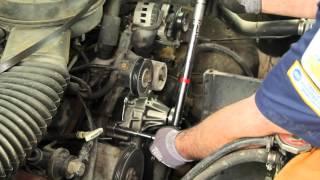

- Premium Tier (Best Quality): Brands like ACDelco (GM's own parts brand), Gates, and Edelbrock (for performance) are trusted names. ACDelco is often considered the go-to for GM vehicles, offering a direct-fit replacement with high-quality seals and bearings. 🎬 See how to install a new water pump on 4.3L engines. Gates is also a top-tier manufacturer known for its durable components.
- Standard Tier (Reliable Value): Brands like GMB, Melling, and US Motor Works provide a great balance of quality and price. GMB is a well-regarded manufacturer that even supplies parts to some automakers. These are solid choices for a daily driver or a budget-conscious repair.
- Economy Tier (Basic Function): Brands like PRW and WJB offer the most affordable options. While they will get your truck back on the road, some owners in forums report a higher failure rate with lesser-known, budget-friendly brands.
Pro Tip: When you replace the water pump, it's a smart and inexpensive move to also replace the thermostat, radiator hoses, and serpentine belt if they are old. This preventative maintenance can save you from doing the job twice.
Cost of Replacing Your S10 Blazer Water Pump
The cost is reasonable, especially if you can do the work yourself. The job is straightforward for a DIY mechanic with basic tools.
🎬 Watch a step-by-step guide on replacing your S10 water pump.| Item | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $36.00 - $94.78 |
| Shop Labor | $140 - $250 |
| Total Professional Replacement | $176 - $345+ |
Frequently Asked Questions
Do I need any special tools to replace the water pump?

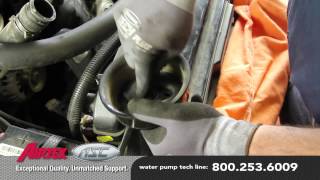

For most 1983-1994 S10 Blazers, you'll need basic hand tools like a socket set and wrenches. A fan clutch wrench may be needed to remove the fan from the old pump. It's also important to have a gasket scraper to clean the engine block surface 🎬 Follow this video tutorial for 2.2L water pump installation. thoroughly before installing the new pump.
Should I use a gasket sealer?
Yes, it's a good practice. Applying a thin layer of RTV gasket maker or thread sealer to both sides of the new gaskets and on the bolt threads can help ensure a leak-free seal.
Are there any recalls for the S10 Blazer water pump?
No specific recalls were found for the 1983-1994 Chevrolet S10 Blazer engine water pump during a search of NHTSA records. Recalls for water pumps on much newer GM vehicles do exist but do not apply to this generation.
What kind of coolant should I use after replacement?
For this era of S10 Blazer, traditional green IAT (Inorganic Additive Technology) coolant is the standard. It's crucial not to mix coolant types, as it can cause gelling and clog your cooling system. If you're unsure what's in there, it's best to completely flush the system and refill with a 50/50 mix of new coolant and distilled water.

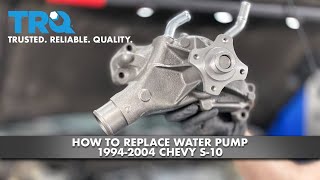

Helpful Videos
Technical Specifications
OEM Part Numbers: 88926233 19201601 251725 12321374
The 1983-1994 S10 Blazer used different water pumps depending on the engine (e.g., 2.8L V6, 4.3L V6). The pump is belt-driven and typically features a cast iron or aluminum housing. Ensure you select the correct pump for your specific engine, as mounting points and hose connections can vary.
