Ford Ranger Wheel Bearing Guide (1983-2003): Replacement & Part Choices
Here’s what you need to know about choosing the right front wheel bearings for your 1983 to 2003 Ford Ranger.
- You MUST know if your Ranger is 2WD or 4WD before buying parts; the front wheel bearing systems are completely different.
- For 4WD models (1998+), you must buy a complete hub assembly; the bearing is not sold separately.
- For 2WD models, you will buy inner and outer bearings which must be packed with grease and installed into your brake rotor.
- Premium brands like Timken and SKF are highly recommended for longevity, while budget brands are available but may not last as long.
Understanding Your Ranger's Wheel Bearings: 2WD vs. 4WD
Before buying parts, you must know if your Ranger is 2WD or 4WD. The front wheel bearing systems are completely different. Ordering the wrong part is the most common mistake owners make.

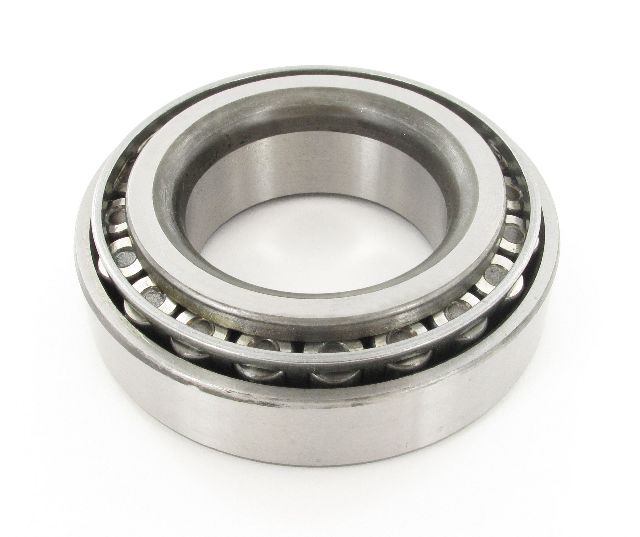

- 2WD Models: These trucks use a more traditional setup with two separate tapered roller bearings (an inner and an outer bearing) for each front wheel. These bearings are fitted inside the brake rotor, which acts as the wheel hub. This design is serviceable, meaning the bearings can be cleaned and repacked with fresh grease, which is recommended about once a year or every 12,000 miles. When they wear out, you replace the individual bearings and races. 🎬 See this walkthrough for replacing 2WD bearings and races
- 4WD Models (1998-2003): Most 4WD Rangers in this era use a sealed, non-serviceable wheel bearing and hub assembly. The bearing is part of a complete unit that bolts to the steering knuckle. You cannot replace just the bearing itself; you must replace the entire hub assembly. While more expensive than individual bearings, the replacement process is much more straightforward. 🎬 Watch: How to replace the 4x4 front wheel hub assembly
- Older 4WD Models (Pre-1998): Early 4WD Rangers may have serviceable bearings with manual or automatic locking hubs. The design can vary, so it's crucial to identify your specific setup.
Known Issue: 1998-2000 4x4 Vacuum Hubs
The pulse vacuum-operated hubs on 1998-2000 4WD Rangers are known to be unreliable and fail frequently. Many owners choose to replace them with more durable manual locking hubs from brands like Rugged Ridge or AVM, or modify the existing hubs to be permanently locked like the 2001 and newer models. Failure of these hubs can sometimes be misdiagnosed as a wheel bearing issue.
Is an OEM or Aftermarket Wheel Bearing Better?
For a vehicle of this age, aftermarket parts offer the best value. The original Ford parts are often discontinued or very expensive. High-quality aftermarket brands like Timken and SKF are often the original equipment manufacturer (OEM) for many car companies, so their quality can meet or even exceed the original parts. Budget-friendly brands can be a good choice for a work truck or if money is tight, but they may not last as long as premium brands. For this specific part, a premium aftermarket brand provides factory-level quality for a lower price.
Choosing the Right Aftermarket Brand
Not all aftermarket brands are created equal. They generally fall into three tiers:
- Premium Brands (Timken, SKF, FAG): These are top-tier brands known for excellent quality and durability. They use high-quality steel and precise engineering. Many professional mechanics prefer these brands. If you want the longest-lasting, most reliable part, choose one of these.
- Standard/Mid-Grade Brands (Mevotech, National): These brands offer a good balance of quality and price. Mevotech is often considered a decent alternative to more expensive brands and is a solid choice for daily driving. National is another long-standing brand in this category.
- Economy Brands (TrueDrive, WJB, IAP Hub Assembly): These are the most affordable options. Brands like WJB can offer good value, with some users reporting positive experiences, but the quality can sometimes be inconsistent. These are best suited for older, lower-mileage vehicles or if you're on a strict budget and can do the repair yourself.
Pro Tip: When replacing wheel bearings, it's always a good idea to replace them in pairs (both front wheels at the same time). If one side has failed due to age and mileage, the other side is likely not far behind.
| Part Type | Aftermarket Part Cost (per wheel) | Estimated Shop Labor Cost |
|---|---|---|
| 2WD Bearing Kit | $10 - $60 | $100 - $200 |
| 4WD Hub Assembly | $50 - $150+ | $130 - $200 |
Cost estimates are approximate and can vary based on your location, the specific brand chosen, and the shop's labor rates.
Frequently Asked Questions (FAQ)
How do I know if my Ranger's wheel bearing is bad?
The most common symptom is a noise coming from the wheel area. It can be a humming, roaring, growling, or grinding sound that gets louder with speed. The noise may also change or go away when you turn the steering wheel; for example, a bad right wheel bearing will often get louder when you turn left, and vice-versa. Other symptoms include a loose or vibrating steering wheel, 🎬 Watch: How to 100% diagnose a bad wheel bearing and in severe cases, the ABS light may come on.
Can I replace just the bearing on my 4WD Ranger?
No. On 1998-2003 4WD models, the front wheel bearing is part of a sealed hub assembly. The entire unit must be replaced. You cannot press out the old bearing and install a new one. This makes the repair simpler but the part is more expensive than the individual bearings used on 2WD models.
Is replacing a Ranger wheel bearing a DIY job?
For a 4WD model, it is a very DIY-friendly job for someone with basic mechanic's tools. It involves unbolting the old hub assembly and bolting on the new one. For a 2WD model, the job is more involved. It requires removing the old bearing races from the rotor and pressing in new ones, as well as properly packing the new bearings with grease and setting the preload with the spindle nut. This requires more specific tools and knowledge.
Were there any recalls for Ranger wheel bearings?
Yes, there was one specific recall. NHTSA Campaign #89V109000 was issued for 1989 Ford Ranger 4x4 trucks. The issue was that front wheel bearing adjusting nut retaining keys could be missing, which could allow the nut to loosen and potentially lead to the wheel and hub detaching. There are no widespread wheel bearing recalls for other years in this range, though a general complaint of loose front wheel bearings on 2003 models has been noted.
Helpful Videos
Technical Specifications
System varies by drivetrain. 2WD models use serviceable inner and outer tapered roller bearings. 4WD models (1998-2003) use a sealed, non-serviceable hub and bearing assembly. The 4WD hub assembly axle nut torque is 162 ft-lbs. The three bolts holding the hub to the knuckle should be torqued to 85 ft-lbs.
