Your In-Depth Guide to the 1984-1989 Nissan 200SX Throttle Position Sensor
Solve common engine hesitation and rough idle in your S12 200SX by understanding and choosing the right Throttle Position Sensor.
- A failing TPS on a 1984-1989 200SX causes hesitation, poor idle, and power loss.
- Manual adjustment with a multimeter is required after installation; this is not a plug-and-play part.
- Choose a quality aftermarket brand like Standard Motor Products for reliability, as OEM parts are unavailable.
- Ensure the part you order matches your specific engine (CA20E, VG30E, etc.) as connectors and types can vary.
Is a Failing Throttle Position Sensor Causing Your 200SX Problems?
If your 1984-1989 Nissan 200SX is hesitating, idling poorly, or stalling, a faulty Throttle Position Sensor (TPS) is a likely culprit. This sensor is a known failure point on many vehicles of this era. Because it constantly moves with the throttle, it wears out over time. When it fails, it sends incorrect information to the engine computer, leading to a variety of drivability issues. Since your S12 200SX uses an older diagnostic system, you may not get a "Check Engine" light, making it important to recognize the physical symptoms.
Choosing the Right Aftermarket TPS for Your S12 200SX
For a vintage car like the S12, finding a new original equipment (OEM) part from Nissan is nearly impossible. The market is now served by aftermarket brands. Quality can vary, so it's important to choose wisely. Aftermarket electronics for older Japanese cars can sometimes be inconsistent, but reputable brands offer reliable solutions.
Pro Tip: The most critical part of replacing the TPS on a 1984-1989 200SX is the adjustment. Unlike modern sensors, these units must be manually rotated to the correct voltage reading at idle and wide-open throttle. Skipping this step will result in poor performance even with a brand-new part. A factory service manual for your specific year and engine is highly recommended.
- Premium Aftermarket (e.g., Standard Motor Products): Brands like Standard Motor Products (SMP) have a strong reputation for producing quality engine management components that often meet or exceed original specifications. They are a trusted choice for a reliable, long-lasting repair.

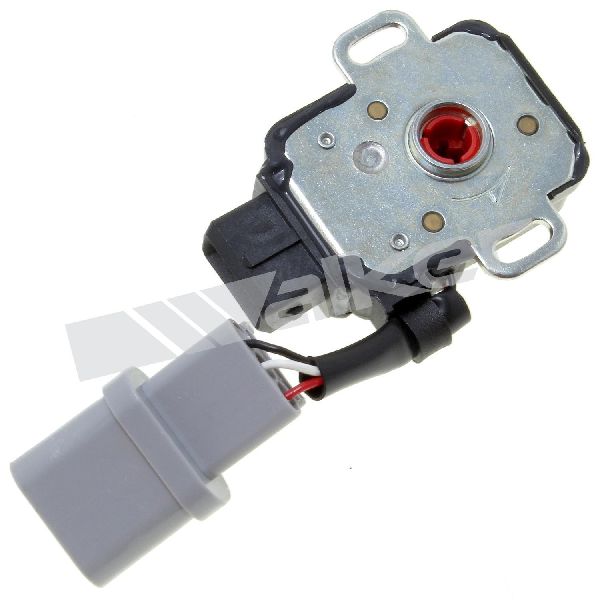

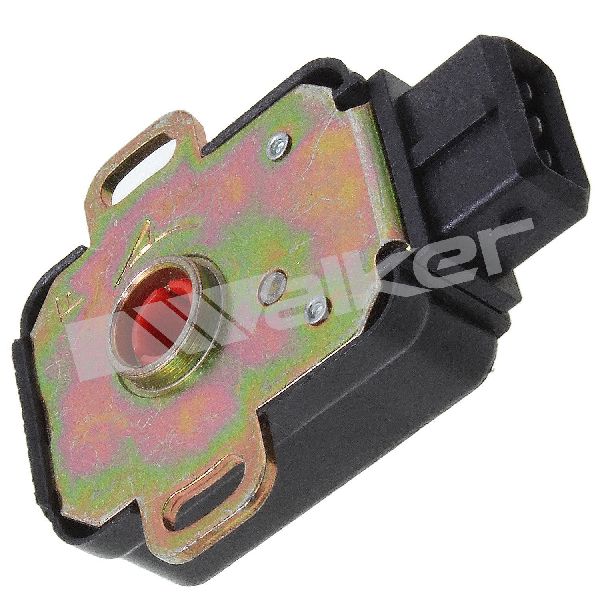

- Standard Aftermarket (e.g., Walker Products, Facet): Brands like Walker and Facet offer a good balance of quality and value. They are a popular choice for owners looking for a capable replacement part without the premium price tag.
- Economy Brands: While lower-priced options are available, their long-term reliability can be a gamble. For a critical sensor like the TPS, it's often worth spending a little more to avoid having to do the job twice.
Cost of Replacing Your 200SX Throttle Position Sensor
| Part Category | Estimated Cost |
|---|---|
| New Aftermarket Part | $59 - $144 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $159 - $344 |
Important Note: Prices are estimates. Shop labor can vary significantly by location. The most important factor is finding a mechanic familiar with older Nissans who understands the TPS adjustment procedure.
Frequently Asked Questions (FAQ)
Can I replace the 200SX throttle position sensor myself?
Yes, this is a DIY-friendly job for a home mechanic with basic tools. The sensor is typically held on by two screws and is easy to access on the throttle body. However, the critical part is the adjustment, which requires a multimeter to set the correct voltage. If you are not comfortable with electrical diagnosis, it may be best to leave this job to a professional.
What makes the S12 TPS different from modern sensors?
The TPS on the 1984-1989 200SX is a potentiometer that requires manual adjustment. You must physically rotate the sensor to achieve a specific voltage reading at closed throttle (e.g., ~0.4-0.5 volts) and ensure it sweeps smoothly to full voltage (~4.0-4.5 volts) at wide-open throttle. Modern sensors are typically self-calibrating.
Are there any recalls or TSBs for the 200SX TPS?
Searches of the NHTSA database did not show any specific recalls or Technical Service Bulletins (TSBs) for the throttle position sensor on the 1984-1989 Nissan 200SX. For a vehicle of this age, community forums and factory service manuals are the best sources of information for common problems and repair procedures.
Will a bad TPS cause my automatic transmission to shift poorly?
Yes, a faulty TPS can cause issues with automatic transmission shifting. The engine computer uses throttle position data to help determine shift points. Incorrect data from a bad sensor can lead to delayed, harsh, or erratic shifting.
Technical Specifications
OEM Part Numbers: 22620-12G11 22620-V5012 22620-18E01 22620-84S00
This is a manually-adjusted potentiometer-type sensor. It typically has a 3-pin connector and mounts to the throttle body with two screws. The correct adjustment requires setting a specific voltage at idle (throttle closed) and verifying a smooth voltage increase to wide-open throttle.
