Ford Mustang Windshield Washer Pump: A Guide for 1984-1999 Models
Keep your Mustang's windshield clear by understanding washer pump failures and choosing the right replacement part.
- Failure is easy to diagnose: no spray, weak spray, or no pump sound are the main signs.
- For this generation of Mustang, aftermarket pumps from brands like ACDelco and Trico are reliable and much more affordable than OEM.
- Replacement is a simple, beginner-friendly DIY task that usually takes less than 30 minutes.
- Always check for simple fixes first, like a blown fuse or clogged hoses, before replacing the pump.
Is Your Windshield Washer Pump Failing?
For 1984-1999 Ford Mustangs, a failing windshield washer pump is a common issue due to age. The symptoms are usually straightforward. You might hear the pump motor running, but no fluid comes out, or the spray is very weak. In other cases, the pump might not make any sound at all, pointing to an electrical failure or a dead motor. You may also find a puddle of blue washer fluid under the front of your car, which indicates a leak from the pump or the reservoir grommet it sits in.
Common Failure Symptoms
| Symptom | Possible Cause |
|---|---|
| No sound from pump | Dead motor, blown fuse, or bad wiring. |
| Pump hums, but no spray | Empty reservoir, clogged filter/nozzles, or disconnected/cracked hose. |
| Weak or uneven spray | Failing pump motor, partially clogged lines, or low fluid. |
| Fluid leaking under car | Cracked pump housing or dried-out reservoir grommet. |
Choosing the Right Aftermarket Pump
For a vehicle like the 1984-1999 Mustang, using an aftermarket windshield washer pump is a smart and budget-friendly choice. The original OEM parts can be expensive and hard to find, and the technology is simple enough that aftermarket brands provide excellent, reliable alternatives. Both ACDelco and Trico are well-known brands that produce quality replacement parts designed to meet or exceed original specifications.
There is no significant quality difference between these top-tier aftermarket brands for this specific part. Both offer a direct fit and reliable performance, making either a solid choice for your Mustang. The decision often comes down to price and availability.
Pro Tip: When replacing the pump, it's a good idea to also replace the small rubber grommet that seals the pump to the reservoir. These are often included with new pumps and prevent leaks.
Installation: A Simple DIY Job
Replacing the washer pump on a Fox Body (1984-1993) or SN95 (1994-1999) Mustang is a straightforward job for most DIY mechanics. The pump is located at the bottom of the washer fluid reservoir, which is typically found in the engine bay on the driver's side inner fender. On some models, you may need to remove the plastic fender liner to get easy access. The process involves draining the reservoir, unplugging the electrical connector, pulling off the fluid hose, and simply pulling the old pump out of the reservoir. Installation is the reverse of removal.

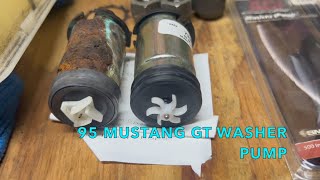

🎬 See a step-by-step guide for replacing the pump on SN95 Mustangs.Common Mistake: Before assuming the pump is bad, check for simple issues first. Ensure the reservoir is full, check the fuse for the washer circuit, and inspect the hoses for cracks or disconnections, especially where they connect to the nozzles under the hood.
🎬 Check out this quick DIY fix for common washer pump issues.Frequently Asked Questions (FAQ)
How do I test my old washer pump? 🎬 Watch this video to learn how to troubleshoot your pump motor.
If you can access the pump's electrical connector, you can use a multimeter to check for 12-volt power when a helper activates the washer switch. If power is present but the pump doesn't run, the pump has failed. If you hear the pump run but no fluid sprays, check for clogs by disconnecting the hose and seeing if fluid comes directly out of the pump.
Why did my washer pump fail?
The most common reason is simple old age. The internal electric motor wears out over time. Running the pump while the reservoir is empty can also cause it to wear out faster. Sometimes, debris or using plain water can lead to clogs or corrosion that damages the pump.
Is the pump for a 1989 Fox Body the same as a 1995 SN95?
Yes, the basic pump design was used across a wide range of Ford vehicles for many years. Aftermarket parts from brands like Trico and ACDelco often list compatibility from 1979 all the way to 1997, indicating the core part is interchangeable. Always verify the fit for your specific year before purchasing.
Are there any recalls for the washer pump on these Mustangs?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) specifically for windshield washer pump failure on 1984-1999 Ford Mustangs. Recalls found were for much newer Ford models and different issues.
Helpful Videos
Technical Specifications
OEM Part Numbers: E0AZ-17664-A F75Z-17664-AA
The pump is a small, 12V electric motor that press-fits into the bottom of the windshield washer fluid reservoir. It uses a simple two-pin electrical connector and has one outlet port for the washer fluid hose. The same base part number was used across many Ford models and years.
