A/C Compressor Replacement Guide for the 1985-1989 Chevrolet G20 Van
Get your classic Chevy G20's air conditioning blowing cold again by choosing the right A/C compressor.
- Always buy a complete A/C kit that includes a new compressor, accumulator/drier, and orifice tube.
- A new aftermarket compressor is a more reliable choice than a remanufactured unit for this vehicle.
- Thoroughly flushing the A/C system to remove old oil and debris is critical for the lifespan of the new compressor.
- Before buying parts, double-check that the compressor mounting bolts are tight, as loose hardware can cause a rattling noise.
Is Your G20's A/C Compressor Failing?
If your van's air conditioning is blowing warm air, the compressor is a likely suspect. These vans often used a GM R4 compressor, sometimes called a "pancake" compressor, which has a reputation for not lasting, especially rebuilt units. Before you assume the worst, check for other common issues like low refrigerant, a bad pressure switch, or even loose mounting bolts, which can cause a rattling noise that sounds like a bad compressor.
Symptoms of a Bad A/C Compressor:
- No Cold Air: The most obvious symptom is warm air blowing from the vents when the A/C is on.
- Strange Noises: Grinding, squealing, or a humming noise that changes pitch when the A/C is turned on can point to internal failure or a bad clutch bearing.
- Compressor Clutch Doesn't Engage: If the center of the compressor pulley doesn't spin when the A/C is on, the clutch may have failed or isn't receiving power.
- System Shuts Down: A compressor that works for a few minutes and then shuts off could be a sign of it overheating or other system issues.
- Leaking Refrigerant: While leaks can happen anywhere, the compressor seals can fail, leading to a loss of refrigerant and cooling performance.
Choosing the Right Aftermarket A/C Compressor
When replacing the compressor on your G20 🎬 Watch this step-by-step guide on replacing a Chevy van compressor., you have several options. Given the age of the vehicle, a brand-new aftermarket compressor is almost always a better choice than a remanufactured one, which can be unreliable.
Aftermarket Brand Tiers
| Brand | Quality & Reputation | Best For |
|---|---|---|
| ACDelco | As GM's official parts brand, ACDelco compressors are built to original factory specifications. They are considered a top-tier, reliable choice for long-term performance and proper fit. | Owners who want the closest thing to original quality and are willing to pay a bit more for peace of mind. |
| Global Parts (GPD) | GPD is a well-regarded aftermarket brand known for quality control and offering complete kits. Their parts are durability tested and designed to meet or exceed original equipment fit and function. | A solid balance of quality and value, especially when buying a complete kit. |
| Four Seasons | Four Seasons is one of the largest aftermarket suppliers, but owner reviews are mixed. Some have good luck with them as an affordable option, while others report early failures, earning them the nickname "Four Seizings." Success often depends on a flawless installation. | Budget-conscious repairs where the lower price is the main priority. |
Critical Replacement Rule: Always Replace The Kit
When an A/C compressor fails, it often sends small metal shavings throughout the system. If you only replace the compressor, this debris will destroy the new one quickly. To prevent this and to validate the part's warranty, you must also replace the A/C accumulator/drier and the orifice tube, and thoroughly flush the rest of the system 🎬 Learn how to properly flush a contaminated A/C system. before installing the new parts. Many brands sell complete kits that include all necessary components.
Frequently Asked Questions
Do I need a special compressor for an R134a conversion?
Your 1985-1989 G20 originally came with R12 refrigerant. All new compressors sold today are compatible with R134a refrigerant and the required PAG oil. You just need to ensure the rest of your system (like O-rings) is also prepared for the conversion.
🎬 See how to perform a proper R134a retrofit and replacement.Why did my new compressor fail after a few months?
The most common reason for a new compressor failing is contamination from the old one. If the system was not completely flushed and the accumulator and orifice tube were not replaced, debris left in the lines will destroy the new compressor. Another cause is an incorrect amount of refrigerant or oil.
Can I just replace the A/C clutch?
Sometimes, but it's often not worth it. If the clutch failed because the compressor itself was starting to seize, a new clutch will fail again shortly. Given the labor involved and the cost of a clutch kit, it is often more cost-effective and reliable in the long run to replace the entire compressor assembly.
What else must I replace with the compressor?
At a minimum, you must replace the A/C accumulator (also called a receiver/drier) and the orifice tube. These parts trap moisture and debris. Installing a new compressor without replacing them will void the warranty and lead to premature failure.
Helpful Videos
Technical Specifications

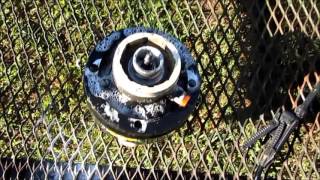

The original compressor for many 1985-1989 G20 vans was a General Motors/Harrison R4 compressor. The original system used R12 refrigerant. All new replacement compressors are compatible with R134a refrigerant and PAG oil.
