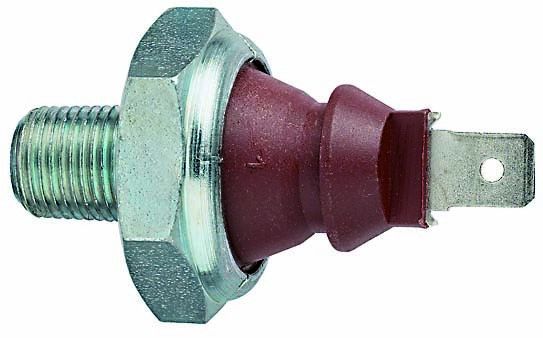

Volvo 245 Engine Oil Pressure Switch: A Guide for 1985-1989 Models
That flickering oil light on your dashboard is the number one reason owners replace this simple but critical sensor.
- A flickering oil light is a critical warning. Always verify actual oil pressure with a mechanical gauge before assuming it's just a bad switch.
- Inspect the wiring to the switch. On a 240, the wire often becomes brittle and shorts out, causing false warnings.
- For this part, quality aftermarket brands like Facet or Standard Ignition are reliable and cost-effective choices.
- Replacement is a simple DIY task that requires basic tools and can be done in under 30 minutes.
Is Your Oil Light Flickering? What It Means
A flickering or constantly illuminated oil pressure light is a common issue for Volvo 245 owners. While the oil pressure switch is a frequent suspect, it's crucial to understand what the light signifies. It is a warning of low oil pressure, which can destroy an engine quickly. Before replacing any parts, you must verify the engine's health.
Common Symptoms of a Failing Switch
- Flickering Oil Light: The light may flicker, especially at idle or during cornering. This can be caused by a failing switch, but also by old, frayed wiring or actual low oil pressure.
- Oil Light Stays On: If the oil level is full and the light remains on, the switch may be stuck in the 'on' position.
- No Oil Light on Startup: The oil light should illuminate for a moment when you turn the key before starting the engine. If it doesn't, the switch or the bulb may have failed.
- Visible Oil Leak: The switch itself can fail by developing a leak. You may see oil seeping from the plastic housing of the sensor or dripping from its location on the engine block.
A Very Common 240 Problem: The Wiring
On these classic Volvos, the engine bay wiring becomes brittle with age. The single wire leading to the oil pressure switch is often the culprit. Heat and oil can cause the insulation to crack and flake off, allowing the wire to ground itself against the engine block. This will cause the oil light to flicker or stay on, mimicking a bad switch or low oil pressure. Always inspect this wire carefully and consider running a new wire as a first step.
Choosing the Right Aftermarket Part
For a simple part like an oil pressure switch, a quality aftermarket unit is a perfectly acceptable and cost-effective choice. The original switches were often made by VDO, a brand still trusted by many Volvo enthusiasts. When shopping aftermarket, brands generally fall into a few tiers based on reputation and price.
| Brand Tier | Available Brands | General Assessment |
|---|---|---|
| Standard / Trusted | Facet, Standard Ignition | These brands have a long-standing reputation for producing reliable electronic parts that meet or exceed original specifications. They are a solid, dependable choice for a daily driver. |
| Economy | URO Parts, Global Parts | URO Parts are well-known in the European car community for being a budget-friendly option. For a simple switch like this, they are often adequate. However, some owners have reported shorter lifespans with their electronic components, so it may be wise to buy a spare. Less information is available for Global Parts sensors. |
| Other Available | Calorstat, Rostra Powertrain | These brands are also available, but have less specific feedback within the classic Volvo community for this particular part. |
Installation and Location
The oil pressure switch is located on the passenger side of the engine block, just to the right of the oil filter and below the alternator. Replacement is straightforward for a DIY mechanic.
- Disconnect the single electrical wire from the switch.
- Using a deep socket (often 24mm), unscrew the old switch from the engine block. Have a rag ready, as a small amount of oil may drip out.
- Screw the new switch into place. Do not overtighten.
- Reconnect the electrical wire.
- Start the engine and check for leaks. The oil light should go out within a few seconds.
Frequently Asked Questions (FAQ)
Can I drive with the oil pressure light on?
No. If the light is on, you should pull over as soon as it is safe, turn off the engine, and check the oil level. If the light is on due to actual low pressure, continuing to drive can destroy your engine in minutes.
Is a flickering oil light always a bad switch?
No. On a Volvo 245, it is very commonly a sign of old, degraded wiring shorting to the engine block. It can also be a sign of a worn oil pump, clogged oil pickup tube, or other serious internal engine issues. Always investigate the true cause.
Do I need to drain the oil to replace the switch?
No, it is not necessary to drain all the engine oil. The switch is located high enough on the block that only a small amount of oil will spill when you remove it.
What is the difference between an oil pressure switch and a sender?
An oil pressure switch, like the one for the warning light in your 245, is a simple on/off device. An oil pressure sender (or sending unit) is a more complex sensor that provides a variable signal to operate an oil pressure gauge, which shows the actual pressure reading.
Technical Specifications
OEM Part Numbers: 1347003 1218340
Thread Size: M14x1.5
