Ford Bronco Electric Fuel Pump Guide for 1985-1990 Models
Everything you need to know before replacing the fuel pump in your 1985-1990 Ford Bronco.
- Your Bronco has two fuel pumps: a low-pressure one in the tank and a high-pressure one on the frame rail.
- Always check the fuel pump relay first; it's a common failure point and much cheaper to fix.
- For reliability, choose a premium aftermarket brand like Bosch or Delphi to avoid repeating the difficult installation.
- If you have dual tanks and the front one overflows, you need to replace the front tank's fuel pump assembly.
Understanding Your Bronco's Unique Fuel System
If you have a fuel-injected 1985-1990 Bronco, you have two electric fuel pumps, not one. There is a low-pressure lift pump inside the gas tank and a high-pressure pump on the driver's side frame rail. Both must work correctly for the truck to run right. When one fails, it can cause symptoms that seem confusing. It's also common for these trucks to have dual fuel tanks, which adds a selector valve and another in-tank pump, further complicating the system.
Symptoms of a Failing Fuel Pump

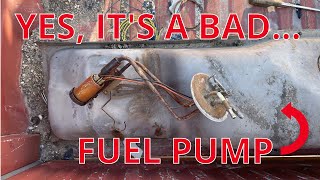

A bad fuel pump, whether it's the one in the tank or on the frame, will starve the engine of fuel. Before you assume the pump is bad, always 🎬 Watch: How to diagnose a bad fuel pump on this era Ford. check the fuel pump relay and inertia switch first, as these are common and cheaper failure points. Look for these signs:
- Engine Cranks, But Won't Start: You can hear the engine trying to turn over, but it never fires up because there's no fuel.
- Sudden Stalling: The engine dies for no reason while you're driving and may or may not restart.
- Loss of Power: The Bronco feels weak, struggles to go up hills, or hesitates when you press the gas pedal.
- Loud Whining Noise: You may hear a loud, constant buzzing or whining from the fuel tank area, indicating a failing in-tank pump.
- Front Tank Overflows: On dual-tank models, a failed check valve in the front pump assembly can cause fuel from the rear tank to be pumped into the front tank, making it overflow.
Check This First: The Fuel Pump Relay
A faulty fuel pump relay is a very common problem on these Broncos and can mimic the symptoms of a dead fuel pump. This is a small, inexpensive part that is much easier to replace than a fuel pump. Always consider testing or replacing the relay before tackling a fuel pump job.
Choosing the Right Aftermarket Fuel Pump
The original Motorcraft pumps for this generation are often obsolete and hard to find. You will be choosing from aftermarket brands. Since replacing the in-tank pump requires dropping the fuel tank—a big job—it's wise to invest in a quality part to avoid doing the work twice.
Brand Quality Tiers
- Premium Brands (Bosch, Delphi): These brands are widely considered OEM-quality suppliers. Mechanics and owners on forums consistently recommend them for reliability and longevity, even though they cost more. Bosch was a manufacturer for original Ford pumps, and Delphi is a trusted OEM for GM with a strong reputation.
- Standard Brands (AutoBest, GMB): These brands offer a more budget-friendly option. Reviews for GMB are mixed, with some users reporting early failures. AutoBest is presented as a direct-fit replacement that is vigorously tested. These can be a decent choice if budget is the primary concern, but may carry a higher risk of premature failure compared to premium brands.
- Specialty Brands (Mr. Gasket): Brands like Mr. Gasket are well-known in the performance and hot rod communities. Their pumps are often universal and may require modification to fit. They are typically used for custom or carbureted applications, not as a direct replacement for your Bronco's EFI system.
Pro Tip: When replacing the in-tank pump, it's a good idea to replace the fuel strainer (sock) at the same time. Also, inspect the wiring connectors for corrosion or damage, as bad wiring can cause the new pump to fail.
Cost of Replacing a Ford Bronco Fuel Pump
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump (In-tank or Frame) | $52.98 - $139.87 |
| Shop Labor (In-Tank Pump) | $300 - $500 |
| Shop Labor (Frame-Mounted Pump) | $100 - $200 |
Frequently Asked Questions
Do I need to replace both fuel pumps at once?
Not necessarily. You should first diagnose which pump has failed. However, if the in-tank pump fails and you have a high-mileage vehicle, the frame-mounted pump may not be far behind. Some owners choose to replace both for peace of mind, especially given the labor involved in accessing the in-tank unit.
What is a TSB and are there any for my Bronco's fuel pump?
A Technical Service Bulletin (TSB) is a notice from the manufacturer to technicians about common problems and fixes. For 1990 Broncos, Ford issued TSBs #99129 and #9873 regarding a whine or buzz from the fuel pump being heard through the radio speakers. This indicates an electrical interference issue but doesn't mean the pump is failing. No safety recalls are active for the 1985-1990 Bronco fuel pumps.
Is it hard to replace the fuel pump myself?

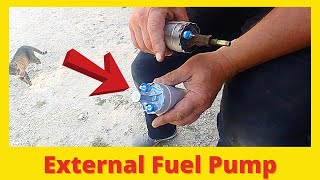

The frame-mounted pump is manageable for a DIYer with some 🎬 See this walkthrough for replacing the external frame-mounted pump. experience. The in-tank pump is a difficult job because it requires safely draining and dropping the fuel tank. This can be heavy, awkward, and dangerous due to gasoline fumes. It is rated as a difficult DIY task.
My front gas tank overflows. Is this a fuel pump problem?
Yes, this is a known issue on dual-tank Fords of this era. It is caused by a failed check valve in the front tank's fuel pump assembly. When you are running on the rear tank, the fuel return line sends excess fuel back to the front tank instead of the rear, causing it to overfill. The only fix is to replace the entire fuel pump assembly 🎬 Watch: Why your front tank overflows and how to fix it. in the front tank.

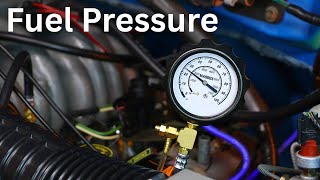

Helpful Videos
Technical Specifications
System Type: Dual-pump system (in-tank low-pressure, frame-mounted high-pressure). Common issues include fuel pump relay failure and check valve failure on dual-tank models. TSBs #99129 and #9873 were issued for fuel pump noise interfering with the radio on 1990 models.
