A Comprehensive Guide to Replacing Fuel Injectors on Your 1985-1992 Ford Ranger
Diagnose failing fuel injectors and choose the right aftermarket replacements to restore your Ranger's performance.
- Symptoms of bad injectors include rough idle, poor acceleration, increased fuel use, and a raw fuel smell.
- It is strongly recommended to replace all fuel injectors as a set to ensure balanced engine performance.
- Always install new, lubricated O-rings to prevent dangerous fuel leaks.
- For this vehicle, a quality aftermarket brand like Standard Ignition offers a reliable repair without the high cost of OEM parts.
Is Your Ranger Showing Signs of Bad Fuel Injectors?
A failing fuel injector can cause noticeable problems. Because these trucks are from an era before complex onboard diagnostics, paying attention to how your engine runs is key. 🎬 Watch: How to test for a failed fuel injector Look out for these common symptoms:
- Rough Idle: The engine may shake or vibrate when you're stopped at a light.
- Engine Misfires: You might feel a stutter or hesitation during acceleration because a cylinder isn't firing correctly.
- Poor Acceleration: If your Ranger feels sluggish and lacks power, it could be starved for fuel from a clogged injector.
- Worse Fuel Economy: A leaking injector can dump too much fuel into the engine, forcing you to fill up more often.
- Fuel Smell: A distinct gasoline odor around your truck could indicate an external leak from a cracked injector body or a bad O-ring seal, which is a serious fire hazard.
- Hard Starting: Leaky injectors can flood the engine after it's shut off, making it difficult to restart when warm.
Safety Warning: Fuel Leaks
If you smell gasoline, investigate immediately. A fuel leak in the engine bay is a significant fire risk. Do not continue to drive the vehicle if a leak is confirmed.
Choosing the Right Aftermarket Fuel Injector

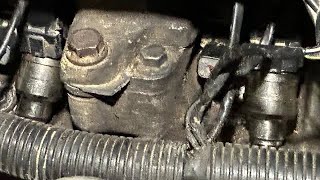

For a classic truck like the 1985-1992 Ranger, you don't need to hunt down expensive New Old Stock (NOS) OEM parts. Quality aftermarket injectors will restore original performance. It is critical to buy injectors that are correct for your specific engine (e.g., 2.3L, 🎬 See this 2.3L fuel injector replacement walkthrough 2.9L, 3.0L, or 4.0L), as they are not interchangeable. Here’s a breakdown of the typical brand tiers available:
Brand Quality Tiers
- Standard Replacement (Standard Ignition, Accel): Brands like Standard Motor Products (SMP) are well-regarded in the aftermarket for providing reliable, OEM-spec parts. Accel is often marketed as a performance brand but is generally considered a standard replacement option for this application; reviews suggest quality can be inconsistent, but they are an affordable choice. For a daily-driven Ranger, these brands offer a good balance of quality and value.
- Economy (Replacement, Store Brands): These are the most budget-friendly options. While they can work, their long-term durability and consistency in flow rate may not match that of more established brands. They may be a viable option for a short-term fix or a tight budget.
- Remanufactured (GBR Fuel Injection): While GBR was listed as an available brand, it's important to know they specialize in remanufactured injectors. Owner reviews are very mixed, with some reporting injectors that were faulty out of the box or failed shortly after installation, sometimes getting stuck open and flooding the engine with fuel. Buying remanufactured injectors is a gamble, and new aftermarket parts are often a safer choice.
Pro Tip: Replace as a Set
If one injector has failed due to age or clogging, the others are likely not far behind. To ensure balanced fuel delivery and save on future labor, it is highly recommended to replace all injectors at the same time. Also, purchase a new set of O-rings; they are essential for preventing fuel leaks and are often sold with new injectors.
What to Expect for Costs
The price for fuel injectors can vary widely based on the brand and whether you buy them individually or as a set.
| Part or Service | Estimated Cost |
|---|---|
| Single New Aftermarket Injector | $47 - $80 |
| Full Set (4 or 6) of Aftermarket Injectors | $180 - $525 |
| Shop Labor for Installation | $200 - $450 |
Frequently Asked Questions
Can I replace just one bad fuel injector?
Yes, but it's not recommended. Fuel injectors wear out at a similar rate. Replacing only one can lead to an imbalanced engine, and you may find yourself repeating the repair for another cylinder soon after. Replacing them as a set ensures all cylinders get the same amount of fuel for smooth operation.
Do I need special tools for the job?

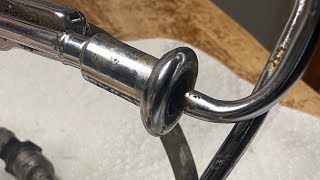

For most 1985-1992 Rangers, standard hand tools (sockets, wrenches) are sufficient. A fuel line disconnect tool may be needed 🎬 Watch: How to remove fuel lines without special tools for the fuel rail, and it's wise to have a fire extinguisher nearby as a precaution. On V6 models, removing the upper intake manifold is often required to access the fuel rail.
What are the O-rings and why are they important?
Each injector has two rubber O-rings that seal it against the fuel rail and the intake manifold. These seals prevent high-pressure fuel from leaking out and unmetered air from leaking in. Always replace the O-rings with new ones and lubricate them with a bit of clean motor oil before installation to ensure a good seal and prevent tearing. Never use silicone grease, as it can clog the injector.
Are there any recalls for my Ranger's fuel injectors?
No, there are no active or past recalls from Ford or NHTSA specifically for fuel injector failure on the 1985-1992 Ford Ranger models. Any issues you experience are related to the age and wear of the components.
Helpful Videos
Technical Specifications
OEM Part Numbers: E67E-B1B E6SZ-9F593-A E5TZ9F593A E7TZ9F593B 0280150710 0280150727
Injectors are engine-specific (2.3L I4, 2.9L V6, 3.0L V6, 4.0L V6). Ensure the replacement part matches your engine type. Resistance for injectors on this vehicle should be between 11 and 18 ohms.
