Chevrolet Cavalier Engine Timing Cover Gasket Set Guide (1985-1995)
Leaking oil from the front of your Cavalier's engine? Your timing cover gasket may be the problem.
- The main symptom of a bad timing cover gasket is an oil leak from the front of the engine.
- You must buy the correct gasket set for your specific engine (2.0L, 2.2L, 2.8L, or 3.1L).
- Victor Reinz is a premium aftermarket brand that offers OEM-level quality for this repair.
- While replacing the gasket, it is a smart move to also replace the front crankshaft seal, which is usually included in the set.
Is Your 1985-1995 Cavalier Leaking Oil?
A common source of oil leaks on older cars like the 1985-1995 Chevrolet Cavalier is a bad timing cover gasket. Over time, the gasket material gets hard and brittle from heat and age. When this happens, it can shrink and crack, allowing oil to seep out from the front of your engine. You might see oil drips on the ground under the front of the car, or notice the front of the engine is coated in a greasy film.
Symptoms of a Failing Timing Cover Gasket
The most obvious sign is an oil leak. However, it can be tricky to pinpoint. The engine's belts and fan can spread the leaking oil around, making it look like the leak is coming from somewhere else. To be sure, you may need to clean the engine with a degreaser and then run it for a short time to spot where the fresh oil appears.
- Oil spots on the ground: Usually seen under the front part of the engine.
- Low engine oil level: You may find yourself needing to add oil between changes.
- Burning oil smell: Oil dripping onto the hot exhaust can cause a distinct smell.
- Visible grime: A coating of oily dirt on the front of the engine, around the main pulleys.
Engine-Specific Parts are Crucial
The 1985-1995 Cavalier came with several different engines, including the 2.0L 4-cylinder, 2.2L 4-cylinder, 2.8L V6, and 3.1L V6. The timing cover gasket set is different for each engine. Always confirm your Cavalier's specific engine before ordering a part to ensure you get the correct set.
Choosing the Right Aftermarket Gasket Set
You don't need to buy an expensive OEM part from the dealer. Aftermarket brands offer good quality, often at a much better price. For your Cavalier, you'll find brands that fit different budgets and quality needs.
Brand Quality Tiers
- Premium Aftermarket (Reinz, Victor Gaskets): Victor Reinz is widely considered an OEM-quality brand by mechanics. They are known for using high-quality materials that provide a reliable, long-lasting seal. If you want to do the job once and not worry about it again, this is your best choice.
- Standard / Economy (Apex): Apex is a budget-friendly option. While some users report success with these gaskets, they are generally seen as a lower-tier choice. For an older vehicle or if you are on a tight budget, Apex can be a viable option, but the long-term durability may not match that of a premium brand.
Pro Tip: While you are replacing the timing cover gasket, it is a good time to also replace the front crankshaft seal (often called a timing cover seal). Most quality gasket sets will include this seal. This can save you from having to do a similar repair down the road.
Aftermarket Timing Cover Gasket Set Cost for 1985-1995 Cavalier
| Brand Tier | Typical Price Range |
|---|---|
| Economy (e.g., Apex) | $9.70 - $18.00 |
| Premium (e.g., Reinz, Victor Gaskets) | $19.00 - $40.11 |
Prices are estimates and can vary based on your specific engine and the retailer.
Frequently Asked Questions
Is there a recall for the Cavalier timing cover gasket?
No, there are no recalls or common Technical Service Bulletins (TSBs) from Chevrolet for timing cover gasket issues on the 1985-1995 Cavalier. Failures are typically due to the age and mileage of the vehicle.
Is this a difficult job to do myself?
For a DIY mechanic with some experience, this is a manageable job. It does not require removing the engine, but you will need to remove the accessory belts, belt tensioner, and the main crankshaft pulley (harmonic balancer). This requires a special puller tool. If you are not comfortable with that, it's best to leave it to a professional.
Should I use sealant with the new gasket?
Follow the instructions included with your gasket set. Some gaskets are designed to be installed dry, while others may require a small amount of RTV sealant at specific points, like where the timing cover meets the oil pan or cylinder head. Using sealant where it's not required can sometimes cause the gasket to slip and leak.
What is the difference between a timing chain and a timing belt?
A timing chain is a metal chain that runs inside the engine and is lubricated by engine oil. A timing belt is a rubber belt that runs outside the engine and is not lubricated. All engines offered in the 1985-1995 Cavalier use a timing chain, which is why they have a timing cover that can leak oil.
Technical Specifications

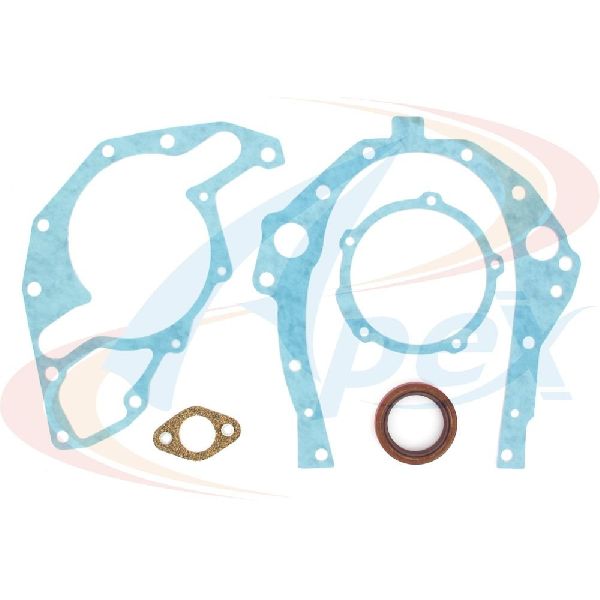

OEM Part Numbers: 10103620 10189276
Set components vary by engine. All sets for this vehicle are for engines with timing chains. Most sets include the main timing cover gasket, front crankshaft seal, and sometimes water pump gaskets if applicable to the engine design.
