Engine Oil Pan Replacement Guide for the 1986-1992 GMC Jimmy
Leaking oil from your GMC Jimmy? Here’s what you need to know before you buy a new engine oil pan.
- The most common cause of failure for the original oil pan is rust, leading to pinhole leaks.
- Replacement is a difficult job, especially on 4x4 models, as the engine must be lifted for clearance.
- Quality aftermarket brands like Dorman, Spectra, and ATP often provide a more durable part with better corrosion resistance than the original.
- Always replace the oil pan gasket at the same time as the pan for a complete, leak-free repair.
Is Your GMC Jimmy's Oil Pan Failing?
For a truck of this era, the engine oil pan is a common source of leaks. The original pans are made of stamped steel, which is prone to failure from rust or physical damage. Understanding the signs of a bad oil pan can help you decide if it's time for a replacement.
Common Failure Symptoms
- Oil Puddles: The most obvious sign is finding dark spots or puddles of oil on the ground where you park.
- Visible Rust or Damage: Look under your Jimmy. If the oil pan is covered in rust, especially with wet-looking, grimy areas, it's likely leaking through pinholes. Sometimes road debris can hit the pan and cause a dent or crack.
- Low Oil Level: If you constantly have to add oil or your oil light flickers, you have a leak somewhere. While it could be another gasket, the oil pan is a very common culprit on these trucks.
- Burning Oil Smell: Oil leaking from the pan can drip onto the hot exhaust pipes, creating a distinct burning smell while you drive.
Why Do They Fail?
The number one cause of oil pan failure on the 1986-1992 GMC Jimmy is rust. Decades of exposure to moisture, and especially road salt in winter climates, causes the original steel pan to corrode and develop pinhole leaks. The second most common cause is a degraded oil pan gasket, which can dry out, crack, and fail over time, allowing oil to seep out between the pan and the engine block.

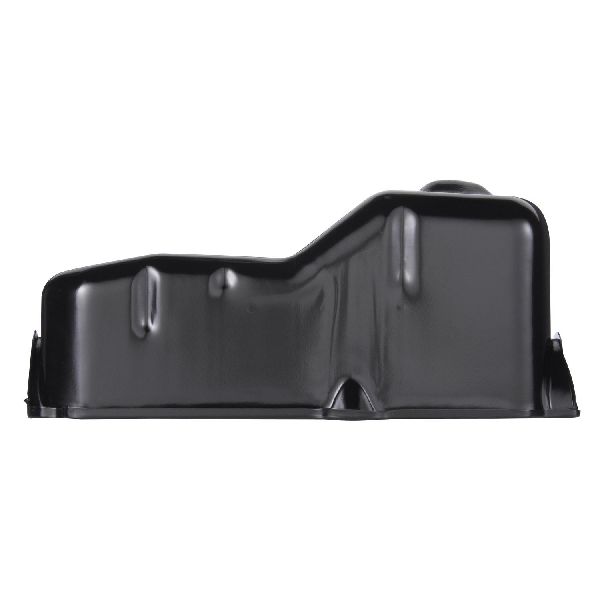

Choosing the Right Aftermarket Oil Pan
Since new original equipment (OEM) pans are generally not available for this vehicle, the aftermarket is your only option. Fortunately, many aftermarket brands offer quality replacements that often feature better corrosion protection than the original part.
Brand Quality Tiers
- Trusted Aftermarket (Dorman, Spectra, ATP/Pioneer): These brands are well-known and generally considered reliable replacements. Forum discussions show that owners have had good experiences, often noting that these pans have durable coatings and are sometimes made from thicker steel than the original. An ATP pan was reported by one user to have lasted over 10 years without rusting. Dorman and Spectra are also frequently recommended as solid, leak-free options.
- Economy (Skyward and other value brands): While less information is available on brands like Skyward, they can provide a functional replacement at a lower price point. These are suitable for budget-conscious repairs, but may not feature the same heavy-duty coatings or materials as the more established brands.
Replacement Cost
The cost to replace the oil pan on a 1986-1992 GMC Jimmy is mostly labor. The part itself is affordable, but the job is difficult, especially on 4WD models where the front differential is in the way.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Pan | $65 - $261 |
| Shop Labor | $400 - $750 |
| Total Estimated Cost | $465 - $1,011 |
Cost estimates are for reference only and will vary based on your location, vehicle condition, and the repair shop's labor rates.
Frequently Asked Questions
Why is replacing the oil pan on a 4x4 Jimmy so difficult?
On 4x4 models, the front differential and crossmember block access to the oil pan. To remove it, a mechanic must unbolt the motor mounts and lift the engine several inches to create enough clearance to slide the pan out. This makes the job significantly more time-consuming and labor-intensive than on a 2WD model.
Can I replace the oil pan myself?
This is a challenging job recommended for experienced DIY mechanics. It requires proper tools, including an engine hoist or a floor jack to lift the engine safely. You will also need jack stands to secure the vehicle. Due to the complexity and safety risks of lifting the engine, many owners choose to have a professional shop perform the work.
Is the leak from the pan or just the gasket?
It can be hard to tell. If the pan is visibly rusted through and wet with oil, the pan itself has failed. If the pan looks solid but oil is seeping from the edges where it meets the engine, the gasket is likely the problem. However, given the age of the vehicle and the low cost of the pan, it is almost always recommended to replace both the pan and the gasket at the same time.
Are there any recalls for the oil pan on my GMC Jimmy?
No, there are no recalls or technical service bulletins (TSBs) issued by the NHTSA specifically for the engine oil pan on the 1986-1992 GMC Jimmy.
Technical Specifications
Material: Stamped Steel Sump Location: Rear Engines: 2.8L V6, 4.3L V6 Drive Types: 2WD, 4WD (Note: Part may be the same but replacement procedure differs)
