A Practical Guide to the 1986-1993 Toyota Corolla Ignition Coil
If your classic Corolla is misfiring or running rough, a failing ignition coil is a likely suspect—here's how to choose the right replacement.
- A failing coil on this Corolla will cause engine-wide issues like misfiring, stalling, and rough idling.
- Replacement is simple and DIY-friendly, located inside the distributor and requiring basic tools.
- Choosing a premium aftermarket brand like Delphi, Beck Arnley, or Standard Ignition offers a reliable repair without the high cost of an OEM part.
- It is best practice to also replace the distributor cap, rotor, and spark plugs when you install a new coil.
Signs of a Failing Ignition Coil in Your Corolla
When the ignition coil in your 1986-1993 Corolla starts to fail, the signs are usually hard to miss. Because this era of Corolla uses a single coil for all cylinders, a failure will affect the entire engine, not just one cylinder. 🎬 See how to diagnose a no-spark condition and replace the coil. You will likely notice one or more of these symptoms:
- Engine Misfires or Stumbling: The engine may sputter, hesitate, or jerk during acceleration because the cylinders aren't firing correctly.
- Rough Idle: When stopped, the engine may run unevenly and vibrate more than usual.
- Difficulty Starting: The engine may take longer than normal to crank and start, or it might not start at all.
- Stalling: The engine could stall unexpectedly, especially when idling or at low speeds.
- Reduced Power and Fuel Economy: Your car may feel sluggish, especially going uphill, and you might notice you're filling up the gas tank more often.
- Backfiring: In some cases, unburned fuel can enter the exhaust system and ignite, causing a loud popping or banging sound. 🎬 Watch: A quick guide to common bad ignition coil symptoms. This can damage your catalytic converter over time.
Choosing the Right Aftermarket Ignition Coil
For a classic vehicle like the 1986-1993 Corolla, you have a wide range of aftermarket options. The original equipment (OEM) supplier for many Toyota ignition parts is Denso. While buying an OEM part is always a safe choice, several aftermarket brands offer excellent quality, sometimes even providing the same part as the OEM in a different box.
Aftermarket Brand Tiers
| Tier | Brands | General Assessment |
|---|---|---|
| Premium Aftermarket | Delphi, Beck Arnley, Standard Ignition (SMP), Hella | These brands are known for engineering parts to meet or exceed OE specifications. Delphi is a major OE supplier itself. Beck Arnley is well-known for often repackaging original equipment parts. Standard Ignition's regular line (red box) is highly regarded, though their economy 'T-Series' should be avoided. |
| Standard Aftermarket | Spectra, Walker Products | These brands provide a good balance of quality and value. They are reliable replacements for a daily driver and a significant step up from no-name economy parts. |
| Economy Aftermarket | DriveWire, Global Parts, Skyward, Accel | These are the most budget-friendly options. While they can get your car running, their long-term durability and performance may not match that of higher-tier brands. They can be a viable choice if the budget is the primary concern. |
Pro Tip: When replacing ignition parts on a Toyota, many experienced mechanics and owners recommend sticking with known, quality brands. For a critical component like the ignition coil, spending a little more on a premium aftermarket brand like Delphi or Beck Arnley can prevent future headaches.
Known Issues, Recalls, or TSBs
Searches of the National Highway Traffic Safety Administration (NHTSA) database and other technical resources show no specific recalls or technical service bulletins (TSBs) for the ignition coil on the 1986-1993 Toyota Corolla. Any issues you experience are likely due to the age and normal wear of the component rather than a specific manufacturing defect.
Frequently Asked Questions (FAQ)
Is an OEM coil much better than aftermarket for my Corolla?
For this generation, a premium aftermarket coil from a brand like Delphi, Beck Arnley, or Standard Ignition is often just as good as the OEM part. Denso was the original supplier for Toyota, and you can sometimes buy the same part under the Denso brand for less than the Toyota-branded part. The key is to avoid unproven, low-cost brands, which can be unreliable.
How hard is it to replace the ignition coil myself?
The replacement is very straightforward for a DIY mechanic. The coil is located inside the distributor. The process involves removing the distributor cap, disconnecting two small wires and the main coil wire, and unbolting the coil itself. It typically requires only basic hand tools and can be done in under an hour.
🎬 Watch: Step-by-step 4A-FE ignition coil replacement walkthrough.Should I replace my spark plugs and distributor cap at the same time?
Yes, it's highly recommended. A failing ignition coil can put stress on other ignition components, and worn spark plugs or a faulty distributor cap/rotor can cause a new coil to fail prematurely. Replacing the coil, cap, rotor, and spark plugs together is a great way to ensure a complete and lasting repair.
What is the most common mistake when ordering this part?
The most common mistake is not verifying the engine type. While most 1986-1993 Corollas use a similar distributor-mounted ignition coil, there can be slight variations between engines like the 4A-F, 4A-FE, and 4A-GE. Always confirm the part fits your specific engine before ordering. Using your vehicle's VIN is the best way to guarantee a match.
Helpful Videos
![[026] Prueba básica al distribuidor 4AFE inyectado 5+2 líneas](https://img.youtube.com/vi/QZ-RwcTWnKo/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 90919-02135 90919-02164 90919-02113

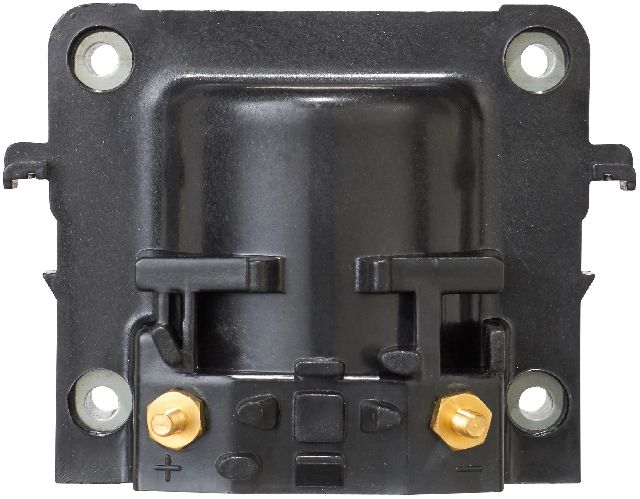

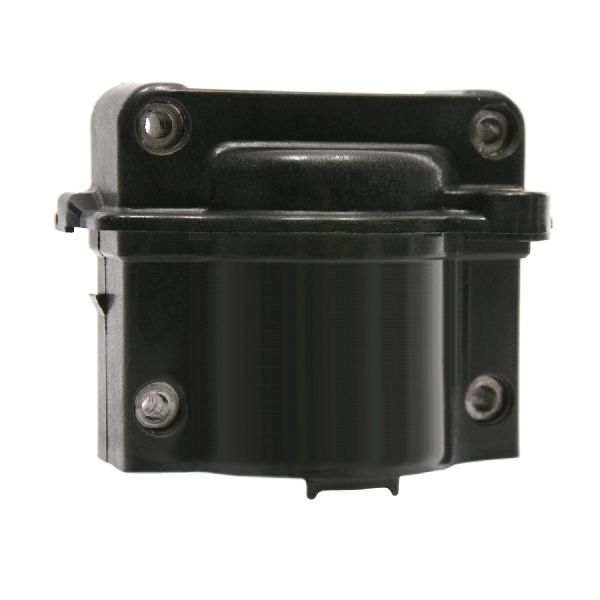

This vehicle uses a single, can-style ignition coil that is mounted inside the distributor assembly. It is not a modern coil-on-plug system.
