Ford Mustang Engine Timing Set Guide for 1986-1996 Models
Keep your Mustang's 5.0L V8 or 3.8L V6 running strong with the right timing set.
- A rattling noise from the front of the engine on startup is the most common sign of a worn timing chain.
- For this generation of Mustang, there are no major recalls or TSBs for timing chain failure; issues are typically due to normal wear and tear.
- When replacing the timing set, it is highly recommended to also replace the timing cover gasket and front crankshaft seal to prevent future leaks.
- High-quality aftermarket brands like Ford Performance, Cloyes, and Melling are trusted choices for both stock and performance applications.
Understanding Your Mustang's Timing Set
The 1986-1996 Ford Mustang, whether it's a Fox Body or an early SN95, relies on a simple and generally durable timing chain system for both the 5.0L V8 and 3.8L V6 engines. Unlike timing belts that require replacement at set intervals, a timing chain is designed to last the life of the engine. However, high mileage, infrequent oil changes, or high-performance use can cause the chain to stretch or the gear teeth to wear down. When this happens, camshaft and crankshaft timing can fall out of sync, leading to poor engine performance and potential damage.
Don't Ignore a Rattling Noise
🎬 Watch: 7 common signs of a failing timing chainA rattling sound from the front of your engine, especially on startup, is a classic sign of a loose timing chain. Ignoring this can lead to the chain skipping a tooth on a gear, which can cause poor running, or breaking entirely, which will cause the engine to stop running and may result in serious internal damage.
Choosing the Right Aftermarket Timing Set
When it's time for a replacement, you have several excellent aftermarket options. The quality of aftermarket parts for these popular engines is often as good as or even better than the original factory parts, especially for performance applications.
Brand Quality Tiers
- High-Performance/Heavy-Duty (Ford Performance, Edelbrock, Melling Select, Cloyes True Roller): These brands offer top-tier components, often featuring double-roller chains for increased strength and billet steel gears for durability under high-stress conditions. Ford Performance parts are essentially OEM-level upgrades. Cloyes and Melling are highly respected names in the timing world, and many professional mechanics trust them for their own builds. These are excellent choices for modified engines or for owners who want maximum peace of mind.
- OEM-Quality Standard Replacement (Cloyes, Melling, INA): For a daily driven or stock Mustang, the standard replacement lines from Cloyes and Melling offer excellent durability and fit. INA is a major OEM supplier and is known for high-quality components. These kits provide reliable, long-lasting performance for normal use.
- Value-Oriented (Skyward, Store Brands): Budget-friendly brands offer a cost-effective solution to get your Mustang back on the road. While they may not use the premium materials of the higher-end kits, they are designed to meet original factory specifications. For a stock engine under normal driving conditions, these can be a viable option, but some forum users have reported issues with excessive slack in lower-priced chains right out of the box.
Pro Tip: While You're In There...
Replacing the timing set requires removing the timing cover. This is the perfect time to also replace the timing cover gasket, front crankshaft seal, and inspect or replace the water pump. This preventative maintenance can save you from having to do the same labor-intensive job twice down the road.
🎬 See this full guide on timing chain and cover replacementKnown Issues, Recalls, and TSBs
For the 1986-1996 model years, there are no major recalls or widespread Technical Service Bulletins (TSBs) specifically for the timing chain and gear sets on the 5.0L V8 or 3.8L V6 engines. The primary issue is simply age- and mileage-related wear. The 3.8L V6 in 1994-1995 models was known for potential head gasket issues, but this is unrelated to the timing components. Failure is typically a gradual process of the chain stretching over many thousands of miles.
Frequently Asked Questions (FAQ)
What's the difference between a single and double roller timing chain?
A stock replacement chain is often a 'silent' or single roller type. A double roller chain, common in performance kits from brands like Edelbrock or Ford Performance, has two rows of rollers, making it significantly stronger and more stable at high RPMs. For a modified or high-performance 5.0L V8, a double roller is a recommended upgrade.
Do I need to replace my timing chain at a specific mileage?
No, unlike a timing belt, there is no set replacement interval. You should replace it only when you notice symptoms of wear, such as a startup rattle, unexplained loss of power, or if you can verify excessive slack in the chain.
Is a steel or cast iron cam gear better for my Mustang?
For most applications, including performance street use, a matched set with steel gears is preferred for its durability. It's most important to use the matched set of gears that comes in the kit you purchase. Never mix and match gears from different sets.
Can I replace just the chain and not the gears?
This is not recommended. A worn chain will have caused wear on the teeth of the sprockets, even if it's not visible. Installing a new chain on old sprockets will cause the new chain to wear out very quickly. Always replace the chain and sprockets as a complete set.

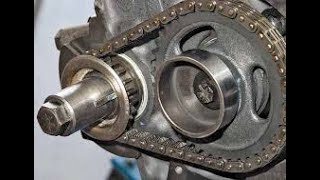

🎬 Watch: How to properly install a small block Ford timing setHelpful Videos
Technical Specifications
OEM Part Numbers: M-6268-B302
This guide covers timing sets for the Ford 5.0L (302ci) pushrod V8 and the 3.8L pushrod V6 engines. It does not apply to the later 4.6L modular engines which began in 1996. The 5.0L V8 uses a single timing chain with a camshaft sprocket and a crankshaft sprocket. The 3.8L V6 uses a similar single chain setup.
