Replacing Fuel Injectors on Your 1987 GMC V2500
A straightforward guide to understanding, diagnosing, and replacing the TBI fuel injectors in your classic GMC truck.
- Your 1987 V2500 uses a two-injector Throttle Body Injection (TBI) system, not modern multi-port injection.
- Symptoms like rough idle, hard starting, and hesitation are common but always check for vacuum leaks first.
- Replacing TBI injectors is a DIY-friendly job that takes less than two hours.
- For reliability, choose a quality aftermarket brand like Delphi and always replace injectors in pairs.
Symptoms of Failing Fuel Injectors
When the fuel injectors on your V2500 start to fail, the symptoms can often be mistaken for a bad carburetor or ignition problem. Because the TBI system is simple, issues are usually noticeable. You should suspect your injectors if you experience the following:
- Rough or Unstable Idle: The engine may hunt for a steady RPM at idle, surging up and down.
- Hard Starting: The engine may take longer to crank before it starts, or it may not start at all unless you pour fuel directly into the throttle body.
- Poor Fuel Economy: Leaking or inefficient injectors can cause the engine to run rich, burning more fuel than necessary.
- Hesitation or Stumbling: During acceleration, the truck may hesitate or stumble as the failing injectors struggle to deliver the correct amount of fuel.
- Smell of Raw Fuel: A strong gasoline smell, especially around the engine bay, can indicate an external leak from the injector body or O-rings.
Check for Vacuum Leaks First
Many symptoms of bad TBI injectors, especially a high or surging idle, can also be caused by vacuum leaks. Before replacing your injectors, it's wise to check all vacuum hoses and the throttle body base gasket for leaks, as this is a common issue on these trucks.
Choosing the Right Aftermarket Injectors
For a vehicle from 1987, finding original AC Delco parts can be challenging. Fortunately, the aftermarket offers several quality options. The key is to choose a reputable brand, as quality can vary significantly.
Brand Tiers for Your GMC V2500:
- Tier 1 (High Quality): Delphi is a well-respected brand that was often the original equipment manufacturer (OEM) for General Motors. Choosing Delphi is the closest you can get to original quality and ensures reliability and proper performance. They are a trusted choice for a direct replacement.
- Tier 2 (Good Quality): Standard Ignition (also known as Standard Motor Products or SMP) is a long-standing aftermarket company with a solid reputation for producing reliable replacement parts that meet or exceed original specifications.

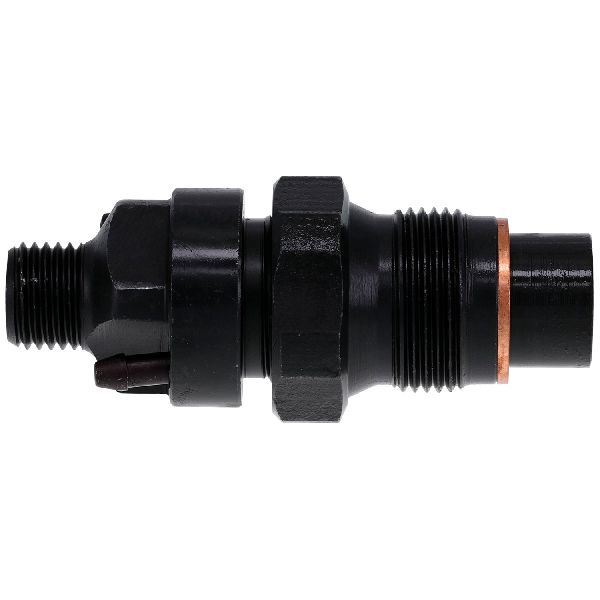

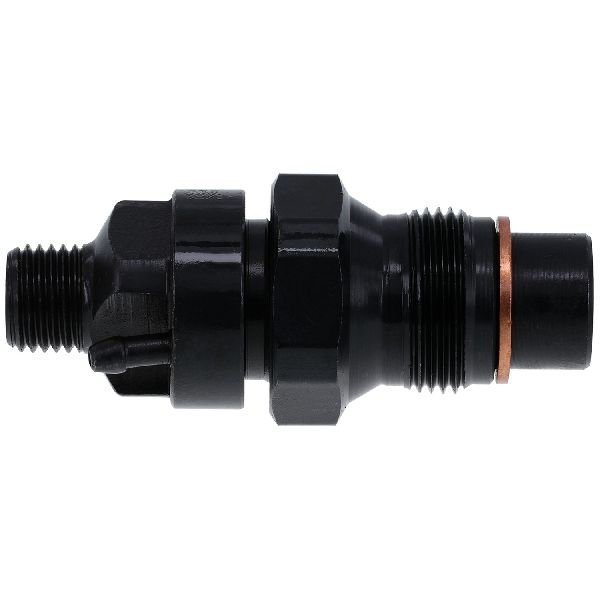

- Tier 3 (Budget-Focused): GBR Fuel Injection offers remanufactured injectors, which can be a cost-effective option. However, remanufactured parts can have inconsistent quality. Some users have reported issues with GBR injectors failing prematurely or being defective out of the box. This brand is best considered if budget is the primary concern and you are willing to accept a higher potential for warranty claims.
Always Replace in Pairs
Your TBI system uses two injectors that work together. To ensure a balanced fuel spray and prevent future issues, it is highly recommended that you replace both injectors at the same time. This ensures even wear and performance across the engine.
Cost of New Aftermarket Fuel Injectors
The cost for new aftermarket fuel injectors for a 1987 GMC V2500 is manageable, especially considering the job can often be done at home.
| Brand Tier | Typical Price Per Injector |
|---|---|
| Tier 1 (e.g., Delphi) | $120 - $225 |
| Tier 2 (e.g., Standard Ignition) | $80 - $150 |
| Tier 3 (e.g., GBR Remanufactured) | $55 - $90 |
Note: Prices are estimates and can vary by retailer and availability.
Frequently Asked Questions (FAQ)
How many fuel injectors does my 1987 GMC V2500 have?
Your truck has two fuel injectors. They are located together in a pod on top of the throttle body unit on the engine.
Is replacing TBI injectors a difficult job?
No, this is considered a relatively easy DIY job for someone with basic mechanical skills. The injectors are easily accessible on top of the engine. The process involves relieving fuel pressure, disconnecting the battery, removing the air cleaner, and then accessing the injector pod. The entire job can usually be done in 1-2 hours.
Can I just clean my old injectors?
While you can try cleaning the small filter screens on the bottom of the injectors, internal clogging or electrical failure cannot be fixed with cleaning. General Motors itself does not recommend injector cleaning as routine maintenance. Given the age of the vehicle and the reasonable cost of new parts, replacement is the most reliable solution.
What is the difference between TBI and modern fuel injection?
TBI uses one or two injectors to supply fuel for the entire engine, much like a carburetor. Modern systems, called Multi-Port Fuel Injection (MPFI) or Gasoline Direct Injection (GDI), use a separate injector for each cylinder, allowing for much more precise fuel control.
Technical Specifications
OEM Part Numbers: 17111875
System Type: Throttle Body Injection (TBI) Number of Injectors: 2 Location: Top of Throttle Body Assembly Required Fuel Pressure: 10-15 PSI
We Have This Part in Stock
