A Guide to Replacing the Starter Motor on a 1987-1989 GMC R2500
If your GMC R2500 won't crank, this guide will help you choose the right new starter to get your truck running again.
- Heat soak is a very common problem; upgrading to a gear-reduction mini-starter from a brand like Proform or Powermaster is the best fix.
- Before ordering, you must verify if your truck has a straight or staggered starter bolt pattern.
- Replacement is a simple DIY job that requires basic tools and can be done in under two hours.
- Always disconnect the negative battery terminal before beginning work to prevent electrical shorts.
Is Your Starter Failing? Common Symptoms
A bad starter gives clear warning signs. If you notice any of these, it's probably time for a replacement.
- Single Loud Click: You turn the key and hear one sharp "click" but the engine doesn't turn. This usually means the starter's solenoid is working, but the motor itself has failed.
- Slow, Labored Cranking: The engine turns over very slowly, like the battery is weak. If your battery is good, the starter is likely drawing too much power due to internal wear.
- Grinding Noise: A harsh grinding sound when you try to start the engine means the starter gear isn't meshing correctly with the flywheel. This can be caused by a bad starter or alignment issues.
- No Sound at All: If there's no click and no crank, the problem could be the starter, but you should also check your battery connections and ignition switch first. 🎬 Watch: How to diagnose a bad starter step-by-step.
- Hard Starting When Hot (Heat Soak): This is a very common issue on these trucks. The starter gets so hot from the nearby exhaust manifold that it won't work. After the truck cools down for 15-30 minutes, it starts normally again.
A Common Problem: Starter Heat Soak
The original starters on these GM trucks are large and sit close to the hot exhaust. Over time, this heat can damage the starter's internal components, causing it to fail when the engine is hot. While heat shields can help, the best long-term solution is often upgrading to a modern, gear-reduction mini-starter. These smaller starters are more efficient, create more torque, and are less affected by heat.
Choosing the Right Aftermarket Starter
For a truck from this era, a new aftermarket starter is the most common and practical choice. Original GM parts are hard to find and an aftermarket unit can be a significant upgrade. They are typically smaller, lighter, and more powerful than the stock unit.
Brand Quality Tiers
When shopping for a new starter, you'll find several brands available. They generally fall into a few categories based on their intended use.

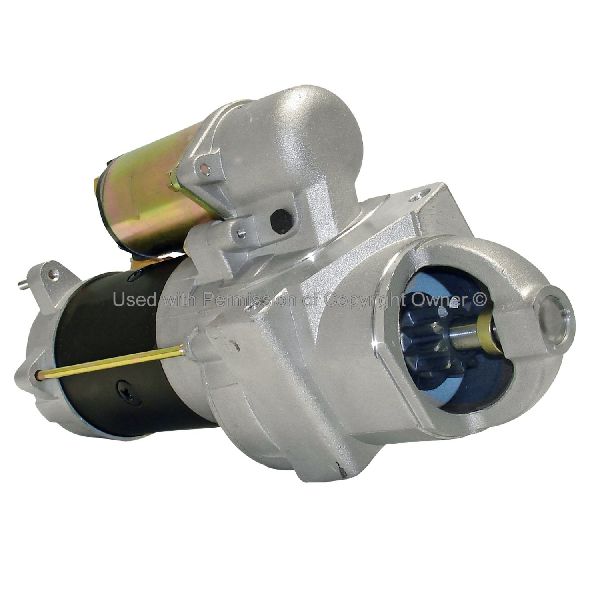

- Standard Replacement (Good): Brands like MPA (Motorcar Parts of America) offer reliable, new replacement starters that meet or exceed original factory specifications. These are a great choice for a daily driver that just needs a dependable, direct-fit part to get back on the road.
- High-Torque Upgrade (Better): Brands like Proform specialize in gear-reduction mini-starters. These are 100% new and provide more cranking power in a smaller package. They are an excellent upgrade to solve heat soak problems and provide faster, more reliable starts, especially if you have tight clearance from aftermarket headers.
- Premium High-Torque (Best): Powermaster is a top-tier brand known for powerful, durable, and often American-made starters. They are engineered for high-compression engines but are also a fantastic, robust solution for any R2500, ensuring fast cranking in all conditions and providing maximum reliability.
Check Your Bolt Pattern!
GM V8 engines of this era used two different starter mounting patterns: straight and staggered. Before you order, look under your truck at your current starter. The two mounting bolts will either be directly across from each other (straight) or offset (staggered). Ordering the wrong one will mean a trip back to the parts store.
How Much Does a New Starter Cost?
The cost will depend on the brand you choose and whether you do the work yourself. Installation is a straightforward job for a DIYer with basic tools.
🎬 See this walkthrough on changing a starter on these trucks.| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $95 - $434 |
| Shop Labor | $120 - $250 |
| Total Professional Installation | $215 - $684 |
Frequently Asked Questions
Do I need to shim the new starter?
Maybe. Shims are thin metal plates used to create the perfect gap between the starter gear and the flywheel. An incorrect gap can cause grinding or damage. Some aftermarket starters include shims. If you hear a grinding noise after installation, you may need to add or remove shims to get the alignment right.
🎬 Watch: How to shim a GM starter for perfect alignment.What is a gear-reduction mini-starter?
Unlike the old, large direct-drive starters, a gear-reduction starter uses internal gears to multiply the motor's torque. This allows for a smaller, lighter motor that spins the engine faster while drawing less power from the battery. They are more efficient and handle heat better, making them a popular upgrade.
Can I just replace the solenoid?
Yes, the solenoid can be replaced separately. However, if your starter motor is old, it may be worn as well. Given the reasonable cost of a complete new starter assembly, which includes a new motor and solenoid, most owners choose to replace the entire unit for peace of mind.
Is there a recall on the starter for my truck?
No, there are no open recalls or specific Technical Service Bulletins (TSBs) from GM or the NHTSA for starter motor issues on the 1987-1989 GMC R2500.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12338064 (Bolt) 14057993 (Shim) 1246249 (Shim)
Fitment is determined by engine type (gasoline V8 or diesel V8) and the starter mounting bolt pattern (straight or staggered). Most V8 applications use a 168-tooth flywheel.
