Chevrolet Cavalier Engine Oil Pressure Switch Guide (1987-1993)
Understand the common problems and replacement options for your Cavalier's oil pressure switch.
- A flickering or lit oil pressure light is the most common symptom, but always check your oil level first.
- A visible oil leak from the switch itself is a clear sign of failure.
- For this vehicle, a quality aftermarket brand like Standard Ignition is a reliable and cost-effective choice.
- Never ignore an oil pressure warning; confirm if the problem is the switch or a true low-pressure condition to avoid catastrophic engine damage.
Is Your Cavalier's Oil Light Flickering?
A flickering or constantly lit oil pressure light is a common issue on the 1987-1993 Chevrolet Cavalier, and the engine oil pressure switch is a frequent culprit. While an illuminated oil light can signal a serious internal engine problem, it's often just a failure of this inexpensive sensor. Another common symptom is a significant oil leak, as the switch's housing can crack or its seal can fail over time, leading to oil dripping onto the engine or ground. 🎬 Learn more about the warning signs of a bad sensor. In some cases, a faulty switch can even cause the engine to run rough or stall if it's tied into the fuel pump circuit.
Choosing the Right Aftermarket Switch
For a vehicle like the 1987-1993 Cavalier, original equipment (OEM) parts from GM or ACDelco can be difficult to find or expensive. Fortunately, aftermarket brands offer reliable and affordable alternatives. The key is to choose a brand with a reputation for quality electronics.
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Motor Products (SMP) are often considered top-tier in the aftermarket world. They frequently use high-quality materials, such as polyimide film diaphragms, which resist heat and prevent leaks. These parts undergo rigorous testing and are a solid choice for owners who want peace of mind and long-term reliability.
- Standard Aftermarket (e.g., Rostra Powertrain): Rostra is a known manufacturer of automotive electronics, including various sensors and switches. Their parts are designed as direct-fit replacements and are generally a dependable, mid-range option that balances cost and quality.
- Economy (e.g., Global Parts): Economy brands focus on providing a functional part at the lowest possible price point. While these switches meet basic requirements, they may not have the same long-term durability or use the same high-grade materials as more premium options. They can be a viable solution for a budget-conscious repair, but quality can be inconsistent.
Pro Tip: Check Your Engine
The 1987-1993 Cavalier was available with several engines, including the 2.0L 4-cylinder, 2.2L 4-cylinder, and the 2.8L/3.1L V6. The exact oil pressure switch can vary between these engines. Always confirm your specific engine before ordering a new part to ensure correct fitment.
Installation Overview
Replacing the oil pressure switch is a straightforward job for a DIY mechanic. The switch is typically located on the engine block, often near the oil filter. On V6 models, it may be on the lower front of the engine, while on 4-cylinder models it's often on the side of the block. The process involves disconnecting the single wire connector, using a special deep socket (an oil pressure switch socket) to unscrew the old unit, and then installing the new one. Be careful not to overtighten the new switch.
Warning: Don't Ignore the Oil Light
Never assume a lit oil pressure light is just a bad switch. Always check your engine oil level immediately. If the level is correct, listen for any unusual engine noises like ticking or knocking. If you hear any, do not drive the car. Tow it to a mechanic to have the actual oil pressure tested with a mechanical gauge. Driving with low oil pressure can destroy your engine in minutes.
Frequently Asked Questions
Where is the oil pressure switch on my 1987-1993 Cavalier?

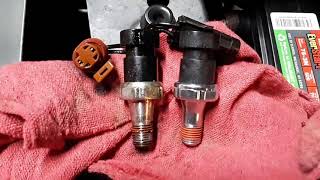

On V6 models (2.8L/3.1L), it's usually on the lower front of the engine block. 🎬 Watch a step-by-step replacement on a GM V6 engine. On 4-cylinder models (2.0L/2.2L), it is typically found on the side of the engine, often near the oil filter housing. Its exact location can vary slightly by year and engine, so it's best to trace the single wire leading to a small, screw-in sensor on the block.
Can I drive with a bad oil pressure switch?
It is not recommended. The problem is that you cannot be certain if the warning light is due to a faulty switch or actual, engine-destroying low oil pressure. It's a risk that is not worth taking. Address the issue as soon as possible.
Is an aftermarket switch as good as an OEM one for my Cavalier?
For a vehicle of this age, a quality aftermarket switch from a reputable brand like Standard Ignition is a perfectly acceptable and cost-effective replacement. These brands often manufacture parts that meet or exceed original specifications.
What tools do I need to replace the switch?
You will typically need a ratchet, a short extension, and a special oil pressure switch socket. This socket is designed to fit over the body of the sensor. You may also need some shop towels to clean up any spilled oil.
My new switch is installed, but the light is still on. What's wrong?
First, double-check the electrical connection. If the connection is secure, you may have a more serious problem. This could be an issue with the wiring itself, or your engine may actually have low oil pressure due to a failing oil pump or worn internal components. It is crucial to have the engine's oil pressure checked with a mechanical gauge by a qualified mechanic.
Helpful Videos
Technical Specifications
OEM Part Numbers: D1846A 10056918 25036934
Connector Type: 1-Blade Male Terminal. Thread Size: Varies by engine, typically 1/8" x 27 NPT or M16x1.5.
