Dodge Caravan Fuel Injector Guide for 1987-1993 Models
Address rough idling, poor performance, and starting issues by understanding your Caravan's fuel injectors.
- First, confirm if your Caravan has a 4-cylinder (TBI) or V6 (MPFI) engine, as the parts are completely different.
- Be aware of the serious fire risk from leaking fuel injector O-rings, which was subject to recall #00V268000.
- For best results on a high-mileage van, replace all injectors as a set with new aftermarket parts from a reputable brand like Standard Ignition.
- Remanufactured injectors from brands like GBR are a budget option but carry a higher risk of defects and premature failure.
Is Your Caravan TBI or MPFI?
Before buying parts, you must know your fuel system. The 1987-1993 Dodge Caravan used two different types of fuel injection. Your engine determines which system you have.
- Throttle Body Injection (TBI): Found on the 2.5L 4-cylinder engines, this system looks like a carburetor but has one or two large injectors mounted centrally. Replacement is simpler.
- Multi-Port Fuel Injection (MPFI): Used on the 3.0L and 3.3L V6 engines, this system has a separate fuel injector for each of the six cylinders, mounted on a fuel rail. This is the more common setup for V6 models.
Pro Tip: Check your engine size before ordering. A V6 engine will have six smaller injectors (MPFI), while a 4-cylinder will likely have a single, central TBI unit.
Symptoms of a Failing Fuel Injector
When a fuel injector starts to fail, it can get clogged, stuck open, or stuck closed. This starves or floods the engine of fuel, leading to noticeable problems. Common symptoms include:
🎬 Watch: 13 common signs of a clogged fuel injector- Rough Idle and Stalling: The engine may shake, shudder, or stall, especially at a stop.
- Engine Misfires: You may feel a vibration or jerking while driving as a cylinder fails to fire correctly. This often triggers the Check Engine Light with codes like P0300-P0306.
- Poor Acceleration: The van may feel sluggish or hesitate when you press the gas pedal.
- Worse Fuel Economy: A leaking or inefficient injector wastes gas, so you'll fill up more often.
- Hard Starting: The engine may crank for a long time before it finally starts, or it might start and then die quickly.
- Fuel Smell: A strong smell of raw gasoline around the engine is a serious sign of a leak.
Known Issue: Fuel Leaks and Fire Risk
There was an official NHTSA recall (00V268000) for some Caravans with 3.3L and 3.8L engines concerning fuel injector O-rings that could leak and cause an engine fire. Importantly, many owners reported experiencing this exact issue even when their vehicle's VIN was not included in the recall. If you smell fuel, inspect the fuel rail area immediately and do not drive the vehicle until it is repaired. A fuel leak is a critical safety hazard.

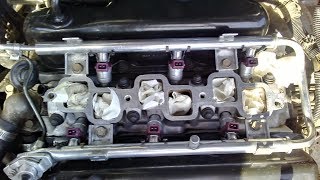

🎬 See how to identify and repair a fuel rail leakChoosing the Right Aftermarket Injector
For a vehicle of this age, new Original Equipment (OEM) parts are often expensive or discontinued. Aftermarket injectors are the most practical choice. However, quality varies significantly.
| Brand Tier | Our Available Brands | Quality & Performance Notes |
|---|---|---|
| New Aftermarket | Standard Ignition (SMP) | Standard is a well-known brand that manufactures new injectors designed to match original factory performance. While any part can have defects, they are generally considered a reliable choice for fit and function. |

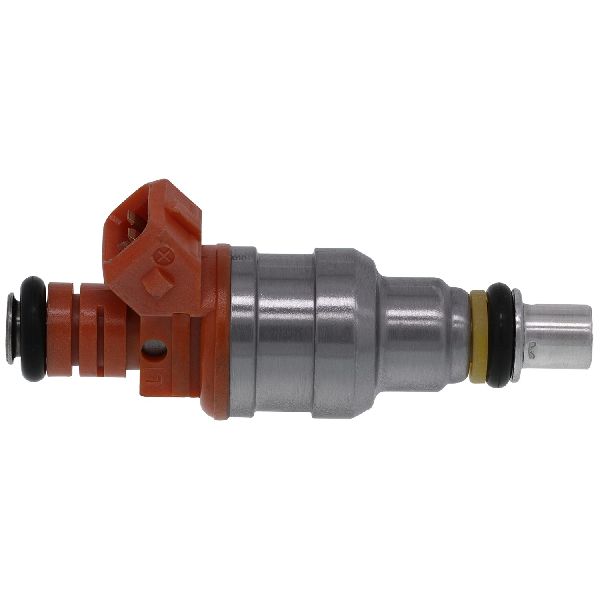

| Remanufactured | GBR Fuel Injection | GBR rebuilds original injectors. This is a budget-friendly option, but user reviews show a higher risk of parts being faulty out of the box or failing prematurely, often by getting stuck open. This can flood a cylinder with fuel, potentially causing engine damage. This option carries more risk than a new part. |
If your Caravan has high mileage, it's best to replace all the injectors at once. Old injectors can have different flow rates than a new one, leading to an unbalanced engine.
Frequently Asked Questions (FAQ)
Should I replace just the one bad injector or all of them?
If one injector has failed due to age or clogging, the others are likely in similar condition. On a high-mileage vehicle, it is highly recommended to replace all of them as a set to ensure balanced fuel delivery and prevent future failures.
Can I just clean my old injectors instead of replacing them?
While fuel injector cleaning additives can sometimes help with minor clogs, they cannot fix an injector that has failed electrically or is mechanically stuck. Professional off-car cleaning can be effective, but for the cost and labor involved, replacing them with new aftermarket parts is often a more reliable long-term solution.
Is it difficult to replace the fuel injectors myself?
For a 2.5L TBI engine, the job is relatively easy and involves removing the air cleaner and a few screws on the throttle body. For V6 engines, the process is more moderate, requiring you to relieve fuel pressure and remove the entire fuel rail to access the injectors. 🎬 Watch this step-by-step guide to replacing your fuel injectors It is a DIY-feasible job for someone with mechanical experience, but safety precautions like disconnecting the battery and relieving fuel pressure are essential.
What are the P0201-P0206 codes?
These are specific trouble codes that point to a problem in the circuit for a particular fuel injector (e.g., P0201 for cylinder 1, P0204 for cylinder 4). If you have one of these codes, it strongly suggests a problem with that specific injector or its wiring.
Helpful Videos
Technical Specifications
OEM Part Numbers: 0280150812
System Type: Throttle Body Injection (TBI) for 2.5L L4 engines; Multi-Port Fuel Injection (MPFI) for 3.0L & 3.3L V6 engines. Seal Type: Rubber O-rings for sealing at fuel rail and intake.
