Ford Bronco Ignition Switch Guide: 1987-1996
If your Bronco starts then immediately dies, the ignition switch is a likely culprit.
- The 'starts then dies' issue is a classic sign of a bad ignition switch on these Broncos.
- This is an electrical switch on the steering column, not the mechanical lock where your key goes.
- Proper adjustment of the new switch during installation is critical for correct operation.
- For reliability, Motorcraft (OEM) or Standard Ignition are highly recommended brands.
Is It the Ignition Switch or the Lock Cylinder?
Many owners confuse the ignition switch with the lock cylinder. They are two separate parts. If your key is physically hard to turn, gets stuck, or feels loose and sloppy, the problem is likely the mechanical lock cylinder where you insert the key. 🎬 See how to troubleshoot the mechanical lock cylinder and linkage. If your Bronco has electrical problems like stalling or a no-start, the electronic ignition switch is the more likely cause.
Common Failure Symptoms
A failing ignition switch in this generation of Bronco causes very specific and frustrating problems. The internal electrical contacts wear out, leading to poor connections.
- Starts and Immediately Stalls: This is the most common sign. The engine fires up when you turn the key to 'START' but dies as soon as you let go and the key returns to the 'RUN' position. This happens because the switch is making contact in the start circuit but failing in the run circuit.
- No Crank / No Start: You turn the key and nothing happens at all. The dashboard lights may or may not come on, but the starter motor doesn't engage.
- Stalling While Driving: The engine may suddenly shut off, especially when driving over a bump. This is a serious safety issue caused by the switch momentarily losing its connection. 🎬 Watch this guide to diagnosing common ignition switch failures.
- Electrical Gremlins: Accessories like the radio, power windows, or dashboard lights may work intermittently or not at all. You might also notice the 'spring-back' feel from the start to run position is gone.
- Engine Won't Shut Off: In rare cases, you can turn the key off and remove it, but the engine keeps running because the switch fails to cut power.
Choosing the Right Aftermarket Ignition Switch
For a part this critical, quality matters. While OEM is an option, several aftermarket brands offer a good balance of price and performance. Here’s how they generally stack up for your Bronco.
Brand Quality Tiers
| Brand | Tier | Notes |
|---|---|---|
| Motorcraft | OEM / Premium | This is the original Ford part. It offers the best fit and longest life but comes at the highest price. If you plan on keeping your Bronco for a long time, this is the safest bet. |
| Standard Ignition (SMP) | Premium Aftermarket | Standard is a well-respected brand known for making quality electronics that often meet or exceed OEM specs. It's considered a reliable alternative to Motorcraft. |
| Rostra Powertrain | Quality Aftermarket | Rostra manufactures a wide range of automotive electronics and is an OE supplier for some companies. Their parts are generally considered good quality replacements. |
| Dorman | Standard / Value | Dorman provides a huge range of aftermarket parts at a budget-friendly price. Quality can be inconsistent compared to premium brands, but it is a functional and widely available option. |
A Note on Recalls and TSBs
There are no major recalls or Technical Service Bulletins (TSBs) specifically for the ignition switch on the 1987-1996 Ford Bronco. However, it is always a good idea to check for any open recalls on your vehicle, such as the one for the speed control deactivation switch (Ford Recall 05S28), which could pose a fire risk. You can check for recalls using your VIN on the NHTSA website.
Frequently Asked Questions
Is replacing the ignition switch a DIY job?
Yes, if you are comfortable working in tight spaces under the dashboard. The switch is located on the steering column and held by two nuts. The main challenge is reaching it and then properly adjusting the new switch so all key positions work correctly. You will likely need to remove the lower dash panel and may need to lower the steering column for better access.
🎬 Follow this step-by-step walkthrough for replacing the switch yourself.Do I need any special tools?
Basic hand tools like a socket set are usually all that's needed. A 7/16" wrench or socket is typically required for the nuts holding the switch. No complex or special tools are required for the switch itself, though removing steering column covers may require different screwdrivers.
Why is the adjustment of the new switch so important?
The ignition switch has slotted mounting holes that allow for adjustment. If it's not positioned correctly on the steering column, you may have problems. For example, the truck might not crank, or the accessories won't turn on. In a worst-case scenario, a poorly adjusted switch could cause the starter to remain engaged after the engine has started, which can destroy the starter and damage the flywheel.
Will I need to get a new key?
No. You are replacing the electronic switch, not the mechanical lock cylinder that the key goes into. You will continue to use your existing keys.
Helpful Videos
Technical Specifications

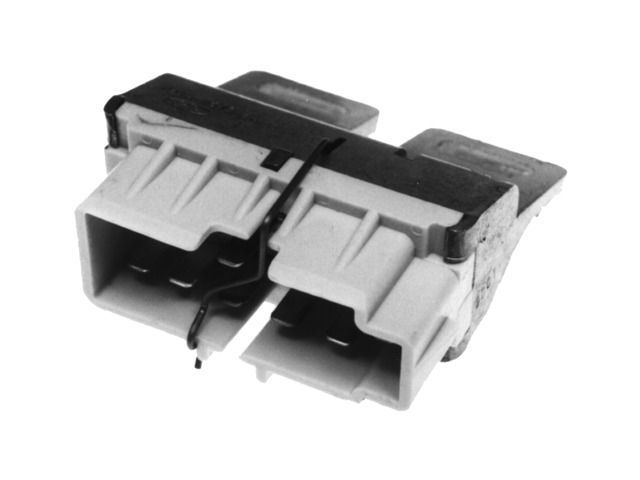

OEM Part Numbers: E4TZ-11572-A F2TZ-11572-B
Located on the steering column, actuated by a rod. The switch has multiple electrical contacts for Accessory, Run, and Start positions. It is adjustable via slotted mounting holes.
