1988-1994 Chevrolet C2500 Brake Light Switch: A Complete Guide
Solve common brake light, cruise control, and even running problems that start with this small but critical part.
- A faulty brake light switch can cause brake lights to fail, cruise control to stop working, and even trigger a Check Engine Light (Code 37).
- Always check bulbs and fuses first before assuming the switch is bad.
- Replacement is an easy DIY job, but access is tight under the dash.
- For best results and reliability, using a genuine GM or ACDelco replacement part is highly recommended by owners.
Symptoms of a Failing Brake Light Switch
A bad brake light switch on your C2500 can be a serious safety issue or just a minor annoyance, depending on how it fails. The most common cause of failure is simple wear and tear from constant use. Here are the most common symptoms to watch for:
- Brake Lights Don't Work: This is the most dangerous symptom. The switch fails in the open position, and your brake lights will not illuminate at all when you press the pedal.
- Brake Lights Stay On: If the switch fails in the closed position or is misadjusted, your brake lights will remain on even when you're not braking. 🎬 See how to replace a switch that stays stuck on. This can confuse other drivers and will drain your battery overnight.
- Cruise Control Doesn't Work: The brake switch is designed to turn off the cruise control. If the switch is faulty, it may prevent the cruise control from setting in the first place or cause it to disengage randomly.
- Poor Performance or Check Engine Light (Code 37): On these trucks, a faulty brake light switch can prevent the torque converter clutch from locking and unlocking correctly. This can make the truck feel sluggish, hurt fuel economy, and may trigger a Code 37 on OBD-I systems. 🎬 Watch: How to fix Code 37 and replace the switch.
Recall Information: NHTSA 99V025000
General Motors issued a recall for many 1993-1994 GM trucks, including the C2500, for a brake light switch issue. The factory wiring polarity could be reversed, causing premature wear and failure of the switch, leading to the brake lights not working. The fix involved replacing the switch and reversing the wiring. While this recall was issued many years ago, it's important to be aware of this potential underlying issue.
Choosing the Right Aftermarket Brake Light Switch
For a vehicle like the 1988-1994 C2500, the quality of aftermarket electrical parts can vary. While many parts will work fine, some owners report issues with cheaper, off-brand switches failing quickly or not adjusting properly. Given the low cost of even high-quality options, it's best to choose a reputable brand.
Brand Tiers for Your C2500
- OEM-Level (ACDelco): ACDelco is GM's own parts brand and is considered the original equipment manufacturer. Choosing an ACDelco switch (like GM Genuine part #15961519) is the closest you can get to the original factory part and is the safest bet for fit and long-term reliability.
- Reputable Aftermarket (Standard Ignition): Standard Motor Products (SMP), sold under the Standard Ignition brand, is a well-respected aftermarket manufacturer. They have a long history of producing reliable electrical components and are a solid choice if an OEM part isn't available or if you're looking for a quality alternative.
- Other Aftermarket (Rostra): Rostra is known for various automotive electronics, including cruise control systems. While they offer brake light switches, they are less commonly discussed in forums for this specific truck compared to ACDelco and Standard. Their quality is generally considered acceptable.
Pro Tip: Many owners of GMT400 trucks recommend spending a few extra dollars for a genuine GM or ACDelco switch to avoid the frustration of a poor-quality aftermarket part failing prematurely. The labor to replace it is the same, so using a quality part is a smart choice.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $13.59 - $51.83 |
| New OEM (ACDelco) | $20 - $60 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Is replacing the brake light switch a DIY job?
Yes, for most people this is a very feasible DIY repair. The switch is located up under the dashboard on the brake pedal arm. The area is cramped and awkward to access, but the replacement itself is simple and requires minimal tools, often just a small screwdriver. You typically unclip the old switch, disconnect the wiring, and install the new one in reverse order.
Does the new brake light switch need to be adjusted?
Yes, proper adjustment is critical. Many switches for this truck are self-adjusting. The typical procedure involves installing the switch, pressing the brake pedal down, pulling on a small lever or tab on the switch until it stops, and then releasing the brake pedal. This sets the correct distance for activation. Always follow the instructions included with your new part.
Can a bad brake light switch cause other lights on the dash to come on?
Yes. On some vehicles, a faulty brake light switch can confuse the car's computer and trigger ABS or other warning lights. For the 1988-1994 C2500, the most common related issue is a Check Engine Light for Code 37, related to the torque converter clutch.
My brake lights don't work. Is it always the switch?

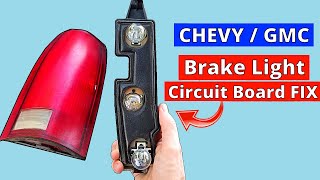

Not always. Before replacing the switch, you should always check for simpler problems first. The most common causes for brake lights not working are burned-out bulbs or a blown fuse. Also, on these older trucks, the circuit boards in the tail light housings can corrode and fail, which can also cause brake light problems. 🎬 Watch: How to repair corroded tail light circuit boards. Always check fuses and bulbs before buying a new switch.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15961519
The brake light switch for the 1988-1994 C2500 is a multi-function switch that clips onto the brake pedal support arm. It typically has a 4-terminal rectangular connector and includes circuits for the brake lights, cruise control disengagement, and the torque converter clutch.
