Throttle Position Sensor Guide for the 1988-1994 Dodge B250
Solving common idle, stalling, and acceleration problems in your Dodge Ram Van.
- A bad TPS is a very common cause of stalling, hesitation, and poor idle on the 1988-1994 B250.
- Replacement is an easy DIY job that takes less than an hour with basic tools.
- Check for water leaks from the windshield cowl, as this is a known issue that destroys these sensors.
- Choosing a premium aftermarket brand like Delphi or Standard Ignition is a reliable investment for this critical sensor.
Is Your Dodge B250's Throttle Position Sensor Failing?
If your 1988-1994 Dodge B250 is acting up, the Throttle Position Sensor (TPS) is a common part to check. Because it's used constantly while you drive, it can wear out over time. A bad TPS can cause a lot of confusing problems that might seem unrelated.
Top 5 Symptoms of a Bad TPS
- Erratic Idle and Stalling: Your van might idle too high, too low, or surge up and down. It may even stall when you come to a stop.
- Hesitation and Lack of Power: When you press the gas, the van might hesitate, buck, or feel like it has no power.
- Sudden Surging: The van might suddenly speed up while you're driving at a steady speed, even without you pressing the pedal further.
- Poor Automatic Shifting: Your transmission may shift at the wrong times, either too early or too late.
- Check Engine Light: A failing TPS will often turn on the Check Engine Light on your dashboard.
A Common Cause of Failure on Dodge Vans
On many Dodge trucks and vans from this era, the rubber seal at the bottom of the windshield (the cowl) can get old and leak. Water can drip directly onto the TPS and its electrical connector, causing it to fail early. When you replace your TPS, it's a good idea to put dielectric grease in the connector to help keep water out.
Choosing the Right Aftermarket TPS
For a vehicle like the 1988-1994 B250, finding a brand-new Mopar (OEM) part is very difficult and often not necessary. The aftermarket offers many good choices that meet or exceed the original quality. Aftermarket parts are separated into different quality tiers.
Tier 1: Premium Aftermarket Brands
These brands are known for making high-quality sensors that are built to last. They are often original equipment suppliers to car companies. Choosing one of these brands is the safest bet for reliability.
- Delphi: A top-tier brand known for making factory parts for many carmakers. Their sensors are tested to OE standards.
- NGK: While famous for spark plugs, NGK also produces high-quality sensors.
- Standard Ignition (SMP): A trusted name in the industry for over 100 years, known for making parts that match the original's performance.
Tier 2: Standard Aftermarket Brands
These brands offer a good balance of quality and price. They are a solid choice for most repairs.
- Walker Products: A company with a long history in fuel and engine management parts. They state their parts are 100% tested and designed to fit correctly.
Tier 3: Economy Brands
These brands focus on being affordable. They can be a good option for a budget repair, but quality can sometimes be inconsistent.
- Replacement
- True Tech
- Global Parts
Pro Tip: Easy DIY Replacement
Replacing the TPS on a B250 is a simple job that most people can do at home in under an hour with basic tools. The sensor is on the side of the throttle body, held on by two T25 Torx screws. You just need to remove the air cleaner housing for access, unplug the old sensor, unscrew it, and install the new one.
Cost of Replacing a Throttle Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $29.73 - $75.29 |
| Shop Labor | $75 - $150 |
| Total Professional Replacement | $105 - $225 |
Cost estimates are for the part and labor only and do not include taxes or shop fees.
Frequently Asked Questions
Do I need to calibrate the new TPS?
For these older Dodge vans, a calibration or "relearn" is not usually a complex, tool-required process. After installing the new sensor, some mechanics recommend disconnecting the battery for 10-15 minutes to reset the engine computer. This allows the computer to learn the new sensor's voltage readings at idle and wide-open throttle.
Can I just clean my old TPS?
No, the TPS is a sealed electronic part. The problems come from wear inside the sensor, not dirt on the outside. If the sensor is failing, it must be replaced.
Where is the TPS located on my B250?
The TPS is mounted on the side of the throttle body. The throttle body is the part that the large air intake hose connects to on top of the engine. The TPS has a 3-wire electrical connector.
Will a bad TPS cause my van not to start?
It's unlikely to cause a complete no-start condition. The engine will usually start but will run very poorly, with a rough idle or stalling immediately after starting.

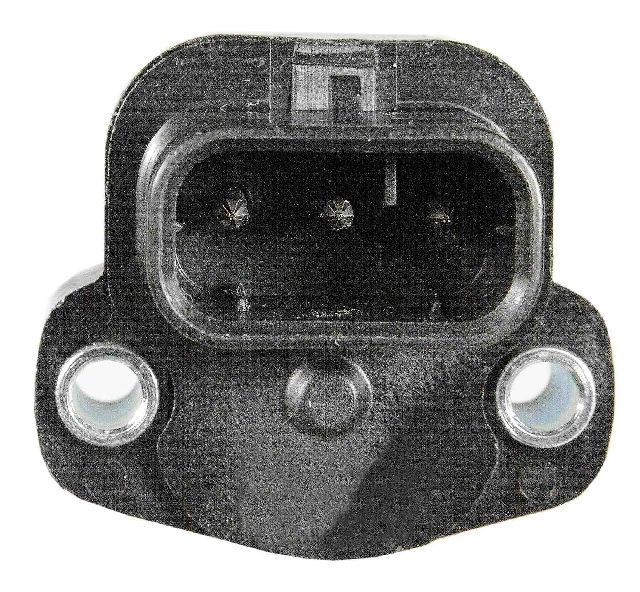

Technical Specifications
OEM Part Numbers: 5234903 4761871AC 4638631 4728881 4746965AB
3-pin rectangular connector, mounts to throttle body with two screws.
