GMC C3500 Door Lock Actuator Guide for 1988-1995 Models
Fix your unresponsive power door locks with the right replacement actuator for your GMT400 truck.
- A weak or buzzing actuator is the most common cause of power lock failure on these trucks.
- You must drill out the original rivets to remove the old actuator; replacements install with bolts.
- Always clean and lubricate the door's internal lock linkages to prevent premature failure of the new part.
- For this model, quality aftermarket brands like Continental or Standard Ignition are the recommended choice.
Is Your Door Lock Actuator Failing?
On the 1988-1995 GMC C3500, the door lock actuators are a common failure point after decades of use. The original grease inside the mechanism can dry up, causing the motor to work harder and eventually burn out. Symptoms often start small and get worse, especially in cold weather.
- Slow or Weak Locking: The lock knob barely moves or doesn't travel the full distance to lock or unlock.
- Buzzing or Clicking Noises: You hear a buzzing or clicking sound from inside the door when you press the switch, but the lock doesn't move. This means the motor is receiving power but is too weak to move the mechanism.
- Inconsistent Operation: Sometimes the locks work, and other times they don't. This can be an early sign of a failing motor or a problem with the wiring.
- Complete Failure: The power lock function for a specific door doesn't work at all, but other doors are fine.
First, Check the Basics
Before buying a new actuator, check the "PWR LOK" fuse in the fuse box. Also, listen carefully when you press the lock switch. If you hear no sound at all from the problem door, the issue could be the switch itself or a broken wire in the door jamb, not the actuator. The driver's side switch is a common point of failure as it controls all the other doors and gets the most use.
Choosing the Right Aftermarket Actuator
For a truck of this age, finding new OEM (Original Equipment Manufacturer) actuators from a dealer is highly unlikely, as they have been discontinued. The market is now served by aftermarket brands. While budget-friendly options exist, some owners report that the cheapest online actuators lack the strength to operate the C3500's heavy, and often stiff, lock linkages.

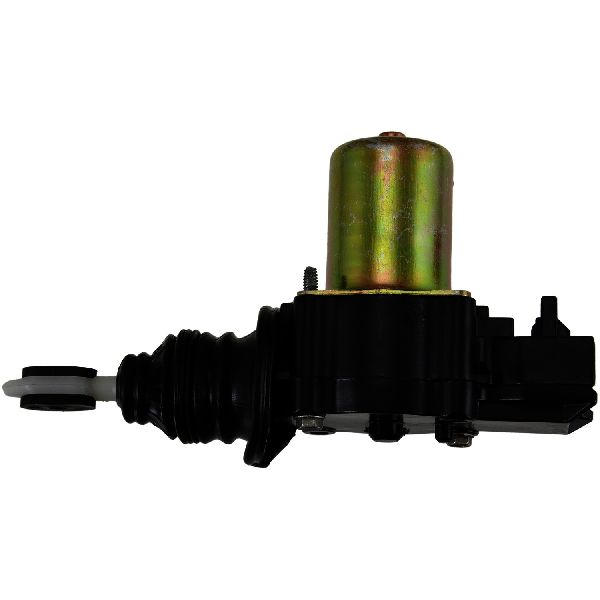

- Premium Aftermarket (Continental, Standard Ignition): Brands like Continental and Standard Ignition (SMP) are well-regarded. Continental is an OEM supplier for many automakers, and their parts are made to original specifications for fit and function. Standard Motor Products specializes in automotive electronics and is known for durable components that meet or exceed OEM quality. These are reliable choices for a long-lasting repair.
- Standard Aftermarket (Dorman, TRQ): Brands like Dorman and TRQ offer a good balance of quality and value and are widely available. They are a popular choice for DIY repairs.
Pro Tip: Lubricate Everything
Regardless of which brand you choose, the key to a successful repair is reducing friction. While the door panel is off, clean and lubricate all the moving parts of the door latch and lock rods with white lithium grease or a similar lubricant. The original grease is likely dried out, and making the mechanism move freely will reduce strain on your new actuator and ensure it works smoothly for years.
Cost of Replacing a Door Lock Actuator
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket | $55.79 - $83.79 |
| New OEM | null (Largely unavailable) |
| Used OEM | $20 - $50 |
| Shop Labor | $100 - $200 per door |
Frequently Asked Questions
Do I need special tools to replace the actuator?
Yes. The original actuators were installed at the factory using rivets. You will need a drill and a drill bit (around 5/16") to drill out these rivets. The replacement actuator will then be installed using the bolts and nuts that typically come with the new part. You will also need basic hand tools like a screwdriver and socket set to remove the door panel.
My new actuator is installed, but it still seems weak. What's wrong?
This is almost always caused by stiff or binding lock linkages inside the door. If you didn't clean and lubricate the latch mechanism and all the connecting rods when you installed the new actuator, the new motor will struggle against the old, dried-up grease. Another possibility is a weak electrical connection or a failing door lock switch that isn't providing full power.
Should I replace the actuators in pairs?
It's not required, but it's often a good idea. The actuators on your truck are all the same age and have been through the same number of cycles. If one has failed, the other is likely not far behind. Since you already have the tools out and know the process, replacing both at the same time can save you from having to repeat the job on the other side in the near future.
Is the driver's side actuator different from the passenger's side?
Yes, the actuators are side-specific. There is a left-hand (LH) part for the driver's side and a right-hand (RH) part for the passenger's side. They are mirror images of each other to fit correctly in the respective doors. Make sure you order the correct part for the door you are working on.
Technical Specifications
OEM Part Numbers: 22071946 (Right Hand) 22071947 (Left Hand)
This is a 12V, 2-pin electrical actuator. It is side-specific (LH/RH). Original mounting is with rivets, which must be drilled out for replacement.
