GMC C3500 HVAC Blower Motor Switch Guide (1988-1995)
If your fan speeds are gone or the fan is dead, the blower motor switch could be the problem.
- A bad switch can cause the fan to only work on high, not work at all, or have intermittent speeds.
- Before replacing the switch, check the fuse and consider that a failed blower motor resistor causes similar symptoms.
- Replacement is a simple DIY task that involves removing the dash bezel around the climate controls.
- Aftermarket is the main option; Standard Ignition is a common brand, but quality can be inconsistent based on user reviews.
Is Your Blower Motor Switch Failing?
On these 1988-1995 GMC C3500 trucks, also known as the GMT400 platform, the climate control system is straightforward. When the fan control switch fails, the symptoms are usually obvious. A bad switch can be the cause of several frustrating issues with your heating and A/C system.
Common Symptoms of a Bad Switch:
- Fan only works on high speed: This is a very common issue. While it often points to a failed blower motor resistor, a bad switch can also cause this problem.
- Some fan speeds don't work: If one or more of the lower or medium speeds have stopped working, the internal contacts of the switch may be worn out.
- The fan doesn't work at all: If the fan won't turn on at any speed, the switch itself might have failed completely, cutting power to the whole system. First, check the fuse before replacing parts.
- Intermittent operation: You might find that the fan cuts in and out, or that you have to jiggle the knob to get it to work. This points to a worn or faulty switch.
Don't Mistake It for Other Problems
A failing blower motor or a bad blower motor resistor can have similar symptoms. If the fan only works on high, the resistor is the most likely culprit. If you hear squealing or grinding noises, the blower motor itself is probably failing. A bad switch is more likely if multiple speeds are erratic or have stopped working entirely.
Choosing a New Aftermarket Blower Motor Switch
For a truck of this age, aftermarket parts are the most common and cost-effective solution. The original OEM switches are often discontinued or very expensive. Aftermarket brands like Standard Ignition offer direct-fit replacements.
When buying an aftermarket switch, quality can vary. Some user reviews for Standard Ignition switches have reported issues with incorrect functionality or premature failure. However, others have had success with aftermarket parts fixing their issues. Given the simplicity of the part and the age of the vehicle, an aftermarket switch is a reasonable choice, but be prepared for the possibility of getting a defective part. It's wise to buy from a supplier with a good return policy.
Pro Tip: When you replace the blower motor switch, it's a good idea to also inspect the electrical connector. If it looks melted or corroded, it should be replaced as well. A failing blower motor can draw too much current and damage the switch and its connector.
Cost of a New HVAC Blower Motor Switch (1988-1995 GMC C3500)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (e.g., Standard Ignition) | $19 - $51 |
| Shop Labor for Installation | $60 - $120 |
Cost estimates are based on market research and may vary by location and supplier.
Frequently Asked Questions (FAQ)
How hard is it to replace the blower motor switch on a 1988-1995 C3500?
Replacing the switch is a relatively easy DIY job. It typically involves removing the plastic dash bezel around the radio and climate controls to access the HVAC control unit. The switch itself is usually held into the control unit with a small screw or clips. The most difficult part can be removing the old dash plastics, which can be brittle and break easily. The entire job can usually be done in under an hour with basic hand tools.

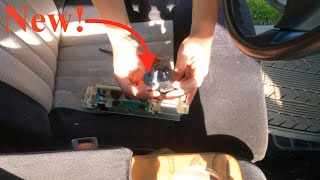

🎬 See how to replace the heater fan control switch on GMC trucks. 🎬 Watch this step-by-step guide to replacing the switch on a 1995 Chevy.Do I need to disconnect the battery to replace the switch?
Yes, you should always disconnect the negative battery terminal before working on any part of your vehicle's electrical system to prevent short circuits or injury.
My fan only works on the highest speed. Is it the switch or the resistor?
This is the classic symptom of a failed blower motor resistor. The high setting bypasses the resistor, which is why it's the only one that works. The resistor is a separate, inexpensive part located near the blower motor under the passenger side dashboard. It's a good idea to test or replace the resistor first before replacing the switch for this specific symptom.
Are there any recalls for the HVAC system on these trucks?
Searches for the 1988-1995 GMC C3500 did not show any specific recalls for the HVAC blower motor switch. There was a recall for some 1988 models related to engine block heater wiring, but it is not related to the cabin HVAC controls.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16264129
7-Terminal Rectangle Blower Motor Switch
