Engine Timing Cover Replacement Guide for the 1988-1999 Chevrolet C1500
Leaking oil from the front of your engine? This guide covers the common causes and replacement options for your C1500's timing cover.
- The primary symptom of a failing timing cover is an oil leak from the front of the engine.
- Crucially, 1996-1999 Vortec engines require a specific plastic cover with a crank sensor provision, while earlier TBI engines use a metal cover without one.
- Replacement is moderately difficult and requires special tools like a harmonic balancer puller.
- While replacing the cover, it is highly recommended to also replace the water pump, timing cover gasket, and front crankshaft seal to prevent future repairs.
Is Your C1500's Timing Cover Failing?
The timing cover itself is a simple part, but the gasket and seal are prone to failure over time. Heat and age cause the gaskets to become hard, brittle, and shrink. This allows engine oil to leak from the front of your engine, which is the most common sign of a problem. While a small leak might not seem urgent, it can lead to low oil levels and eventually cause serious engine damage if ignored.
Key Model Year Difference: TBI vs. Vortec
When shopping for a new timing cover, the most important detail is your truck's engine. There was a major change in 1996.
- 1988-1995 (TBI Engines): These trucks typically use a stamped steel or cast aluminum timing cover. The design is simple and does not have a sensor. 🎬 See how to change the timing cover gasket on 1995 TBI trucks.
- 1996-1999 (Vortec Engines): These engines use a plastic timing cover that includes a mounting hole for the crankshaft position sensor. You must use the correct cover for the sensor to function properly. Ordering the wrong cover is a common mistake.
Symptoms of a Bad Timing Cover or Gasket
Watch for these signs that your timing cover needs attention:
- Oil Leaks: The most obvious symptom is engine oil dripping from the front of the engine, behind the main crankshaft pulley. You may see drips on the ground or a coating of oil and grime on the front of the engine and oil pan.
- Low Engine Oil: A consistent leak will cause your oil level to drop between changes, potentially triggering the low oil light.
- Engine Noise: In rare cases, a loose or damaged cover might rattle against the engine block. A very loose timing chain can also make a slapping noise as it hits the inside of the cover.
A Note on Leaks
The front of a Small Block Chevy engine has many potential leak sources, including the water pump, valve covers, and oil pan. Before replacing the timing cover, clean the front of the engine thoroughly with a degreaser and run it briefly to pinpoint the exact source of the leak.
Choosing the Right Aftermarket Timing Cover
Aftermarket offers a wide variety of materials and brands. Original covers were often basic stamped steel. An aftermarket part can be a significant upgrade.
| Brand Tier | Brands | Description |
|---|---|---|
| OEM-Quality Replacements | Dorman, Cloyes, ATP | These brands focus on direct-fit replacements that meet or exceed original specifications. Dorman is known for offering complete kits with the cover, seal, and gasket. Cloyes is a highly respected name in timing system components. These are reliable choices for a daily driver. |
| Performance & Appearance | Proform, Spectre, Trans-dapt, Pioneer | These brands offer options like polished aluminum or chrome-plated steel covers. A cast aluminum cover provides extra rigidity, which can help prevent leaks. Chrome covers can look great but be wary of quality; some reviews mention poor fitment or thin material that can lead to leaks. These are popular for engine rebuilds and show trucks. |
Pro Tip: Replace More Than Just the Cover
The replacement job requires removing the water pump and harmonic balancer. This is the perfect time to replace the timing cover gasket, front crankshaft seal, and the water pump itself. You should also inspect the timing chain for excessive slack. Replacing these items at the same time will save you from doing the same job twice and prevent future leaks.
Frequently Asked Questions (FAQ)
Do I have to replace the whole cover or can I just do the gasket?
If your cover isn't cracked, corroded, or damaged, you can often get away with just replacing the gasket and the front crankshaft seal. However, many aftermarket covers are inexpensive and come as a kit with a new seal pre-installed, making replacement a good value.
What is the hardest part of replacing the timing cover?
The most challenging part for most mechanics is getting a good seal between the bottom of the timing cover and the oil pan. Many people recommend loosening the front bolts of the oil pan to allow it to drop slightly, which provides better access to clean the surfaces and apply sealant (RTV) at the corners.

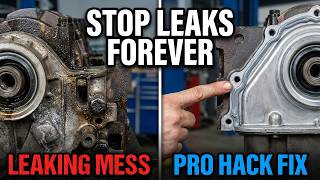

🎬 Watch this pro hack for sealing the timing cover to the oil pan.What's the difference between a stamped steel and cast aluminum cover?
Stamped steel covers are like the original; they are lightweight and inexpensive. Cast aluminum covers are thicker and more rigid. This rigidity helps them resist flexing, providing a more reliable seal and reducing the chance of leaks, especially in high-performance applications.
Do the aftermarket covers come with a timing tab?
Some do, but many do not. The timing tab is used to check ignition timing with a timing light. If you are buying a cover for an older TBI engine, make sure it either comes with a tab or that you can transfer your old one. Vortec engines do not use a timing tab in the same way.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12562818
Material varies by brand and includes stamped steel, cast aluminum, and plastic (for 1996+ Vortec models). Aftermarket kits may include the cover, gasket, bolts, and a pre-installed front crankshaft seal. Check for inclusion of a timing pointer if required for your TBI engine.
