GMC C1500 (1988-1999) Differential Cover: A Mechanic's Guide to Replacement
Leaking gear oil or dealing with a rusted-through differential cover on your GMT400 truck? Here's what you need to know.
- The primary reasons for replacement are rust-through leaks and seized fill plugs on the original axle housing.
- Upgrading to an aftermarket cover with a drain plug is highly recommended for easy future maintenance.
- Confirm you have a 10-bolt axle before ordering; most 1988-1999 C1500s do.
- For a durable, long-term solution, choose a heavy-duty cast iron cover from a brand like Yukon or Dana Spicer.
Is Your C1500's Differential Cover Failing?
If you own a 1988-1999 GMC C1500, you have a tough, reliable truck. However, after decades on the road, some parts start to show their age. The rear differential cover is a common failure point. The original cover is made of thin, stamped steel. Over time, it rusts from the inside out and from the outside in. This eventually leads to pinhole leaks or even large cracks, causing gear oil to seep out. Another frequent issue is the fill plug on the differential housing itself seizing up, making it impossible to service the fluid. In these cases, replacing the cover is the only practical solution.
Don't Mistake It for a Pinion Seal Leak
A common oil leak at the rear axle comes from the pinion seal, where the driveshaft connects to the differential. This leak will appear at the very front of the differential. A cover leak will be on the back face of the axle. Check carefully to identify the true source of the leak before ordering parts.
Choosing the Right Aftermarket Differential Cover
For the C1500, the aftermarket offers significant upgrades over the original factory part. The stock cover is basic, with no drain plug, meaning you have to remove the whole cover just to change the fluid. Nearly all aftermarket options are an improvement.
Brand Tiers for Your Truck
Standard Replacement (Good):

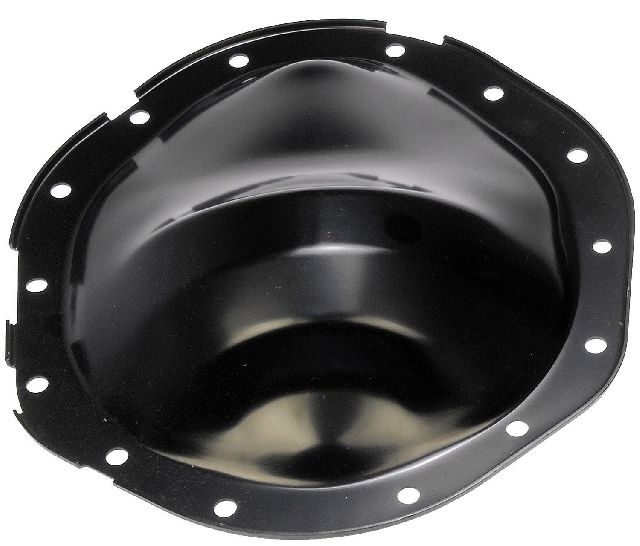

- Dorman: This is a go-to choice for a practical, budget-friendly replacement. Dorman covers are typically made of steel like the original but often include a drain plug—a major convenience. They are designed to be a direct, reliable fit.
- Replacement / ATP / Skyward: These brands offer basic, cost-effective replacements that meet original specifications. They are a good option if you just need to fix a leak on a stock truck without added features.
Heavy-Duty / Performance (Better):
- Yukon Gear & Axle: Known for high-performance axle parts, Yukon offers heavy-duty differential covers made from thick, high-strength nodular iron. These covers are designed to withstand impacts from rocks and debris, and their rigid construction can help strengthen the axle housing. They are an excellent choice for trucks that work hard or go off-road.
- Dana Spicer Chassis: Dana is a respected OEM supplier, and their aftermarket covers are built to a high standard. Made from nodular iron, they provide a major strength upgrade over the stock stamped steel cover, offering superior protection for your gears.
Cosmetic Upgrade (Specialty):
- Spectre: If you're looking for a show-truck shine, Spectre offers chrome-plated steel covers. While they look great, they offer similar performance to a stock cover and don't provide the strength or cooling benefits of a cast iron or aluminum cover.
Pro Tip: Get a Cover with a Drain Plug
The single most useful feature on an aftermarket cover is a drain plug. It turns a messy, 1-hour fluid change into a simple 15-minute drain-and-fill. For the small difference in price, it is a highly recommended upgrade that makes future maintenance much easier.
Cost of Replacing a Differential Cover on a 1988-1999 GMC C1500
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Cover | $40 - $155 |
| Shop Labor | $100 - $200 |
| Gear Oil & Gasket | $30 - $60 |
| Total Estimated Cost | $170 - $415 |
Cost estimates are for reference only and may vary based on location, brand, and vehicle condition.
Frequently Asked Questions
Do I need a gasket or RTV sealant?
Some replacement covers come with a reusable gasket, while others require you to use RTV silicone gasket maker. Many mechanics prefer using a high-quality gasket for a reliable, long-lasting seal. Check if your new cover includes a gasket. If not, you will need to purchase one or a tube of gear-oil-resistant RTV.
What kind of gear oil do I need for my C1500?
Most 1988-1999 GMC C1500s use a standard 80W-90 gear oil. If your truck has a limited-slip differential (LSD), often identified by a "G80" code on the service parts sticker in the glove box, you will also need to add a friction modifier additive. Always check your owner's manual or the tag on the differential to be sure.
Is replacing the differential cover a good DIY job?
Yes, this is a very manageable job for a DIY mechanic with basic tools. The process involves safely jacking up and supporting the truck, draining the old fluid, unbolting the cover, cleaning the surfaces, and installing the new part. The most critical step is thoroughly cleaning the mating surface on the axle housing to ensure a leak-free seal.
How do I know if I have a 10-bolt or 12-bolt rear end?
The vast majority of C1500 trucks from this era use a GM 10-bolt rear axle. You can confirm by simply counting the number of bolts on the differential cover. This is the most important piece of information you need to order the correct part.
Technical Specifications
Most commonly fits the GM 8.5-inch ring gear 10-bolt axle. Verify bolt count on your specific vehicle before ordering.
