Choosing the Right Starter Motor for Your 1988-1999 GMC C1500
Don't get stranded by a 'click-no-start'—understand your starter replacement options for your GMT400 truck.
- The 'click-no-start' symptom is common, but always check your battery and ground cables first before buying a new starter.
- Upgrading from an old, heavy direct-drive starter to a modern, lightweight gear-reduction model is a popular and effective modification for these trucks.
- ACDelco is a trusted OEM-quality choice, while Powermaster offers a high-performance upgrade.
- When replacing the starter, pay close attention to the mounting bolts; some aftermarket starters require specific knurled bolts to prevent shifting.
Is Your C1500 Starter Failing?
If you turn the key and only hear a single, loud click, you're experiencing the most common symptom of a failing starter on a 1988-1999 GMC C1500. However, before you replace the starter, it's crucial to check other potential culprits. These trucks are known for electrical ground issues, so always inspect the battery terminals and the main ground straps to the engine block and frame first. A weak or dead battery can also mimic starter problems.
Common Failure Symptoms
- Single Loud Click, No Crank: This classic symptom usually points to a worn-out starter solenoid, which is the small cylinder attached to the starter motor. The click is the sound of the solenoid trying, but failing, to engage the starter motor.
- Slow Engine Cranking: If the engine turns over much slower than usual, like it's struggling, the starter motor may be wearing out and drawing too much power.
- Grinding Noise: A grinding or whirring sound during or after cranking can indicate that the starter gear is not meshing properly with the flywheel or is not retracting correctly.
- Intermittent Starting: The truck starts fine sometimes, but other times it just clicks or does nothing. This can be a sign of worn internal components or heat soak, where the starter fails to work when the engine is hot.
Known Issues & Recalls
There are no specific NHTSA recalls for the starter motor on the 1988-1999 GMC C1500. However, owners frequently report issues related to poor electrical grounds and failing ignition switches that can cause no-start conditions similar to a bad starter. Always rule out these simpler fixes before condemning the starter.
🎬 Watch: Troubleshooting a no-crank issue when your battery is good.Choosing the Right Aftermarket Starter
For this generation of truck, an aftermarket starter can be a significant upgrade over the original factory part. Many owners choose to replace the heavy, older direct-drive starters with modern, lightweight gear-reduction units for more cranking power and better clearance.
Brand Quality Tiers
- Premium & High-Performance (Powermaster, Proform): Brands like Powermaster specialize in high-torque, gear-reduction starters. These are excellent upgrades for trucks with high-compression engines, headers, or for owners who want maximum cranking speed and reliability. They are often lighter and smaller than stock. Proform also offers performance starters, though user reviews are mixed, with some reporting early failures. When installing these, ensuring you have the correct knurled starter bolts is critical to prevent movement.
- OEM-Grade Replacement (ACDelco): ACDelco is the original parts manufacturer for GM and is a trusted choice for a reliable, stock-level replacement. They offer both new and remanufactured options. A new ACDelco gear-reduction starter is a solid, dependable choice that often provides the benefits of a modern design.
- Value & Standard Replacement (MPA, Store Brands): MPA (Motor Parts of America) is a major supplier of remanufactured parts for auto parts stores. These starters offer a cost-effective solution and typically come with a limited warranty. While many users have success with these parts, the quality can sometimes be inconsistent compared to a new unit.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $87.88 - $433.59 |
| Shop Labor | $66 - $97 |
| Total Professional Replacement | $154 - $531 (approx.) |
Pro Tip: Gear Reduction is an Upgrade
If your truck has the original, large direct-drive starter, replacing it with a modern gear-reduction model (like those from Powermaster or a new ACDelco PG260) is a worthwhile upgrade. They provide more cranking torque, draw less power from the battery, and are significantly lighter and easier to handle during installation.

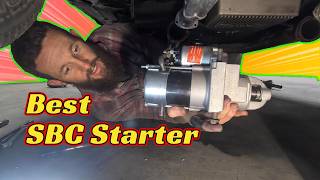

🎬 See how to upgrade your old starter to a modern unit.Frequently Asked Questions (FAQ)
Can I drive my truck if the starter is bad?
No. If the starter is completely failed, the engine will not crank or start, leaving you stranded. If it is failing intermittently, you are taking a risk every time you shut the engine off that it may not start again.
Is it hard to replace the starter on a C1500?
For most 1988-1999 models, the starter replacement is a relatively straightforward job. It is typically held in place by two bolts and is accessible from underneath the vehicle. The most important first step is to disconnect the battery. The job can usually be done in about an hour with basic hand tools.

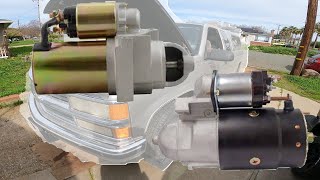

🎬 Follow this step-by-step guide to replace your C1500 starter.What's the difference between a direct-drive and a gear-reduction starter?
A direct-drive starter has the motor shaft directly connected to the pinion gear. They are simple but large, heavy, and less efficient. A gear-reduction starter uses a set of internal gears to multiply the motor's torque, allowing for a smaller, lighter, and more powerful motor that draws less amperage.
Do I need to use shims when installing my new starter?
Sometimes. Shims are thin metal strips used to adjust the distance between the starter gear and the flywheel. An incorrect gap can cause grinding noises or damage to the starter or flywheel. Some aftermarket starters, particularly high-torque models, may require shimming for proper operation. Always check the manufacturer's instructions.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10465167 10465578 12564108 9000879
The 1988-1999 GMC C1500 used several starter variations. Early models often featured a heavier, direct-drive starter. Later models, especially those with V8 engines from the mid-90s onward, used a more compact and efficient Permanent Magnet Gear Reduction (PMGR) starter, such as the Delco PG260 series. Aftermarket options are available in both styles, as well as high-torque versions for modified applications.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
