GMC K1500 (1988-1999) Alternator: A Guide to Replacement and Upgrades
Keep your classic GMC truck's electrical system reliable by choosing the right new alternator.
- Replacing the alternator on a 1988-1999 K1500 is a straightforward, one-hour DIY job with basic tools.
- Symptoms of failure include dim/flickering lights, a whining noise, and a battery warning light on the dash.
- Consider upgrading to a higher-amperage alternator (e.g., 140-amp) for better performance, especially if you have extra accessories.
- For this vehicle, a new, high-quality aftermarket alternator from a brand like Bosch, Remy, or ACDelco Professional is often a better value than a remanufactured unit.
Is Your K1500's Alternator Failing?
The alternator on the GMT400-platform truck is a common wear item, but thankfully it gives you some warning signs before it leaves you stranded. If you notice any of these symptoms, it's time to inspect your charging system.
Common Failure Symptoms
- Dim or Flickering Lights: Headlights and dash lights may dim, pulse, or flicker, especially at idle. They might get brighter when you rev the engine.
- Warning Light: The 'BATTERY' or 'ALT' light on your dashboard may illuminate, indicating the system isn't charging correctly.
- Slow or Malfunctioning Accessories: Power windows may seem sluggish, or the radio might cut out.
- Whining or Grinding Noises: A whining sound that changes with engine RPM often points to failing bearings inside the alternator.
- Difficulty Starting or Dead Battery: The alternator's job is to recharge the battery. If it fails, the battery will drain and won't have enough power to start the truck.
- Erratic Voltage Gauge: The voltmeter on your dash may swing wildly or show a reading consistently below 13 volts while running. However, be aware that the factory gauges on these trucks can become inaccurate over time. It's best to verify voltage with a multimeter at the battery. 🎬 Watch this easy guide on diagnosing a failing alternator.
Known Issues for the 1988-1999 GMC K1500
For a truck of this age, some specific issues are worth noting:
- Wiring Problems: After decades of heat cycles, the wiring can become brittle. Check the main power wire to the alternator and the small plastic connector for corrosion or damage. A bad ground connection is also a common problem that can mimic alternator failure.
- Original Alternator Design: Many of these trucks came with a CS130 alternator, which was adequate for its time but can be overwhelmed by modern accessories like powerful stereos, winches, or extra lighting. Upgrading to a higher-amperage unit is a popular and beneficial modification.
- Recalls and TSBs: Searches for recalls and Technical Service Bulletins (TSBs) for the 1988-1999 model years did not reveal any specific, widespread alternator campaigns on the NHTSA website. Recalls found were for much newer models and different issues.
Choosing a New Aftermarket Alternator
For a vehicle like the K1500, a new aftermarket alternator is often a better choice than a remanufactured unit of unknown quality. You get new components, better warranties, and often improved designs over the original. Here’s a breakdown of brand quality tiers to help you decide.
OEM vs. Aftermarket Quality
ACDelco is the original equipment (OE) supplier for GM. However, they offer different product lines. 'ACDelco GM Original Equipment' is the factory part, while 'ACDelco Gold (Professional)' and 'ACDelco Silver (Advantage)' are their aftermarket lines. For this truck, a high-quality new aftermarket part from a reputable brand like Bosch, Remy, or even ACDelco's own aftermarket line can offer excellent performance and value, sometimes exceeding the original's capabilities.
| Brand Tier | Brands | Description |
|---|---|---|
| Premium Aftermarket / High-Output | Bosch, Powermaster, Proform, ACDelco (Gold/OE) | These brands offer top-tier quality, often with brand-new components and excellent warranties. Powermaster and Proform specialize in high-amperage units perfect for trucks with added electrical accessories. Bosch and ACDelco are trusted names known for reliability and OE-level performance. |
| Standard Aftermarket | Remy, WAI Global, BBB Industries | These are solid, reliable choices for a daily driver with stock electrical needs. They provide a good balance of quality and cost. Remy, historically linked with Delco, is a well-regarded name in the industry. |
| Economy | MPA, various store brands | While being the most budget-friendly, these parts can have a higher risk of premature failure. They can be a viable option for a short-term fix, but for long-term reliability, investing in a higher-tier brand is recommended. |
Pro Tip: Consider an Amperage Upgrade
If you're replacing the alternator anyway, consider upgrading to a higher-output model like a 140-amp unit. The stock 105-amp alternator can struggle with modern demands. An upgrade provides more power at idle, brighter lights, and support for accessories. The popular CS144 or AD244 alternator from later GM trucks is a common swap that bolts in with minor modifications. If you upgrade, it's highly recommended to also perform the "Big 3" wiring upgrade (alternator to battery positive, battery negative to chassis, and engine to chassis) to handle the extra current safely.

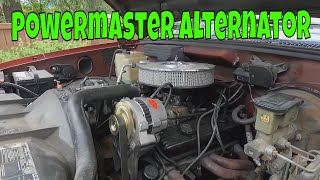

🎬 Follow this step-by-step guide for a 140 amp alternator upgrade.Frequently Asked Questions
Is replacing the alternator on a K1500 a DIY job?
Yes, for most people with basic hand tools. The alternator is located at the top front of the engine and is easily accessible. The process involves disconnecting the battery, releasing the serpentine belt tensioner, removing a few bolts, and unplugging two electrical connectors. The entire job can typically be done in about an hour.
🎬 See how to replace the alternator on your K1500.What tools do I need to replace the alternator?
You will need a basic socket and wrench set (common sizes are 8mm, 10mm, 13mm, and 15mm), a ratchet with an extension, and a serpentine belt tool or a breaker bar to release the belt tension. Always disconnect the negative battery terminal before starting work.
Should I buy a new or remanufactured alternator?
While remanufactured parts can be cheaper, their quality can be inconsistent. For a critical component like an alternator, a new unit from a reputable aftermarket brand often provides better reliability and a longer warranty for a modest increase in price.
Do I need a new belt when I replace the alternator?
It's a great time to inspect the serpentine belt for cracks, fraying, or glazing. Since you have to remove it anyway, replacing a worn belt at the same time is a smart and inexpensive preventative measure.
My battery is dead. Is it the battery or the alternator?
It could be either, or both. A bad alternator will fail to charge the battery, causing it to die. Conversely, an old battery that can't hold a charge will strain the alternator, potentially causing it to fail prematurely. The best practice is to have both components tested. Most auto parts stores offer free battery and alternator testing.
Helpful Videos
Technical Specifications
Varies by engine and options. Common alternators include the Delco CS130 and CS144 series. Standard output was around 105 amps, with optional higher-output units available. The mounting style is typically a two-bolt pivot mount. The electrical connection consists of a main battery post and a single multi-pin connector.
