A Comprehensive Guide to the 1988-2000 GMC C2500 Steering Gear
If your truck's steering feels loose and sloppy, it might be time to replace the steering gear.
- Before replacing the steering gear, always inspect the rag joint, intermediate shaft, pitman arm, and idler arm for wear, as they can cause similar symptoms.
- Budget remanufactured brands like Cardone have very mixed reviews; quality can be inconsistent, with some units failing prematurely.
- The most difficult part of the replacement is often removing the pitman arm from the old gearbox, which may require a special puller and heat.
- A professional wheel alignment is mandatory after replacing the steering gear to ensure safety and prevent uneven tire wear.
Is Your Steering Gear Failing?
The steering on these GMT400-platform trucks was never extremely tight, but certain symptoms point directly to a worn-out steering gear. Ignoring these signs can be unsafe, as steering control is critical.
Top 5 Failure Symptoms
- Excessive Steering Play: This is the most common complaint. If you have more than a couple of inches of "slop" or free play in the steering wheel before the wheels start to turn, the internal gears are likely worn.
- Fluid Leaks: Reddish or brown power steering fluid dripping from the front driver's side of your truck is a bad sign. Leaks often occur at the pitman arm seal (bottom of the box) or the input shaft seal.
- Wandering on the Road: Your truck may feel like it's floating or drifting in the lane, requiring constant small corrections to drive straight.
- Stiff or Binding Steering: If turning the wheel becomes difficult, especially in certain spots, the internal components of the gearbox could be failing.
- Grinding or Popping Noises: A grinding noise when turning can indicate metal-on-metal contact from worn gears inside the box.
First, Check Other Parts!
Before you condemn the steering gear, inspect the rest of the system. The GMT400 platform is notorious for wear in other steering components that cause similar symptoms. Check the rag joint (the flexible coupler on the steering shaft), the intermediate steering shaft itself, the pitman arm, the idler arm, and all tie rod ends. Replacing a steering gear when the real problem was a $50 rag joint is a frustrating and expensive mistake.
Choosing the Right Aftermarket Steering Gear
For a vehicle of this age, new OEM parts are generally not a practical option. The market consists almost entirely of remanufactured units. Quality can vary dramatically between brands.

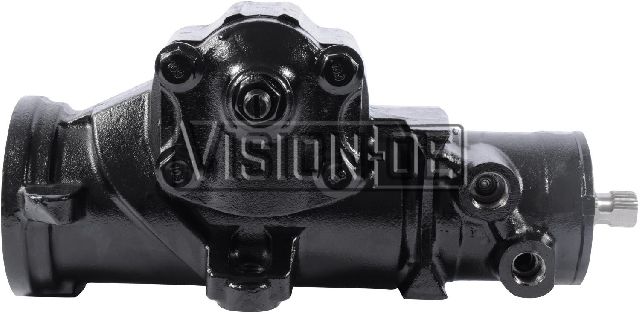

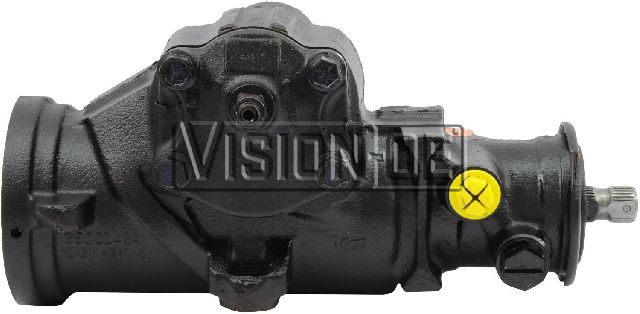

Budget-Friendly Remanufactured (Cardone, BBB Industries)
These are the most common and affordable options available. However, owner experiences are very mixed.
- Cardone: Some owners report that a Cardone steering gear works well and lasts for years. Others have experienced issues with premature leaks or receiving a unit that still has excessive play right out of the box. It can be a gamble, though a lifetime warranty may offer some peace of mind.
- BBB Industries: Based on owner feedback, this brand should be approached with caution. Multiple reports describe receiving units that were poorly rebuilt, sometimes with rust still inside, and failed very quickly.
Premium Remanufactured (e.g., RedHead, BlueTop)
Though not listed in the available brands for this guide, it's important to know that many truck enthusiasts strongly recommend premium rebuilders like RedHead or BlueTop. These companies use higher-quality components and machine their gears to tighter tolerances to remove the factory slop. They cost significantly more, but the consistent positive feedback suggests they are a reliable, long-term solution if your budget allows.
Ordering Pro-Tip
Before ordering, confirm the specifics of your truck. Check if your original gear has 3 or 4 mounting bolts. Also, be aware of the gear ratio, often described by the number of turns lock-to-lock (e.g., 3 turns vs. a quicker 2.5 turns). Using your VIN to verify fitment is always the best practice.
Replacement Cost Breakdown
The cost to replace your steering gear will depend on the part quality and whether you do the work yourself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Steering Gear | $138.93 - $953.81 |
| Shop Labor | $250 - $500 |
| Total Estimated Cost | $388.93 - $1453.81 |
Frequently Asked Questions
Is replacing a steering gear a DIY job?
For an experienced DIY mechanic, yes. However, it is a physically demanding job. The gearbox is heavy, and you will need special tools like a pitman arm puller and flare nut wrenches. Removing the old pitman arm can be very difficult and may require heat. If you are not comfortable with these steps, it's best to leave it to a professional.
Are there any recalls for the steering gear on my truck?
No. Searches of the NHTSA database did not show any steering gear recalls for the 1988-2000 GMC C2500 model years. Recalls found were for much newer GM trucks.
Can I just adjust my old steering gear?
There is an adjustment screw on the top of the steering gear. While you can sometimes tighten this to remove a small amount of play, it is not a permanent fix for a worn-out gear. Overtightening the screw can cause the steering to bind, which is extremely dangerous. This adjustment should only be done in small increments and is generally not a substitute for replacement.
Do I need to get an alignment after replacing the steering gear?
Yes, absolutely. Replacing the steering gear will affect your steering angles. A professional front-end alignment is required to ensure your truck drives straight and to prevent premature tire wear.
Technical Specifications
The steering gear for this vehicle is a recirculating ball type. When ordering a replacement, it is critical to verify the number of mounting bolts (typically 3 or 4), the spline count on the input and output shafts, and the gear ratio (number of turns lock-to-lock). Some models may have variable-assist steering controlled by a sensor on the power steering pump.
