Idle Air Control Valve Guide for the 1988-2000 GMC C3500
Solve your C3500's stalling, rough idle, or high idle issues by understanding and choosing the right Idle Air Control Valve.
- A bad IAC valve is a very common cause of stalling and rough idle on 1988-2000 C3500s.
- Ensure you buy the correct part for your engine; TBI (88-95) and Vortec (96-00) valves are different.
- Replacement is an easy DIY job that takes less than an hour and requires basic tools.
- Standard Ignition is a top-tier aftermarket choice, while brands like URO Parts offer a budget-friendly option.
Is Your C3500 Stalling or Idling Rough? It Could Be the IAC Valve.
If you own a 1988-2000 GMC C3500, especially a model with Throttle Body Injection (TBI), you know they are dependable workhorses. However, a common point of failure that can cause major headaches is the Idle Air Control (IAC) valve. A bad IAC valve can make your truck difficult to drive, causing symptoms like stalling at stoplights or an idle that surges up and down. The good news is that this is a relatively simple and inexpensive part to replace yourself.
Symptoms of a Failing IAC Valve on a C3500
When the IAC valve starts to fail, the signs are usually very noticeable. Because it directly controls idle, any problems will show up when you're stopped or moving at low speeds.
- Rough or Unstable Idle: The most common symptom. Your truck's RPM may bounce up and down, and the engine might sound like it's struggling to stay running.
- Stalling: The engine may die when you come to a stop, put it in gear, or take your foot off the gas.
- High Idle: The engine may idle much faster than normal (above 1,000 RPM), which can cause it to lurch when you put it in gear.
- Hard Starting: A faulty IAC can sometimes make it difficult to start the engine, especially when it's cold.
- Check Engine Light: On 1996-2000 models, a bad IAC valve will often trigger the Check Engine Light with codes like P0505 or P0507.
TBI vs. Vortec Engines: A Critical Difference
It is crucial to order the correct IAC valve for your engine. The 1988-1995 C3500s primarily used Throttle Body Injection (TBI), while the 1996-2000 models used Vortec engines with a different fuel injection system. These two engine types use different IAC valves that are not interchangeable. Always verify the part fits your specific year and engine before ordering.
Choosing the Right Aftermarket IAC Valve
While an OEM ACDelco part is always a safe bet, quality aftermarket brands offer a great balance of price and performance. Aftermarket parts are often just as durable as their OEM counterparts but more affordable. Here’s a breakdown of the available brands.
| Brand Tier | Brands | Quality & Price Assessment |
|---|---|---|
| Premium Aftermarket | Standard Ignition (SMP) | Often considered an OE-equivalent. Standard Ignition has a strong reputation for quality and reliability, making it a trusted choice for sensors and electronic components. |
| Quality Aftermarket | Holstein | Holstein positions itself as a manufacturer of high-quality parts that meet or exceed OE standards, using quality materials and engineering. A solid mid-tier choice. |
| Economy / Budget | True Tech, URO Parts | These brands offer the most affordable options. URO Parts is known for being a budget-friendly alternative, but some owners prefer to use them for less critical components. These are a viable choice if budget is the primary concern. |
Pro Tip: Clean the Throttle Body First
Before replacing the IAC valve, it's a good idea to clean your throttle body and the IAC valve passage with a dedicated throttle body cleaner. Carbon buildup can restrict airflow and cause symptoms similar to a failing IAC valve. Sometimes, a good cleaning is all that's needed, but given the age of these trucks, replacement is often the long-term solution.
Frequently Asked Questions (FAQ)
Can I just clean my old IAC valve instead of replacing it?
You can try cleaning the pintle (the cone-shaped tip) and the air passage with throttle body cleaner. This can sometimes restore function temporarily if the issue is just carbon buildup. However, the electric motor inside can fail or wear out, in which case cleaning won't help and replacement is necessary.
Is an idle relearn procedure required after replacement?
For these older GM trucks, a formal scan tool relearn is not always necessary. A common and effective method is to disconnect the negative battery terminal for about 15-30 minutes while you perform the replacement. After reconnecting the battery and installing the new valve, start the engine and let it idle for 5-10 minutes to allow the computer to adjust to the new part.
Where is the IAC valve located on my C3500?
On TBI models (1988-1995), the IAC valve is located on the passenger side of the throttle body, right under the air cleaner housing. It is typically held in place by two Torx or small hex bolts. The location is similar on Vortec models (1996-2000), situated on the throttle body assembly.
What happens if I ignore a bad IAC valve?
Ignoring a failing IAC valve will lead to persistent drivability issues like stalling and poor performance. It can also decrease fuel economy and put extra stress on other engine and transmission components due to erratic or high idle speeds.
Technical Specifications
OEM Part Numbers: 17112193 17111826 17059602 ACDelco 217-435

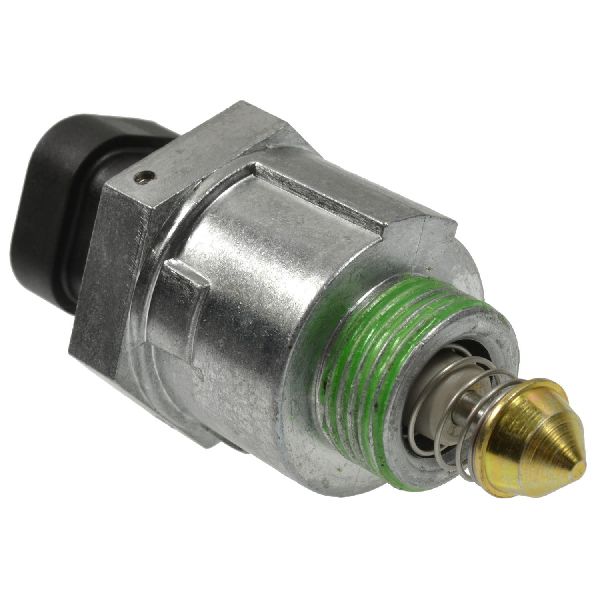

The IAC valve for this generation is typically a 4-pin stepper motor with a pintle that extends and retracts to control airflow. The TBI-era valve has a threaded body, while the Vortec-era valve has a different mounting configuration.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
