GMC K3500 Window Motor Guide for 1988-2000 Models
If your truck's power window is slow, noisy, or completely stuck, this guide is for you.
- Symptoms like slow operation, noise, or intermittent function are clear signs of a failing window motor on your K3500.
- Replacing the entire motor and regulator assembly is often easier than drilling out rivets to replace the motor alone.
- Aftermarket brands like Dorman and Cardone are reliable and cost-effective choices for this repair.
- While the door panel is off, clean and lubricate the window tracks to ensure smooth operation with the new part.
Is Your GMC K3500 Window Motor Failing?
For GMT400-platform trucks like the 1988-2000 K3500, window motor failure is a common issue as the vehicle ages. The original motors and internal components wear out from years of use. Symptoms often start small and get worse over time. 🎬 Watch this video to identify common signs of motor failure. Don't ignore them, as a window stuck open can be a security risk and expose your interior to the elements.
Common Symptoms of a Bad Window Motor:
- Slow Operation: The window moves up and down much slower than it used to. This is often the first sign the motor is getting weak.
- Intermittent Function: The window works sometimes and not others. This can be caused by a dead spot in the motor or a wiring issue.
- Grinding or Whirring Noises: You hear strange sounds from inside the door when you press the switch. This could mean the motor's internal gears are stripped or failing.
- Window is Completely Stuck: The window doesn't move at all, but you might hear a faint click from the switch. If you don't hear any sound, the problem could also be the switch or a fuse.
- Window Drifts Down: The glass slowly slides down into the door on its own. This usually points to a failure in the regulator, but is often addressed by replacing the motor and regulator assembly.
Pro Tip: Motor or Switch?
Sometimes, the window switch itself is the problem, not the motor. This is a common issue on older GM trucks. If a window doesn't work from its own switch but works from the master driver's side switch, the individual switch is likely bad. If it doesn't work from either switch, the motor is the more probable culprit, assuming the fuse is good.
Choosing the Right Aftermarket Window Motor
For a vehicle of this age, an aftermarket window motor offers comparable quality to an OEM part at a much better price. The original factory motors are often superseded by newer designs anyway. Aftermarket brands like Dorman and Cardone are well-established and produce reliable replacements.
Aftermarket Brand Tiers
- Economy (Skyward, Surtrak): These brands offer the lowest price point. While they will get your window working again, reviews and forum discussions are sparse. They may be a viable option for a truck that isn't used daily, but long-term durability is less certain. Note: Surtrak is primarily an axle and drivetrain component manufacturer; their presence in the window motor market is limited.
- Standard (Dorman, Cardone - New): Dorman and Cardone are the most common and trusted aftermarket brands for this part. Dorman, in particular, has invested heavily in improving upon factory designs and ensuring their parts meet safety standards. 🎬 See how Dorman window regulators compare to other aftermarket brands. Many owners report success with these brands, though some find them slightly noisier than the original. They often come with a lifetime warranty, which is a major plus.
- Remanufactured (Cardone): Cardone also offers remanufactured motors, which are original units that have been rebuilt with new components to meet factory specifications. These can be a good middle-ground, offering OEM-like performance at a reduced cost.
A Note on "Motor Only" vs. "Motor & Regulator Assembly"
On these GMT400 trucks, the original motor is riveted to the regulator panel. You can drill out the rivets to replace just the motor, but this adds a step to the installation. Many aftermarket parts are sold as a complete assembly with the motor already attached to the regulator, which can simplify the job. Given the age of the truck, replacing the entire assembly is often recommended as the regulator's tracks and cables may also be worn.

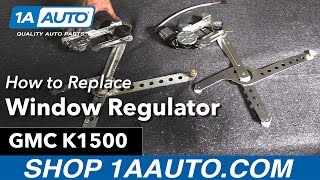

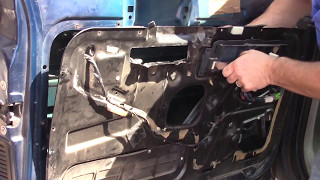

🎬 Follow this step-by-step guide to replace your window regulator assembly.Typical Replacement Costs
Prices can vary based on brand and whether you buy the motor alone or the full regulator assembly.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Motor | $36.95 - $85.00 |
| New Aftermarket Motor & Regulator Assembly | $55.00 - $177.51 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Are there any recalls on the 1988-2000 GMC K3500 window motor?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls for the window motors or regulators on the 1988-2000 GMC K3500. Recalls for window components on other GM vehicles do not apply to this model.
Are there any Technical Service Bulletins (TSBs) for this issue?
There are no specific TSBs found for the 1988-2000 K3500 window motor. TSBs for window issues on other GM models exist but address different platforms and components.
Can I replace just one window motor?
Yes. Window motors fail independently. However, if one has failed from age, the others may not be far behind. It's common for the driver's side motor to fail first due to more frequent use.
Do I need special tools for the replacement?
You will need basic hand tools like a socket set (7mm, 10mm), screwdrivers, and a door panel trim tool. If you are replacing only the motor and not the full regulator assembly, you will also need a drill to remove the factory rivets and a rivet gun or a set of nuts and bolts to install the new motor.
Should I lubricate the window tracks during replacement?
Yes, it is highly recommended. While you have the door panel off, cleaning the window channels and applying a light coat of white lithium grease or silicone spray to the regulator tracks can ensure smooth operation and extend the life of the new motor.
Helpful Videos
Technical Specifications
12V DC electric motor. The motor is typically secured to the regulator panel with rivets from the factory. Aftermarket replacements may use bolts.
