Ford Bronco Ignition Control Module Guide (1989-1996)
Solve stalling, no-start, and rough running issues by understanding your Bronco's ignition module.
- The most common failure symptom is the engine stalling when hot and restarting after it cools down.
- Heat is the primary enemy of this part; using thermal paste during installation is mandatory for longevity.
- Motorcraft (OEM) is widely considered the most reliable brand, as many aftermarket modules are known to fail quickly.
- Check your module's location: 1992-1996 models are on the fender (easy), while 1989-1991 models are on the distributor and require a special tool.
Is Your Bronco Stalling When Hot? It Could Be the Ignition Module.
One of the most common points of failure on the 1989-1996 Ford Bronco is the ignition control module (ICM). This part is well-known for failing due to heat. When the module gets too hot, it can temporarily stop working, causing your engine to stall without warning. After the module cools down for a few minutes, the truck may start and run again until it overheats. This is the classic sign of a failing Ford TFI module.
Symptoms of a Failing Ignition Control Module
- Stalling When Hot: The engine dies after reaching operating temperature and may restart after cooling down. This is the most common symptom.

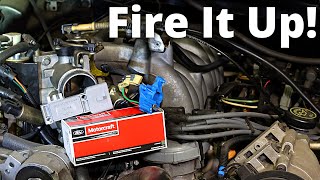

- No-Start Condition: The engine cranks over but will not start because there is no spark. 🎬 See this guide on testing your TFI and pickup coil.
- Random Stalling: The engine shuts off unexpectedly while driving, sometimes picking back up on its own.
- Rough Idle and Misfires: The engine may run poorly, stumble, or feel like it's missing on one or more cylinders.

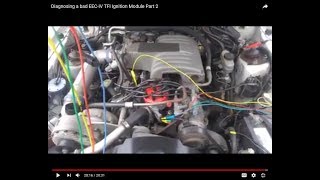

- Starts Only When Key is Released: In some cases, the engine won't fire while cranking 🎬 Watch: Diagnosing a bad EEC-IV module when your truck won't start. but will start the moment you release the key from the 'START' to the 'RUN' position.
A Note on Module Location
Ford changed the location of this part during this generation. On earlier models (roughly 1989-1991), the module is mounted directly to the distributor, where it is exposed to intense engine heat. On later models (roughly 1992-1996), Ford moved the module to the driver's side inner fender on a large aluminum heat sink to help it cool. 🎬 Watch: How to replace the fender-mounted module on later models. While the fender-mounted location is an improvement, both versions are known to fail from heat.
Choosing the Right Aftermarket Ignition Module
When it comes to this specific part for this generation of Bronco, brand choice matters. While aftermarket parts offer savings, owner experiences suggest a significant difference in durability.
- Tier 1 (OEM): Motorcraft
The consensus among Bronco and Ford truck owners is clear: Motorcraft is the most reliable choice. Many owners report that aftermarket modules fail prematurely, sometimes in less than a year, while the original Motorcraft parts lasted for many years. If you want to fix the problem once and have the most peace of mind, spending more for a Motorcraft module is the recommended path. - Tier 2 (Premium Aftermarket): Delphi & Standard Ignition
Brands like Delphi and Standard Ignition are well-known aftermarket manufacturers that offer a more budget-friendly alternative. Reviews show that these parts can and do work, often solving immediate running issues. However, they may not have the same long-term durability as the OEM Motorcraft part when subjected to the heat of the Bronco's engine bay. They can be a good option if budget is the primary concern.
Estimated Cost for a New Ignition Control Module
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Delphi, Standard) | $82.70 - $111.48 |
| New OEM (Motorcraft) | $100 - $160 |
| Shop Labor | $100 - $250 |
Note: Labor costs can vary significantly depending on whether your module is fender-mounted (easier) or distributor-mounted (harder).
Pro Tip: Use Thermal Paste!
Whether you choose OEM or aftermarket, you MUST apply a thin layer of thermal paste (also called dielectric grease) to the metal back of the new module before installation. This paste helps transfer heat away from the module to the heat sink or distributor base. Skipping this step will cause the new module to overheat and fail very quickly.
Frequently Asked Questions
Do I need a special tool to replace it?
Maybe. If you have the fender-mounted module (92-96), you only need basic hand tools. If you have the distributor-mounted module (89-91), you will need a special thin-walled 7/32" or 5.5mm socket to reach the small bolts. Trying to use a standard socket will not work and will lead to frustration.
Are there any recalls for this part?
No. While there are many owner complaints and even Technical Service Bulletins (TSBs) from Ford acknowledging issues with TFI modules, there have been no official safety recalls issued for the 1989-1996 Ford Bronco ignition control module. Searches on the NHTSA database show recalls for newer Bronco models only.
My mechanic replaced the module and it still stalls. What else could it be?
If a new, quality module doesn't fix the issue, the problem could be the Profile Ignition Pickup (PIP) sensor inside the distributor. The PIP sensor sends the signal that the module uses for timing, and it can also fail when hot, causing identical symptoms. Often, mechanics replace the entire distributor assembly, which includes a new PIP sensor, to solve the problem for good.
Should I get a black or gray module?
For the 1989-1996 Bronco, you will most likely need the black TFI module. Ford also made a gray module, and while they look similar, they have different internal electronics. Always confirm the correct part for your specific year and engine to ensure proper performance.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5U2Z12A297B DY1075 E7DF-12A297-A1A
Thick Film Ignition (TFI-IV) Module
