Electric Fuel Pump Guide for the 1989-1998 Suzuki Sidekick
Keep your Sidekick running strong by understanding its fuel pump and choosing the right replacement part.
- A failing fuel pump will cause sputtering, stalling, hard starting, and loss of power.
- Replacement requires dropping the fuel tank, a moderately difficult job.
- For best reliability, choose a premium brand like Denso, Bosch, or Delphi.
- Always replace the fuel filter and pump strainer at the same time as the pump to prevent premature failure.
Symptoms of a Failing Fuel Pump
A failing fuel pump rarely just stops working. It usually gives warning signs. If your Sidekick is experiencing any of these issues, your fuel pump could be the culprit.

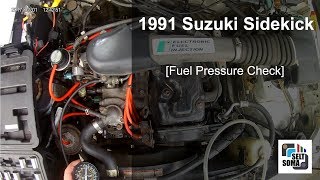

- Engine Sputtering or Stalling: If your Sidekick sputters or stalls, especially under load or at high speeds, it could be starving for fuel. This happens when the pump can't supply a consistent volume of gasoline. 🎬 Watch: How to perform a fuel pressure test on your Sidekick.
- Difficulty Starting: A weak pump may struggle to build enough initial pressure to start the engine. You might find the engine cranks for a long time before it finally starts, or it might not start at all.
- Whining Noise From the Fuel Tank: A loud humming or whining sound coming from the rear of the vehicle, near the fuel tank, is a classic sign of a fuel pump motor working too hard or beginning to fail.
- Loss of Power and Poor Acceleration: If your Sidekick feels sluggish and lacks its usual power when you accelerate, the fuel pump may not be delivering enough fuel to meet the engine's demands.
Check Simple Things First
Before condemning the fuel pump, check for simpler issues. A clogged fuel filter can cause identical symptoms. Also, check the fuel pump relay and fuses. On these Sidekicks, a bad ground wire behind the driver's side taillight is a common cause 🎬 See how to repair rusted gas lines and check electrical connections. of fuel pump power issues.
Choosing the Right Aftermarket Fuel Pump
When replacing your fuel pump, you have a choice between just the pump motor or the complete hanger assembly. The assembly includes the pump, sending unit for the fuel gauge, and the hanger itself. If your fuel gauge works fine and the hanger isn't rusted out, you can often save money by replacing only the pump motor. However, a complete assembly can make the job quicker and ensures all related components are new.
Not all aftermarket brands are created equal. For a vehicle like the Sidekick, where reliability is key, it's wise to invest in a quality part. Here’s a breakdown of available brands:
Tier 1: Premium & OEM-Quality Brands
These brands are known for meeting or exceeding original equipment (OE) specifications and are often the original manufacturers for Suzuki. They are the most recommended choice for long-term reliability.
- Denso: As an original equipment supplier for many Japanese vehicles, Denso is a top choice. Owners and mechanics frequently recommend Denso for its reliability and fit.
- Bosch: A well-respected name in automotive parts, Bosch offers high-quality fuel pumps that are considered a reliable option.
- Delphi: Another global OE manufacturer, Delphi pumps are built to OE standards and are known for durability and consistent performance.
Tier 2: Standard Aftermarket Brands
These brands offer a good balance of price and quality. They are a solid choice for a daily driver or a budget-conscious repair.
- GMB: Known for manufacturing a wide range of automotive parts, GMB fuel pumps are designed to meet OEM specifications and are durability tested.
- US Motor Works: This brand provides a reliable, cost-effective alternative to premium brands.
Tier 3: Economy Brands
These are typically the lowest-priced options. While they can get your vehicle back on the road, their long-term durability can be questionable.
- AutoBest: An economy-focused brand that offers a functional replacement at a low price point.
Pro Tip: Replace the Strainer and Filter!
Whenever you replace a fuel pump, you MUST also replace the fuel pump strainer (the small filter sock on the pump) and the main fuel filter. Failure to do so can cause the new pump to fail prematurely and may void its warranty.
Cost of Replacing a Suzuki Sidekick Fuel Pump
The total cost depends on the parts you choose and whether you do the work yourself or hire a professional. The job requires dropping the fuel tank, which can be time-consuming.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump | $38 - $176 |
| Shop Labor Cost | $171 - $251 |
| Total Professional Replacement | $478 - $939 |
Frequently Asked Questions (FAQ)
Do I have to drop the fuel tank to replace the pump?

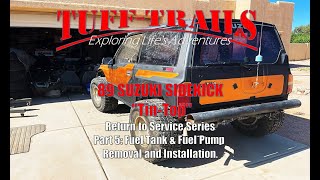

Yes, on the 1989-1998 Suzuki Sidekick, the fuel pump is located inside the fuel tank and is accessed from the top. The only way to reach it is by lowering the fuel tank from under the vehicle. 🎬 Watch this step-by-step guide to removing and installing the fuel tank. Some owners have cut an access hole in the floor of the cargo area, but this is not recommended.
What's the difference between a pump and a hanger assembly?
The fuel pump is just the electric motor that creates pressure. The hanger assembly is the entire unit that sits in the tank, which includes the pump, the metal or plastic hanger, the fuel level sending unit (which controls your gas gauge), and various tubes and wires. You can often buy just the pump if the rest of your assembly is in good shape.
My Sidekick sat for a few years and now won't start. Could it be the fuel pump?
Yes, this is a very common problem. When a Sidekick sits for a long period, the old gasoline can cause the fuel pump to seize or lock up. If you have confirmed the pump is getting power but no fuel is flowing, it has likely failed from sitting.
Are there any recalls for the fuel pump on my Sidekick?
There are no specific recalls for the electric fuel pump itself on the 1989-1998 Suzuki Sidekick. However, there was a recall for some 1996 models related to potential fuel tank puncture in a crash, but not for the pump's operation. Always check for the latest recall information using your vehicle's VIN.
Helpful Videos

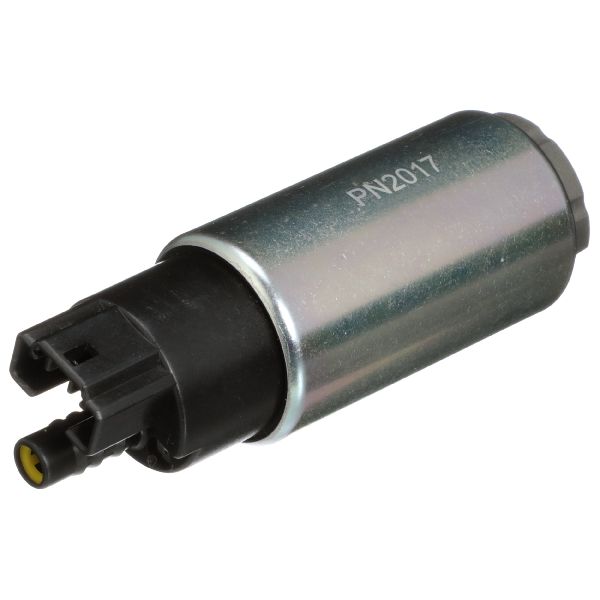

Technical Specifications
OEM Part Numbers: 15100-60A01 15100-58B01 15100-77E00
The fuel pump is an in-tank electric pump. Early models (1989-1990) only run the pump while the engine is cranking or running, unlike later models that prime the system for a few seconds when the key is turned to 'ON'. The system includes the pump, hanger assembly, and an external, frame-mounted fuel filter.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
