Isuzu Amigo Ignition Coil Guide: Understanding and Replacing Your Coils (1989-2000)
Keep your Amigo's engine running smoothly by learning how to spot and fix a bad ignition coil.
- Verify your engine: 1989-94 models use a canister coil, while 1998-00 models use a coil pack.
- Symptoms like rough idle, power loss, and a P0300-P0306 check engine code strongly point to a bad coil.
- Driving with a bad coil is not recommended as it can damage your catalytic converter.
- For best results, choose a quality aftermarket brand like Delphi or Standard Motor Products (SMP).
Understanding Your Amigo's Ignition System: Two Different Setups
The 1989-2000 Isuzu Amigo was built across two generations with different engines, and they use two very different ignition coil setups. It is critical to identify which one your vehicle has before buying a part.

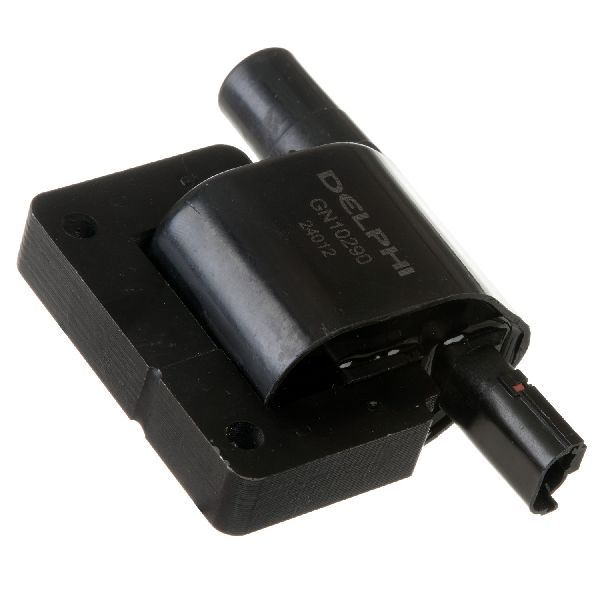

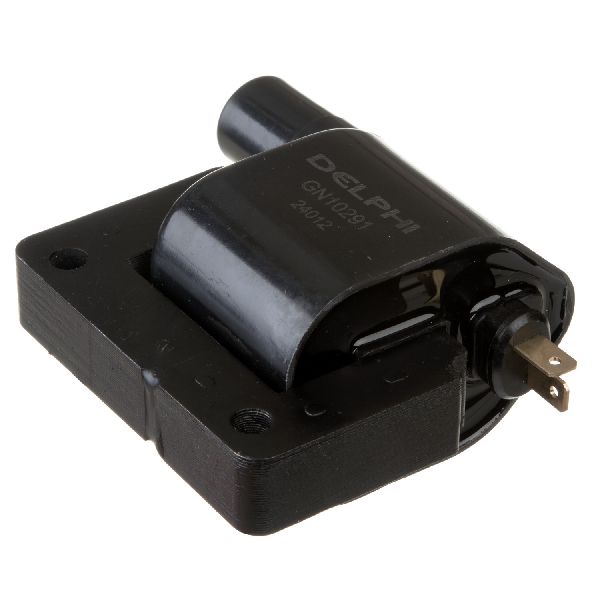

- 1989-1994 Amigo (2.3L & 2.6L 4-Cylinder): These first-generation models use a single, canister-shaped ignition coil. It works with a distributor to send spark to each cylinder. This is a classic, simple design and the coil is usually mounted on the fender wall or near the engine.

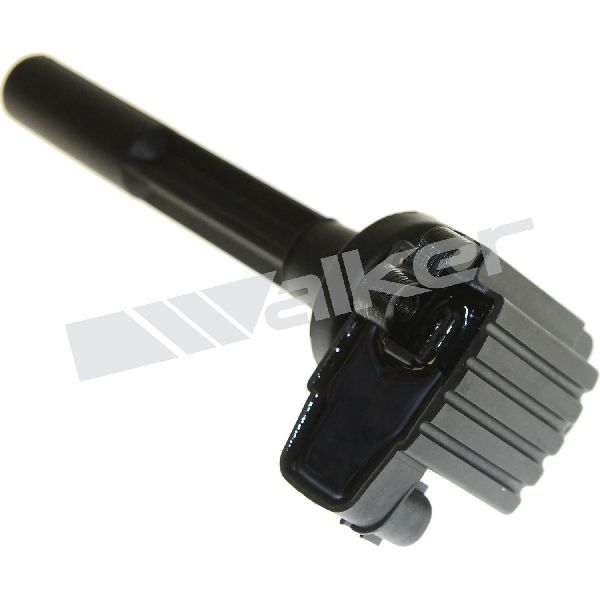

- 1998-2000 Amigo (2.2L 4-Cylinder & 3.2L V6): Second-generation models use a distributorless ignition system. The 2.2L 4-cylinder and the 3.2L V6 both use a rectangular "coil pack." This single unit generates spark for all cylinders and sends it through spark plug wires. The V6 coil pack is the same part used on the Isuzu Rodeo, Trooper, and Honda Passport of the same era. 🎬 Watch: Spark plug replacement walkthrough for V6 engines
Is My Ignition Coil Failing? Common Symptoms
A bad ignition coil or coil pack will cause noticeable engine problems. Because the coil is the source of spark for the engine, symptoms are usually immediate and obvious.
- Check Engine Light: This is often the first sign. A failing coil will trigger misfire codes, such as P0300 (random misfire) or P0301-P0306 for a specific cylinder.
- Rough Idle and Misfiring: The engine may shake, sputter, or vibrate, especially when stopped or at low speeds.
- Loss of Power: Your Amigo will feel sluggish and weak, especially when accelerating or climbing hills.
- Stalling: The engine might cut out unexpectedly at a stoplight or while driving at low speeds.
- Poor Fuel Economy: When your engine misfires, it wastes fuel, causing you to fill up more often.
- Difficulty Starting: The engine may crank for a long time before starting, or it may not start at all. 🎬 See how to fix a no-start issue on 2.6L engines
Can I Drive with a Bad Ignition Coil?
It is not recommended. While the vehicle might still run, it will perform poorly and could stall in traffic. Continuing to drive with a misfire can send unburned fuel into the exhaust, which can quickly overheat and destroy your expensive catalytic converter.
Choosing the Right Aftermarket Ignition Coil
For a vehicle like the Amigo, original equipment (OEM) coils are likely discontinued or very expensive. The aftermarket is your best source for a new part. However, quality varies significantly between brands.
| Brand Tier | Brands | Honest Assessment |
|---|---|---|
| Premium Aftermarket | Delphi, Standard Ignition (SMP) | These brands have a strong reputation for quality and reliability, often meeting or exceeding original specs. They are a top choice for owners who want a dependable part that will last. Delphi is a well-regarded OE supplier for many manufacturers. Standard Motor Products is a long-trusted aftermarket name. |
| Mid-Grade / Standard | Walker Products, Spectra, Motorad | These brands offer a balance of price and quality. Walker is known for producing parts to OE standards. Spectra can be a good value, but some users report inconsistent quality, so it's a bit of a gamble. These are solid choices for a daily driver on a budget. |
| Economy / Value | DriveWire, Global Parts, Skyward | These brands are the most affordable. They are often private-label parts and may not have the same level of quality control or durability as premium brands. They can solve the immediate problem, but may have a shorter lifespan. Best for those on a tight budget or planning to sell the vehicle soon. |
Pro Tip: Replace Spark Plugs and Wires
🎬 Watch: Full tune up guide for first-generation Amigo modelsWhen replacing an ignition coil or coil pack, it's a great time to also install new spark plugs and spark plug wires (if equipped). Old, worn-out plugs and wires can strain the new coil, causing it to fail prematurely.
Frequently Asked Questions
Do I need to replace all the coils at once?
Your 1989-2000 Amigo only has one ignition coil or one coil pack that provides spark for all cylinders. So, you only need to replace the one unit.
Is replacing the Amigo ignition coil a DIY job?
Yes, for most home mechanics this is a very feasible job. Both the early canister coils and the later coil packs are easily accessible in the engine bay. The key is to label the electrical connector and, on V6 models, the spark plug wires before you begin.
Were there any recalls for the Isuzu Amigo ignition coil?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or specific investigations related to the ignition coils on the 1989-2000 Isuzu Amigo. Recalls found were for much newer Isuzu commercial trucks.
What is the most common mistake when ordering this part?
The most common mistake is ordering the wrong part for your engine. The 1st generation (1989-1994) 4-cylinder engines use a completely different canister-style coil than the 2nd generation (1998-2000) 4-cylinder and V6 engines, which use a coil pack. Always verify your Amigo's year and engine before purchasing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8-01101-038-0 8-94136-766-0 8944494941 8943718380 8971363250
Varies by engine. First generation (1989-1994) uses a single canister-style coil with a distributor. Second generation (1998-2000) uses a single block-style coil pack (waste spark system) with spark plug wires.
