Subaru Legacy Engine Coolant Thermostat Guide (1990-1996)
Keep your first-generation Legacy's engine temperature in check by choosing the right thermostat.
- A stuck-closed thermostat will cause rapid overheating and can destroy your engine; pull over immediately.
- A stuck-open thermostat will cause the engine to run too cool and the heater to blow cold air.
- Many Subaru owners strongly recommend using a genuine OEM thermostat for best fit and reliability.
- The thermostat is located at the bottom of the engine where the lower radiator hose connects.
Symptoms of a Bad Thermostat in a 1990-1996 Legacy
A thermostat can fail in two ways: stuck closed or stuck open. The symptoms for each are very different.
Stuck Closed: Critical Failure
This is the most dangerous type of failure. A stuck-closed thermostat traps coolant in the engine, preventing it from being cooled by the radiator. This leads to rapid overheating, which can cause severe engine damage like warped cylinder heads. Pull over immediately if you notice these signs:
🎬 Watch this video to easily identify a failing Subaru thermostat.- Temperature gauge quickly climbing into the red zone.
- Steam or smoke coming from under the hood.
- Boiling, gurgling, or rumbling sounds from the engine or radiator.
- Coolant leaking or boiling out of the overflow reservoir.
Stuck Open: Moderate Failure
A thermostat stuck open allows coolant to circulate constantly, preventing the engine from reaching its proper operating temperature. While less critical than overheating, it can lead to poor performance, increased engine wear, and bad fuel economy over time. Symptoms include:
- Temperature gauge stays on the low end and never reaches the middle.
- Heater blows lukewarm or cold air, especially in winter.
- Noticeably worse gas mileage.
- Check Engine Light with code P0128 may appear.

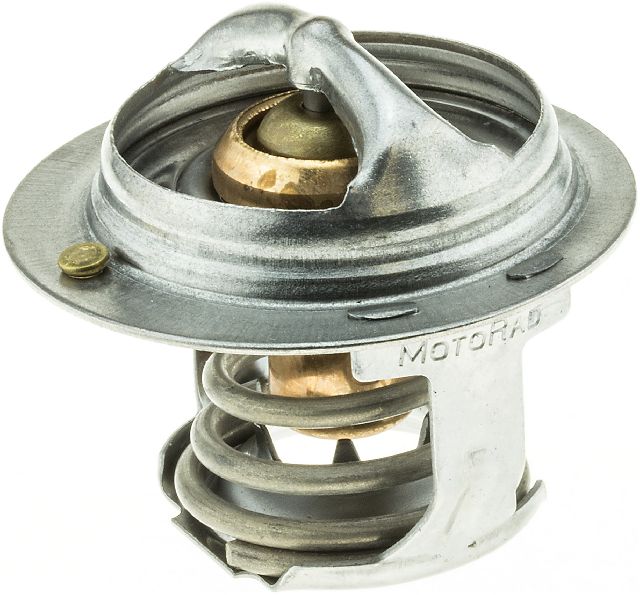

Choosing the Right Aftermarket Thermostat
For the first-generation Subaru Legacy, there is a strong consensus among owners and mechanics to use a genuine OEM Subaru thermostat if possible. Forum discussions frequently mention that OEM thermostats are built more robustly and are sized correctly, while some aftermarket parts can cause issues. However, if an OEM part isn't an option, here is an honest breakdown of available aftermarket brands.
A Note on Modern Subaru "Thermo Control Valves" (TCV)
Recent Subaru models (2019+) have known issues with a complex, electronically controlled "Thermo Control Valve" or TCV. Your 1990-1996 Legacy does NOT have this part. It uses a simple, reliable, mechanical wax thermostat. The TSBs and recalls for newer models do not apply to your vehicle.
Brand Quality Tiers
- Top Tier (Recommended Aftermarket): Beck Arnley, Gates
Beck Arnley specializes in sourcing parts that match OE form, fit, and function for import vehicles, making them a generally trusted option. Gates is a well-known brand, though some users report that their timing belt kits have included thermostats that failed prematurely. When buying Gates, ensure it is the correct physical size and temperature rating for your Legacy. - Specialty Tier (Use With Caution): Mishimoto
Mishimoto primarily offers "racing" thermostats that open at a lower temperature (e.g., 154°F or 165°F). These are designed for heavily modified or track-use cars. Using one in a stock daily-driven Legacy is not recommended, as it can prevent the engine from reaching its efficient operating temperature, hurting fuel economy and performance. - Economy Tier: Motorad
Motorad thermostats have very mixed reviews, with many mechanics and users reporting a high rate of failure, sometimes right out of the box. They are often considered a budget or temporary fix. Given the critical role of the thermostat, it is generally worth spending a little more for a higher-quality part to avoid the risk of overheating. - Other Brands: Calorstat, Facet
These brands are less commonly discussed in North American Subaru forums. While they may be viable, there is limited owner feedback available for Subaru applications.
Typical Replacement Costs
The cost to replace a thermostat on a 1990-1996 Legacy is relatively low. The part itself is inexpensive, and labor is straightforward.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $15 - $65 |
| New OEM Subaru Thermostat | $35 - $70 |
| Shop Labor | $100 - $180 |
| Total Professional Replacement | $120 - $250 |
Frequently Asked Questions (FAQ)
Where is the thermostat located on my 1990-1996 Legacy?
The thermostat is inside a housing where the lower radiator hose connects to the engine block. You will need to access it from underneath the vehicle. 🎬 See this step-by-step guide for replacing the thermostat and TPS. This is different from many older domestic cars where it is located on top of the engine.
Can I replace the thermostat myself?
Yes, this is a DIY-friendly job for someone with basic tools. The process involves draining the coolant, removing two bolts on the thermostat housing, swapping the part and its gasket, and then refilling and bleeding the cooling system. 🎬 Watch how to properly bleed air from your Boxer engine. Be sure to clean the housing surfaces before installing the new part.
Should I use a lower temperature 'racing' thermostat?
No, not unless your car is significantly modified for racing. For a stock engine, a lower temperature thermostat can prevent it from reaching its designed operating temperature, which can decrease fuel efficiency and increase engine wear. Stick with the OEM-specified temperature rating (typically 170°F or 78°C for this model).
Do I need to replace the gasket too?
Yes, always use a new gasket when replacing the thermostat. Most new thermostats come with a new gasket included. Reusing the old gasket will almost certainly cause a coolant leak.
Helpful Videos
Technical Specifications
OEM Part Numbers: 21200AA072
Standard opening temperature is typically 170°F (78°C). The thermostat is located on the engine block at the lower radiator hose inlet.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
