Ford Thunderbird Engine Timing Cover Gasket Set Replacement Guide for 1990-1998 Models
Leaking oil or coolant from the front of your engine? Your timing cover gasket may be the culprit.
- This is a major repair; choose a quality gasket brand like Victor Reinz to ensure a long-lasting seal.
- The gasket seals both oil and coolant, so leaks of either fluid from the front of the engine are a key symptom.
- While the timing cover is off, it is highly recommended to also replace the water pump, timing chain, and tensioners to save on future labor costs.
- Ensure you buy the correct kit for your specific engine (3.8L V6, 5.0L V8, or 4.6L V8) as they are not interchangeable.
Is Your Thunderbird's Timing Cover Gasket Failing?
Over many years and heat cycles, the original gaskets on your Thunderbird's engine become hard, brittle, and shrink. This leads to leaks, which are a common problem on these cars as they age. Since this is a labor-intensive repair, it's important to correctly identify the symptoms and choose a quality part to avoid doing the job twice.
Key Failure Symptoms:
- Oil Leaks: This is the most common sign. You'll see oil seeping from the front of the engine, often dripping down onto the oil pan or crossmember. The crankshaft pulley can also sling oil around the engine bay.
- Coolant Leaks: Because coolant flows through the timing cover on both the 3.8L V6 and 4.6L V8 engines, a bad gasket can cause a coolant leak. This can look like a leak from the water pump, so inspect carefully to find the exact source.
- Engine Overheating: A significant coolant leak will lead to low coolant levels, which can cause your engine to overheat if not addressed.
- Milky Engine Oil: This is a critical symptom. If the gasket fails between an oil passage and a coolant passage, the two fluids will mix. This turns the oil on your dipstick into a milky, coffee-like substance and can quickly cause catastrophic engine damage.
Vehicle-Specific Issues: 3.8L V6 Coolant Leak
For 1995-1997 models equipped with the 3.8L V6 engine, Ford issued an owner notification program for front cover gasket failures that specifically caused coolant leaks. While this program has long since expired, it highlights that these gaskets are a known failure point on the V6 models. If you have a V6, it is highly recommended to use a quality replacement gasket to prevent future issues.
Choosing the Right Aftermarket Gasket Set
For a job this involved, gasket quality is not a place to cut corners. Here’s a breakdown of the available brands to help you choose.
Brand Tiers
- OEM-Equivalent Quality (Recommended): Brands like Victor Reinz are highly respected in the repair industry and are often considered equivalent to the original factory part in terms of fit and material quality. They provide an excellent seal for a daily driver and long-term reliability.
- High-Performance / Racing: Sce Gaskets and Edelbrock cater to the racing and high-performance market. Sce specializes in robust copper and multi-layer steel (MLS) gaskets designed to handle extreme pressures from turbochargers or nitrous. These are overkill and unnecessarily expensive for a stock Thunderbird engine.
- Standard / Economy: Apex is a budget-friendly option that offers a complete line of gaskets stated to meet or exceed OEM specifications. While a viable option for a standard repair on a budget, professional mechanics often prefer to use higher-tier brands for a labor-intensive job like this.
Estimated Replacement Costs
The total cost depends on whether you do the work yourself or use a repair shop. This is a difficult job that requires draining fluids and removing many parts from the front of the engine.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $29 - $58 |
| Shop Labor | $720 - $1,200 |
| Total Estimated Cost (DIY) | $29 - $58 |
| Total Estimated Cost (Shop) | $749 - $1,258 |
Frequently Asked Questions (FAQ)
Do I need to use RTV sealant with the new gaskets?
Yes. While modern gaskets are high quality, it is standard procedure to apply a small dab of RTV sealant at any point where three surfaces meet. For this job, that means applying sealant where the bottom of the timing cover meets the engine block and oil pan, and where the top of the cover meets the cylinder heads.
What else should I replace at the same time?
Since you have to remove the water pump, harmonic balancer, and belts to get the timing cover off, it is highly recommended to replace them at the same time, especially if they are old. Also, inspect the timing chain, tensioners, and guides for wear. On 4.6L engines, the plastic timing chain tensioner arms are a known wear item. Replacing these parts now will save you from having to do all the labor again in the near future.
What's the difference for V6 vs. V8 engines?
The 1990-1997 Thunderbird used a 3.8L V6, a 5.0L V8 (1991-93), and a 4.6L V8 (1994-97). Each engine requires a different, specific timing cover gasket set. They are not interchangeable. Be sure to order the correct set for your vehicle's year and engine type.
Is this a good DIY project?
This is an advanced repair. It requires draining the coolant and oil, removing the radiator, serpentine belt, all engine accessories from the front, and using a special puller tool for the harmonic balancer. For a beginner, this job is likely too difficult. For an experienced DIY mechanic, it is manageable but time-consuming.
Technical Specifications
OEM Part Numbers: F1AZ-6020-A

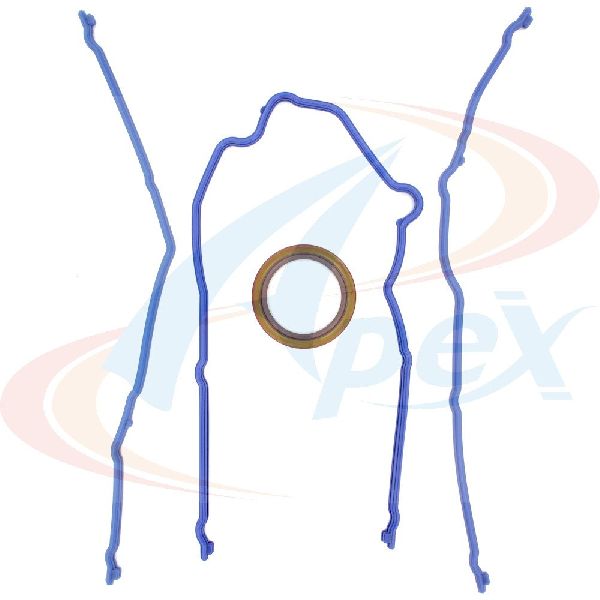

Kit typically includes timing cover gaskets, front crankshaft oil seal, and water pump gasket. Material composition varies by brand, from paper and cork/rubber composites to advanced multi-layered steel (MLS) and silicone.
