Universal Joint Guide for the 1991-1994 Mazda Navajo
Address driveshaft clunks and vibrations by choosing the right replacement U-joints for your Navajo.
- A clunk when shifting or a vibration at highway speed are serious symptoms that require immediate inspection.
- For longevity and strength, choose a premium non-greasable (sealed) U-joint from a brand like Dana Spicer.
- 4WD models have U-joints on both front and rear driveshafts, plus the front axle shafts; be sure to inspect all of them.
- DIY replacement is possible, but requires a bench vise or press. If you don't have these tools, professional installation is recommended.
Is Your Navajo's U-Joint Failing?
A failing U-joint is more than just an annoyance; it's a warning. Because the Mazda Navajo is a rebadged version of the first-generation Ford Explorer, it shares the same common U-joint failure symptoms. Ignoring these signs can lead to a detached driveshaft, causing significant damage to other parts of your vehicle and a loss of power to the wheels. 🎬 Watch this video to identify common failing U-joint symptoms. Listen for these key warning signs:
- Clicking or Squeaking Noises: A repetitive squeak or chirp that starts at low speeds (5-10 mph) is often the first sign. This is caused by a lack of grease inside the U-joint's needle bearings.
- Clunking Sounds: A distinct "clunk" or ringing noise when you shift from park into drive or reverse points to excessive play in a worn U-joint.
- Vibrations: A vibration that you can feel through the floor of the truck, which gets worse at highway speeds, is a common symptom of a bad U-joint throwing the driveshaft out of balance.
Choosing the Right Aftermarket U-Joint
For a vehicle from the early 1990s, original equipment (OEM) U-joints from Mazda are likely discontinued or difficult to find. The aftermarket offers excellent, high-quality replacements. The key decision is choosing between a greasable and a non-greasable (sealed) U-joint.
Greasable vs. Non-Greasable U-Joints
Non-Greasable (Sealed): These are often preferred for their strength and maintenance-free design, similar to the original factory parts. Because the cross isn't drilled for a grease fitting (zerk), it is structurally stronger. They are lubricated for life with high-quality synthetic grease and have better seals to keep contaminants out.
Greasable: These have a grease fitting that allows you to add new grease periodically. While this can extend their life if done regularly, the seals are designed to purge old grease and can let in contaminants more easily if maintenance is neglected. The hole for the grease fitting also creates a small weak point in the joint's cross.
Aftermarket Brand Tiers for Your Navajo
Based on extensive forum discussions and mechanic consensus, aftermarket U-joints for your Navajo can be grouped into the following quality tiers:
- Premium (OEM Quality or Better): Brands like Dana Spicer are often the original equipment manufacturer for many trucks and are considered a top-tier choice for durability and performance. Spicer's non-greasable "Spicer Life Series" joints are cold-forged for superior strength and use a triple-lip seal for longevity. 🎬 Learn more about the benefits of Spicer genuine drivetrain parts. Moog is another premium brand, known for engineering "problem solver" parts, though some users feel their quality has become less consistent recently compared to Spicer.
- Standard (Reliable Replacement): Brands like SKF and GMB are known for producing quality bearings and drivetrain components that meet or exceed OEM specifications. They offer a good balance of quality and value for a daily-driven vehicle.
- Performance/Heavy-Duty: Yukon Gear & Axle specializes in high-strength drivetrain components designed for off-road and high-horsepower applications. While likely overkill for a stock Navajo, they are a very high-quality option.
Estimated Costs for Universal Joint Replacement
| Part Type | Estimated Cost (Part Only) | Notes |
|---|---|---|
| New Aftermarket | $18.53 - $107.89 | Price varies by brand and whether it's greasable or sealed. Premium brands like Spicer are at the higher end. |
| Shop Labor | $110 - $224 | Covers the labor to replace one or two U-joints on a single driveshaft. |
Known Issues, Recalls, and TSBs
No specific recalls or Technical Service Bulletins (TSBs) were found for the universal joints on the 1991-1994 Mazda Navajo or the equivalent Ford Explorer. However, a TSB for a chattering noise from the rear differential on limited-slip models exists, which can sometimes be confused with a driveline vibration. General wear and tear from age and mileage is the primary cause of U-joint failure on these vehicles.
Frequently Asked Questions (FAQ)
How many U-joints does my 1991-1994 Mazda Navajo have?
A 2WD Navajo typically has two U-joints on the rear driveshaft. A 4WD model has two on the rear driveshaft, two on the front driveshaft, and one on each front axle shaft (for a total of six).
Can I replace a U-joint myself?
Yes, if you have mechanical experience. However, the job requires removing the driveshaft and using either a bench vise with large sockets or a hydraulic press to remove the old joint and install the new one. Improper installation can damage the new joint or the driveshaft yoke.
🎬 See how to replace U-joints without using special tools.Should I replace all the U-joints at once?
If one U-joint has failed due to age and mileage, the others are likely near the end of their service life as well. It is cost-effective from a labor standpoint to replace all the U-joints on the same driveshaft at the same time.
What is the most common mistake when ordering a U-joint?
The most common mistake is ordering the wrong size. The 1991-1994 Navajo/Explorer uses several different U-joint sizes depending on the driveshaft and axle configuration. It is critical to measure the bearing cap diameter and the overall width of your old U-joint or verify the exact part number before ordering.
Helpful Videos
Technical Specifications
U-joint sizes vary. Common bearing cap diameters for the 1991-1994 Navajo/Explorer are around 1-3/16 inches. It is essential to measure your existing U-joints or verify part numbers before purchasing.

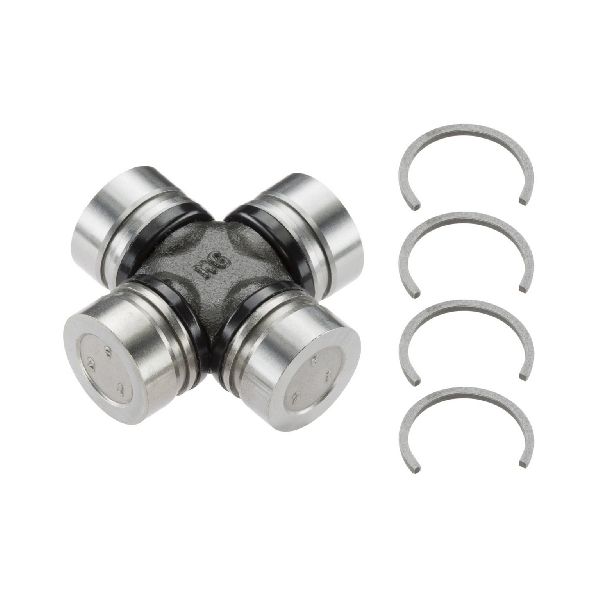

We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
