Buick Roadmaster A/C Clutch Cycle Switch Replacement Guide (1991-1996)
If your Roadmaster's A/C is blowing warm or not working at all, this simple switch could be the cause.
- A bad A/C clutch cycle switch is a common, cheap, and easy-to-fix cause of A/C problems on a 1991-1996 Roadmaster.
- Symptoms are nearly identical to being low on refrigerant; basic diagnosis is recommended before buying parts.
- Replacement is a 15-minute DIY job that does not require discharging the A/C system.
- No recalls have been issued for this part, but it is a known failure point on older GM vehicles.
Symptoms of a Failing A/C Switch in Your Roadmaster
When the A/C clutch cycle switch starts to fail, it will usually produce a few common symptoms. Because these big GM sedans and wagons share a similar A/C system, the problems are well-documented. You will likely notice one or more of the following issues:
- A/C Blows Warm or Hot Air: The most obvious sign. If the switch fails in the 'open' position, it will not send power to the compressor clutch, so the A/C system never starts.
- Inconsistent Cooling: The air from the vents may switch between cold and cool or warm. This can happen if the switch is sending erratic signals.
- Compressor Cycles Rapidly: You might hear the A/C clutch under the hood clicking on and off very quickly, every few seconds. This is known as short cycling and can be caused by a faulty switch or low refrigerant.
- A/C Doesn't Work at All: A completely failed switch will prevent the compressor from engaging, leading to a total loss of cold air.
Check Refrigerant First
Many symptoms of a bad A/C switch are identical to those of a system that is simply low on refrigerant. Before replacing the switch, it's wise to have the system pressure checked. On these Roadmasters, a low charge is a common reason for the compressor not engaging, as the switch is doing its job to protect the system.
Choosing the Right Aftermarket A/C Switch
For a vehicle like the 1991-1996 Roadmaster, new OEM (Original Equipment Manufacturer) parts from GM are often discontinued. The aftermarket is your primary source for a new A/C clutch cycle switch. The good news is that this is a simple, mass-produced part, and aftermarket versions are affordable and readily available.
Based on market availability, you'll likely encounter these brands:

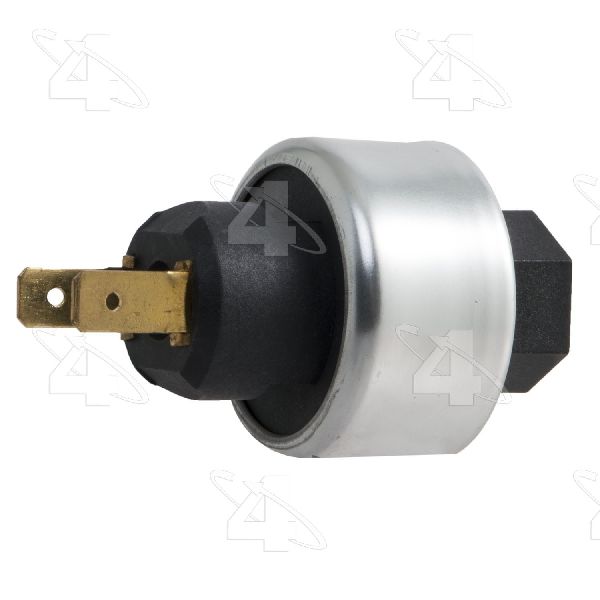

- Four Seasons: This is one of the most common aftermarket A/C parts brands. Forum discussions show mixed opinions; some users have had success with their new parts, while others are critical of the brand's overall quality, sometimes referring to them as a budget option. For a simple switch like this, it is generally considered a standard, acceptable replacement.

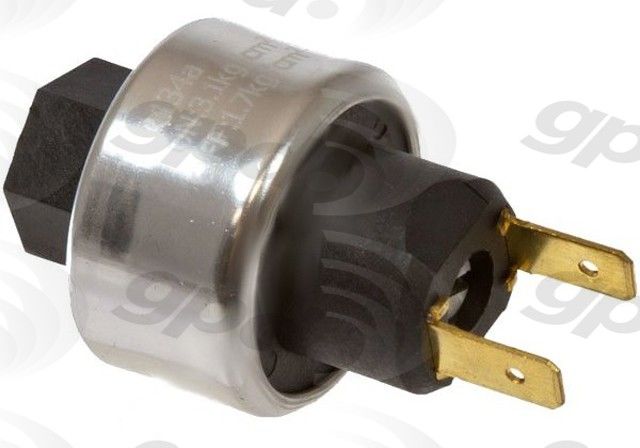

- Global Parts (GPD): Another aftermarket brand you may see. There is less public feedback on their switches, but they are a known supplier of A/C components. One user on a forum reported a GPD compressor clutch failing within a year, but this is a single data point.
Pro-Tip: Given the low cost and simple function of this part, both Four Seasons and Global Parts are viable options. The most important factor is ensuring the part is listed as a direct fit for your specific year and engine, as there were minor changes during the Roadmaster's production run.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $15.95 - $39.28 |
| New OEM | Generally Discontinued |
| Shop Labor for Installation | $50 - $125 |
Frequently Asked Questions (FAQ)
Is replacing the A/C clutch cycle switch a DIY job?
Yes, absolutely. This is one of the easiest A/C system repairs you can perform. The switch is located on the A/C accumulator (a metal can-like object) on the passenger side of the engine bay. It simply unscrews. The job requires basic hand tools (a wrench) and takes less than 15 minutes.
Do I need to drain the refrigerant to replace this switch?
No. The switch is threaded onto a Schrader valve, similar to a tire valve. When you unscrew the old switch, the valve will seal the system. You may hear a brief hiss of escaping gas, which is normal. You can then screw the new switch on without losing the system's refrigerant charge.
How do I know if the switch is bad or if I'm just low on refrigerant?
This is the key diagnostic question. The easiest way to test the switch is to bypass it. With the engine running and A/C on, carefully unplug the two-wire connector from the switch and use a small piece of wire or a paperclip to 'jump' the two terminals in the connector. If the A/C clutch engages and the compressor starts running, the switch is likely bad (assuming the system has enough refrigerant). If the clutch still doesn't engage, the problem lies elsewhere.
Are there any recalls or known issues for the Roadmaster's A/C?
There are no official NHTSA recalls for the A/C system on the 1991-1996 Buick Roadmaster. However, GM service bulletins from the era note that intermittent A/C operation can be caused by the cycling switch or related wiring and relays. On 1994-1996 models with electronic climate control, you can also access a hidden diagnostic menu by holding the 'Off' and 'Temp Up' buttons to check for system codes.
Technical Specifications
OEM Part Numbers: ACDelco 15-2353 (interchange)
Connector: 2-pin, male blade terminals. Thread Size: M12-1.50. On Pressure: ~44 psi. Off Pressure: ~22 psi. Refrigerant Compatibility: R134a (1994-1996), R12 (1991-1993, unless converted).
