GMC C3500HD Wiper Motor Guide for 1991-2002 Models
Having wiper problems on your GMT400 truck? Here's what you need to know before you replace the motor.
- The most common failure is the wiper pulse board, not the motor itself. Symptoms like intermittent operation or wipers only working on high speed often point to the board.
- Consider replacing just the pulse board first for a low-cost repair, which is available as a separate part.
- New aftermarket motors typically include a new pulse board, solving the most common issue with one part.
- Replacement is a straightforward DIY job, usually taking 1-2 hours with basic hand tools.
Is Your Wiper Motor Failing?
A faulty wiper motor on your GMC C3500HD can be a major safety issue, especially in bad weather. Recognizing the signs of failure early can save you from getting caught in a storm without working wipers. Pay attention to these common symptoms.
🎬 Watch this guide to identify common wiper motor failure symptoms.The #1 Issue: The Wiper Pulse Board
Before you buy a whole new motor, check the pulse board! The most common failure on these 1991-2002 GMC trucks is not the motor itself, but the small circuit board attached to it, often called the wiper pulse board or wiper control module. This board controls the delay settings and the park function. Bad solder joints on the board are a frequent problem, causing wipers to work intermittently, stop in the middle of the windshield, or only work on the highest speed setting. Many owners have fixed their wipers for a low cost by just replacing this board, or even by re-soldering the connections on the original board.

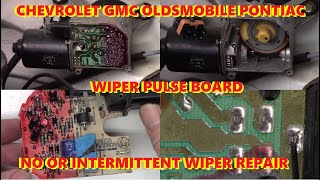

🎬 See how to repair the pulse board on your GMC.Choosing the Right Aftermarket Wiper Motor
If you've confirmed the entire motor needs replacement, you have several aftermarket options. Aftermarket parts for these trucks are widely available and can offer good value compared to finding a New Old Stock (NOS) OEM part. Most new aftermarket motors come with a new pulse board already installed, which is a smart way to solve the most common failure point.
Here’s a look at the brands available:
- Cardone: Cardone is a well-known brand that offers both new and remanufactured parts. Their new wiper motors (often under the "Cardone Select" line) are a popular choice and are generally considered a reliable replacement. Remanufactured units are also an option, but quality can sometimes be inconsistent.
- WAI Global: WAI is another major manufacturer of aftermarket electrical parts, including wiper motors. They are generally seen as a standard replacement-grade option. Some forum discussions suggest that different brands might sometimes re-label parts from the same factory, so a WAI motor could be very similar to a Cardone or other store brands.
- Replacement: This is typically a private-label or generic brand. These parts are built to be a direct fit and are often the most budget-friendly option. While they meet original specifications, they may not have the same long-term durability or rigorous testing as more established brand names.
Pro Tip: When replacing the wiper motor, it's also a great time to inspect the wiper linkage bushings. These small plastic parts can wear out, causing the wiper arms to move loosely or erratically. Replacing them is inexpensive and can prevent future problems.
Cost of a New Aftermarket Wiper Motor (1991-2002 GMC C3500HD)
| Part Type | Typical Price Range |
|---|---|
| New Aftermarket Wiper Motor Assembly | $73.97 - $104.83 |
| Aftermarket Wiper Pulse Board Only | $25 - $60 |
| Shop Labor for Installation | $100 - $200 |
Frequently Asked Questions (FAQ)
My wipers only work on high speed. Is the motor bad?
This is a classic symptom of a failed wiper pulse board, not necessarily the motor itself. The high-speed setting often bypasses the pulse board's circuitry. You may be able to solve the problem by replacing only the pulse board.
My wipers stop in the middle of the windshield. What's the cause?
This is another common sign of a faulty wiper pulse board. The board is responsible for the "park" function that returns the wipers to the bottom of the windshield. When it fails, the wipers can stop wherever they are when you turn them off. Sometimes, smacking the motor housing can make them work temporarily, which points to a bad connection on the board.
Is replacing the wiper motor a difficult DIY job?
For a 1991-2002 C3500HD, this is a very feasible DIY job for someone with basic tools. It typically involves removing the wiper arms and the plastic cowl cover to access the motor, which is held on by a few bolts. The most common difficulty is removing old, stuck wiper arms. The entire job usually takes about 1-2 hours.

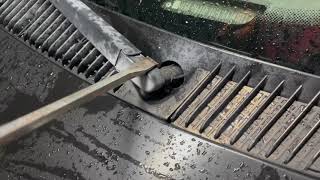

🎬 Follow this step-by-step video to replace your wiper motor.Should I buy a new motor or just the pulse board?
If your symptoms point to a pulse board failure (intermittent operation, no delay, won't park) and the motor itself isn't making grinding noises, replacing just the board is a cost-effective first step. However, if the motor is old or making noise, or if you prefer the peace of mind of a completely new unit, buying a full motor assembly is a good choice as it includes a new board.
Were there any recalls for the wiper motor on this truck?
Searches did not find any specific NHTSA recalls for the wiper motor on the 1991-2002 GMC C3500HD. While GM has had recalls for wiper issues on other models and years, this specific truck was not listed for this component. The issues experienced by owners are typically related to age and the common failure of the pulse board.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12367224 12368700 12368701 12463017 12463039 12463090 19168554 19178233 19254082
The wiper motor for the 1991-2002 GMC C3500HD is a 12V electric motor located on the engine firewall. It connects via a multi-pin electrical connector that receives signals from the wiper switch. Most models use a motor with an integrated but separately replaceable pulse board for intermittent wiper functions. The motor drives the wiper linkage via a small crank arm.
