Chevrolet Caprice Starter Motor Guide: 1992-1996 Models
Everything a Caprice owner needs to know before replacing a starter motor.
- For 1994-1996 LT1 models, a gear-reduction starter (often called a 'mini-starter' or 'Corvette starter') is the best choice to prevent common heat soak problems.
- Symptoms of a bad starter include a loud click with no crank, slow cranking with a good battery, or grinding noises.
- Replacement is a feasible DIY job for those comfortable working under the car, typically taking 1-2 hours.
- There are no specific recalls or TSBs for the starter; failures are due to normal wear and tear.
Is Your Caprice Starter Failing? Common Symptoms
A starter motor can fail gradually or suddenly. If your 1992-1996 Caprice is showing signs of starting trouble, it's important to diagnose it correctly to avoid being stranded. Don't confuse a bad starter with a weak battery; while symptoms can be similar, a healthy battery with a bad starter will still result in a no-start condition.
- Single Loud Click: You turn the key, and instead of the engine cranking, you hear one loud 'CLICK'. This often means the starter solenoid is engaging but the motor isn't turning. 🎬 Watch: Troubleshooting a single click no-start condition
- No Sound at All: If your battery is good and the dashboard lights come on, but there's no sound when you turn the key, the starter may have failed completely.
- Slow, Labored Cranking: The engine turns over very slowly, as if the battery is dead, even when it's fully charged. This points to a starter motor that is worn out and drawing too much power.
- Grinding Noise: A grinding sound during or after cranking can indicate that the starter's gear is not meshing properly with the flywheel, or it's failing to disengage.
- Heat Soak (Especially 1994-1996 LT1 Models): This is a very common issue on LT1-powered Caprice models. The engine starts perfectly when cold, but after it warms up and you shut it off for a short period, it will only click or crank very slowly. This happens because the starter is located close to the hot exhaust manifold, and the high temperature increases its internal resistance.
Special Note for 1994-1996 LT1 Engine Owners
The starter heat soak issue is notorious on the LT1 V8. The original, large direct-drive starters are highly susceptible. When replacing a starter on an LT1 Caprice, it is strongly recommended to upgrade to a modern gear-reduction starter. These are often smaller, lighter, more powerful, and far more resistant to heat soak. Many owners also install a starter heat shield for extra protection.
Choosing the Right Aftermarket Starter
For a vehicle like the 1992-1996 Caprice, new aftermarket starters offer excellent value and, in some cases, superior performance to the original design. Here’s a breakdown of the available brands.
Brand Quality Tiers
Tier 1: Performance/Problem-Solver (Powermaster, Proform)
These brands specialize in high-torque, gear-reduction starters. They are the best choice for LT1 owners looking to permanently solve heat soak issues or for those with modified engines. Powermaster is a well-regarded brand offering starters that are lightweight, powerful, and provide better clearance for exhaust modifications. Proform also offers high-torque mini-starters, though some user reviews indicate potential for premature failure. These starters are often called "mini-starters" and are a popular upgrade.
Tier 2: OEM-Grade Replacement (ACDelco)
ACDelco is GM's original parts brand and offers new and remanufactured starters that are designed to be direct replacements. An ACDelco starter is a reliable, safe bet for a stock 1992-1993 Caprice with a 5.0L or 5.7L TBI engine. For LT1 models, consider their gear-reduction starter options, sometimes listed for the Corvette, which are a common upgrade.
Tier 3: Standard Aftermarket (MPA - Motor Parts of America)

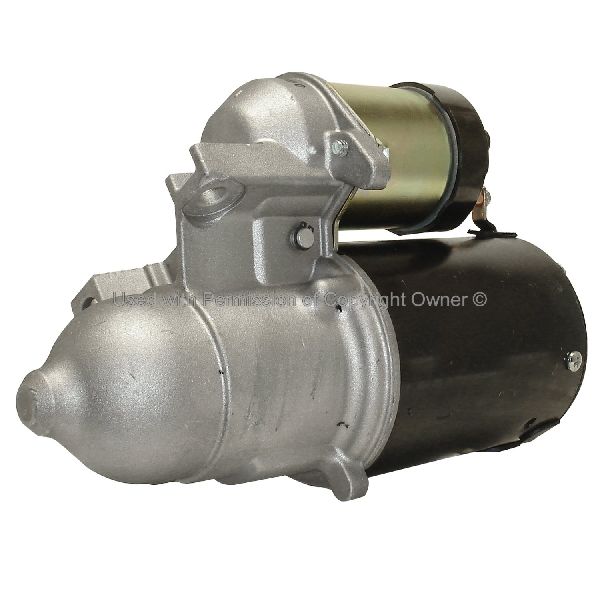

MPA is a major manufacturer of new and remanufactured starters sold under various brand names, including Quality-Built. These starters are designed to meet or exceed original specifications and offer a cost-effective solution for a daily driver. They provide reliable performance for standard, non-modified vehicles.
Aftermarket Starter Cost (1992-1996 Caprice)
| Brand Tier | Example Brands | Estimated Price Range | Best For |
|---|---|---|---|
| Performance/Problem-Solver | Powermaster, Proform | $170 - $385 | 1994-1996 LT1 engines, solving heat soak, modified cars |
| OEM-Grade Replacement | ACDelco | $110 - $250 | Stock replacement, retaining originality |
| Standard Aftermarket | MPA (Quality-Built) | $85 - $180 | Budget-conscious repairs on stock vehicles |
Frequently Asked Questions
Do I need a special starter for my LT1 Caprice?
While a standard replacement will work, it is highly recommended to upgrade to a gear-reduction or "mini-starter" for the 1994-1996 LT1 engine. This design is more efficient, lighter, and significantly reduces the chances of heat soak, a common problem where the starter fails to engage when the engine is hot. Many owners use a starter intended for a C4 Corvette, 🎬 See how to swap an LT1 starter for a Corvette unit as it's a compatible gear-reduction unit.
What is a gear-reduction starter?
A gear-reduction starter uses a set of internal gears to multiply the torque produced by its small, high-speed electric motor. This allows it to be smaller and lighter than the old, large direct-drive starters while providing more cranking power and drawing less current from the battery. This efficiency is what helps it overcome heat soak conditions.
Are there any recalls for the starter on my Caprice?
A search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls or technical service bulletins (TSBs) directly related to the starter motor for the 1992-1996 Chevrolet Caprice. Any starting issues are typically due to age-related wear and tear.
Is replacing the starter a difficult job?
For the Caprice, starter replacement is a moderately difficult DIY job. It requires safely jacking up the vehicle and working from underneath. The starter is held on by two bolts and has two wire connections. On some models, particularly those with single exhaust, an exhaust pipe or a cross member may need to be maneuvered or removed to gain clearance to extract the old starter. The job typically takes 1-2 hours for someone with mechanical experience.
🎬 Watch this step-by-step starter replacement walkthroughHelpful Videos
Technical Specifications
OEM Part Numbers: 10465097 10455012 9000773
Engine compatibility varies by year. 1992-1993 models typically use a large, direct-drive starter. 1994-1996 LT1 models originally came with a large direct-drive starter but are commonly upgraded to a smaller, more efficient gear-reduction starter. All use a 2-bolt mounting pattern.
