Engine Coolant Thermostat Guide for 1992-1997 Chevrolet Impala
Keep your Impala's LT1 engine from overheating or running too cold by choosing the right thermostat.
- For a stock 1992-1997 Impala, use a 180°F thermostat; a 160°F unit requires a computer tune to work correctly.
- Symptoms of failure include overheating (stuck closed), running too cold (stuck open), and the P0128 check engine light code.
- ACDelco is the recommended OEM-quality brand, with Gates and Stant Super-Stat being reliable aftermarket alternatives.
- Replacement is a DIY-friendly task, but be sure to properly bleed the air out of the LT1's cooling system afterward using the bleeder screw.
Is Your Impala's Thermostat Failing?
A bad thermostat in your 1992-1997 Chevrolet Impala can cause noticeable problems. The LT1 engine is sensitive to temperature, and a faulty thermostat can lead to poor performance and even engine damage. The most common failure is the thermostat getting stuck in either the open or closed position.
Symptoms of a Bad Thermostat:
- Engine Overheating: If the thermostat is stuck closed, it won't allow coolant to flow to the radiator. This causes the engine to overheat quickly, which can lead to serious damage like warped heads. You may see the temperature gauge climb into the red and coolant boiling in the reservoir.
- Engine Running Too Cold: A thermostat stuck open will constantly circulate coolant, preventing the engine from reaching its proper operating temperature. This can lead to poor fuel economy, reduced heater performance, and may trigger a Check Engine Light with code P0128.
- Temperature Gauge Fluctuating: If the temperature gauge needle moves erratically from cool to hot, it can be a sign that the thermostat is struggling to regulate temperature.
- Poor Heater Performance: If your heater is blowing cool air, it could be because the engine isn't getting hot enough due to a thermostat stuck open.
- Coolant Leaks: A thermostat housing can leak coolant, especially if it's old or was installed incorrectly. Leaks can also occur from increased pressure when an engine overheats from a stuck-closed thermostat.
A Note on Lower Temperature Thermostats
You will find aftermarket thermostats rated at 160°F for the LT1 engine. These are marketed as "racing" or "performance" thermostats. While they allow coolant to circulate sooner, they also require your engine's computer (PCM) to be reprogrammed to adjust the cooling fan activation temperatures. Without a tune, using a 160°F thermostat can cause the engine to run in a constant state of warm-up, leading to poor performance, bad fuel mileage, and a P0128 trouble code. For most daily-driven vehicles, sticking with the stock 180°F rating is recommended.
Choosing the Right Aftermarket Thermostat
For a critical part like a thermostat, quality matters. While OEM is often a safe bet, several reputable aftermarket brands offer reliable options for your Impala. Given the age of the vehicle, a quality aftermarket part often meets or exceeds the original specifications.
Brand Quality Tiers

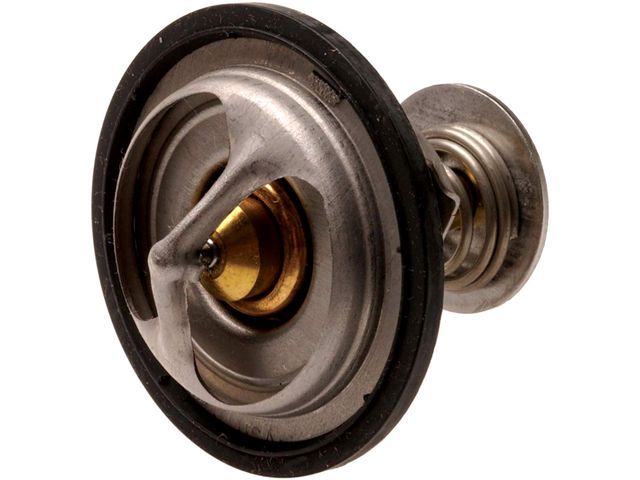

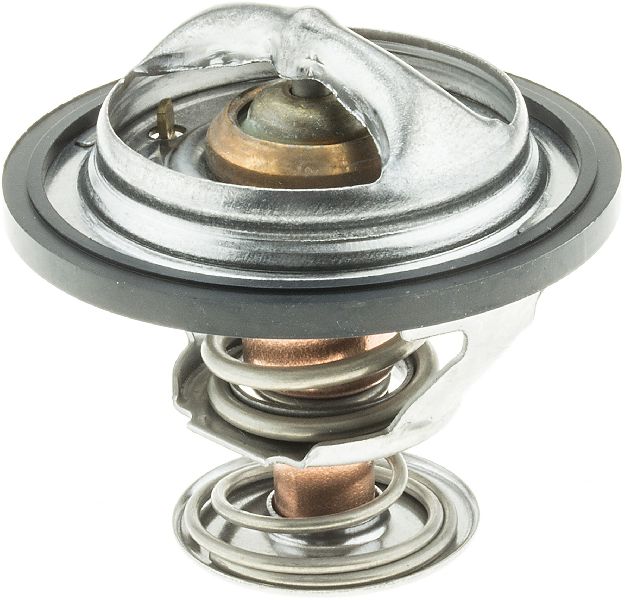

- Tier 1 (High Quality): ACDelco is the original equipment manufacturer for GM and is generally the most recommended brand for a direct, reliable replacement. Many owners and mechanics trust it to perform correctly out of the box. Gates and Stant (specifically the "Super-Stat" model) are also considered high-quality aftermarket choices that often have a good reputation for reliability.
- Tier 2 (Standard Quality): Motorad is a massive producer of thermostats and manufactures them for many other brands. While some have success with them, others report premature failures. They are a budget-friendly option but may have less consistent quality control than Tier 1 brands.

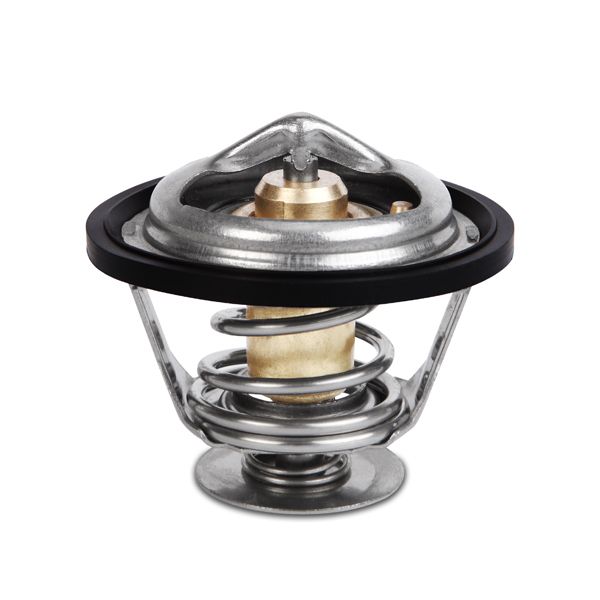

- Tier 3 (Performance): Mishimoto specializes in performance cooling products, including lower-temperature thermostats for the LT1. These are well-made but are intended for modified vehicles and require computer tuning to be effective. They are not a simple drop-in replacement for a stock engine.
Pro Tip: Replace the Seal
The LT1 thermostat uses a specific rubber O-ring seal instead of a traditional paper gasket. Always replace this seal when you replace the thermostat to prevent leaks. Most quality thermostats come with a new seal included.
Cost of Replacing an Impala Thermostat
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $18.51 - $64.34 |
| Shop Labor | $90 - $150 |
| Total Estimated Cost (Parts + Labor) | $108.51 - $214.34 |
Frequently Asked Questions
Are there any recalls on the 1992-1997 Impala thermostat?
No, there are no specific recalls for the engine coolant thermostat on the 1994-1996 Chevrolet Impala SS. However, there was a Technical Service Bulletin (TSB) related to the cooling system reservoir on some early models that could affect heating performance.
Is it difficult to replace the thermostat on an LT1 Impala?
Replacing the thermostat is a relatively straightforward job for a DIY mechanic with basic tools. It's located on the front of the water pump, under the air intake assembly. The main steps involve draining some coolant, removing the air intake, unbolting the thermostat housing, swapping the part, and then refilling and bleeding the air from the cooling system. There is a bleeder screw near the throttle body to help remove trapped air.
Should I use a 160°F or 180°F thermostat?
For a stock or lightly modified Impala, a 180°F thermostat (the original temperature rating) is the best choice. A 160°F thermostat will cause the engine to run too cool unless you also reprogram the engine computer for the lower temperature, which is typically only done for heavily modified or racing applications.
What is the P0128 code?
The P0128 trouble code means "Coolant Temperature Below Thermostat Regulating Temperature." This code is set when your car's computer detects that the engine is not warming up as quickly as it should. The most common cause is a thermostat that is stuck open.
Technical Specifications
OEM Part Numbers: 12TH10D 131-100
Stock Temperature Rating: 180°F (82°C). The LT1 uses a reverse-flow cooling system, so the thermostat is located on the water pump inlet.
