Chevrolet Impala Starter Replacement Guide for 1994-1996 Models
Solve common starting problems in your Impala SS, from heat soak to complete failure.
- The most common vehicle-specific issue is starter 'heat soak' due to its proximity to the exhaust; a heat shield or high-torque starter is the best fix.
- Before replacing the starter, always test the battery and clean the cable connections, as a weak battery is the most common cause of a no-start condition.
- If your old starter used thin metal shims for alignment, you must transfer them to the new starter to prevent damage to the flywheel.
- The job is DIY-friendly, typically requiring only two mounting bolts and two wire connections to be removed from under the car.
A Note on Vehicle Years
This guide is for the 1994-1996 Chevrolet Impala SS. While the prompt mentions 1992-1997, the Impala SS nameplate for this generation was only used from 1994 to 1996. These models share the same GM B-body platform and LT1 V8 engine as the Caprice, making this information relevant for those vehicles as well.
Common Failure Symptoms
A starter rarely fails without giving some warning signs. If your Impala is having trouble starting, listen and feel for these common symptoms.
- Slow Engine Crank: The engine turns over sluggishly, as if the battery is weak. This can be caused by worn internal parts in the starter that reduce its torque.
- Single Loud Click: You turn the key and hear one sharp "click," but the engine doesn't turn over. This often points to a bad starter solenoid that is engaging but the motor isn't spinning.
- Rapid Clicking: A fast clicking sound usually means the battery is too weak to turn the starter, but it can sometimes be a sign of a starter problem.
- Grinding Noise: A harsh grinding sound when you try to start the car, or just after the engine fires up, can mean the starter gear is damaged or not meshing correctly with the flywheel.
- Intermittent Starting: The car starts perfectly one day but refuses to crank the next. This is a classic sign of a starter that is about to fail completely.
- Smoke or Burning Smell: Trying to start the car repeatedly with a failing starter can cause it to overheat, leading to smoke from under the hood. This can be caused by oil leaks dripping onto the starter as well.
Known Issue: Starter Heat Soak
A very common problem on the LT1-powered Impala SS is "starter heat soak." This happens because the starter is located very close to the hot exhaust manifold. The intense heat increases the starter's internal electrical resistance, preventing it from working when the engine is hot. Typically, the car will fail to start after a drive, but will then start normally after it has cooled down for 20-30 minutes. If you experience this, a permanent fix is to install a starter heat shield 🎬 Watch: How to fix LT1 starter heat soak issues or upgrade to a high-torque, gear-reduction starter.
Choosing the Right Aftermarket Starter
When your original starter fails, you have several options. For a daily driver, a quality new aftermarket starter offers a great balance of price and reliability.

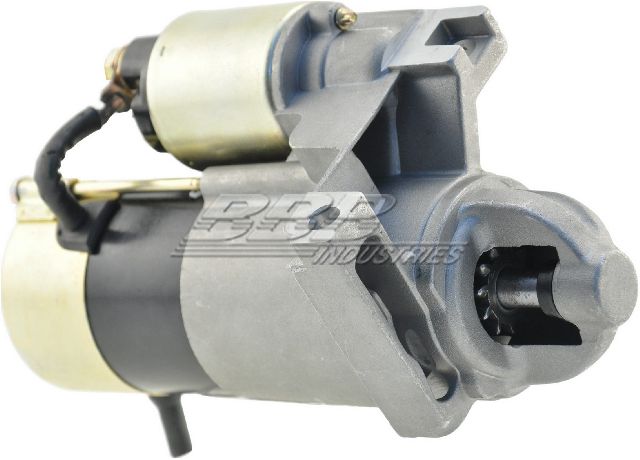

- New Aftermarket (BBB Industries, Remy): Brands like BBB Industries and Remy are major suppliers of aftermarket parts. BBB Industries is a large remanufacturer that also produces new units, and they supply parts for many well-known auto parts stores. Remy is also a common brand that many have used with success, though like any aftermarket part, occasional defects are reported. For a standard replacement, a new unit from either of these brands is a solid, cost-effective choice.
- High-Torque / Mini-Starters (Powermaster, etc.): If you struggle with heat soak or have a modified, high-compression engine, upgrading to a high-torque starter is a smart move. These are often smaller, lighter, and use a gear-reduction design that provides more cranking power with less energy. The starter from a 1996 Corvette (with the LT4 engine) is a popular, smaller OEM upgrade that bolts right in. 🎬 See this walkthrough for installing a Corvette starter upgrade
Do I Need Shims?
GM starters from this era sometimes used thin metal shims to create the perfect distance between the starter gear and the flywheel. If you remove your old starter and find shims, you must install the new starter with the same shims. If you hear a grinding noise after installation, you may need to adjust the shims to get the clearance right.
Cost to Replace a 1994-1996 Impala Starter
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket (BBB, Remy) | $101 - $184 |
| New OEM (ACDelco) | $165 - $230 |
| Remanufactured | $70 - $150 |
| Shop Labor | $120 - $250 |
Note: Prices are estimates and can vary based on location, supplier, and brand. Labor costs are based on an estimated 1-2 hours of work.
Frequently Asked Questions (FAQ)
Can I replace the Impala starter myself?
Yes, this is a very DIY-friendly job for someone with basic tools. It involves disconnecting the battery, safely jacking up the car, removing two mounting bolts and two wires. It typically takes about one to two hours.
🎬 Watch: Step-by-step guide to changing your Impala SS starterIs a clicking sound always a bad starter?
Not always. A rapid clicking noise is most often caused by a weak or dead battery that doesn't have enough power to turn the starter over. A single, loud click, however, is a much stronger indication that the starter itself has failed.
What's the difference between a new and a remanufactured starter?
A new starter is made with 100% new components. A remanufactured starter is a used OEM core that has been disassembled, cleaned, and rebuilt with any worn or failed components being replaced. Quality remanufactured units can be reliable, but new units often provide more peace of mind.
Should I replace my battery and starter at the same time?
Not necessarily. Always test the battery and check the cable connections first, as these can mimic starter problems. If the battery is old and the starter fails, replacing both can be a good preventative measure, but it's not required if the battery tests healthy.
What tools are needed to replace the starter?
You will typically need a ratchet with extensions, a 15mm socket for the mounting bolts, and 8mm and 13mm sockets for the electrical connections. You will also need a jack and jack stands to safely lift the vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10455338 19135435 9000762 9000821
The 1994-1996 Impala SS uses a gear-reduction starter for the LT1 V8 engine. It mounts to the engine block with two bolts. An optional upgrade is the smaller, lighter starter from a 1996 Corvette with the LT4 engine, which is a direct fit.
