A Mechanic's Guide to the 1992-1997 GMC Yukon 4WD Actuator
If your Yukon's four-wheel drive isn't engaging, the front axle actuator is the most likely problem.
- The original thermal actuator is a known weak point; it's slow and fails often, especially in the cold.
- Upgrading to a modern electric motor-style actuator is the best long-term fix for faster, more reliable 4WD engagement.
- Replacement is a very easy DIY job that takes less than an hour with basic tools.
- Symptoms are straightforward: 4WD won't engage and/or the indicator light just blinks.
Is Your 4WD Failing? Signs of a Bad Actuator
When the 4WD actuator on your 1992-1997 Yukon starts to fail, the symptoms are usually straightforward. The most common issue is that your four-wheel drive simply won't engage when you shift the lever or press the button. You might hear the transfer case shift, but the front wheels never get power.
If you have the electronic push-button 4WD system, you may notice the indicator light on the switch just blinks instead of turning solid. In less common cases, a shorted-out actuator can repeatedly blow the 4WD fuse in your fuse box. While other parts like the dash switch or transfer case motor can fail, the front actuator is the first place to look for these symptoms.
Choosing the Right Aftermarket Actuator: Good, Better, Best
You have three main choices when buying a new aftermarket actuator for your Yukon. The original thermal design was not great, and aftermarket companies have provided better solutions.
| Brand Tier | Actuator Type | Description |
|---|---|---|
| Value (Replacement Brand) | Thermal | This is a direct, like-for-like replacement for the original part. It's the most affordable option but uses the same slow-engaging thermal technology that is prone to failure, especially in the cold. It will get your 4WD working again, but don't expect fast engagement. |
| Standard Replacement (Standard Ignition, Dorman) | Thermal or Electric | Brands like Standard Ignition offer high-quality thermal replacements that meet or exceed original specs. Dorman offers both a standard thermal replacement and an upgraded electric motor version. The electric motor design is a significant improvement, offering much faster and more reliable engagement. |

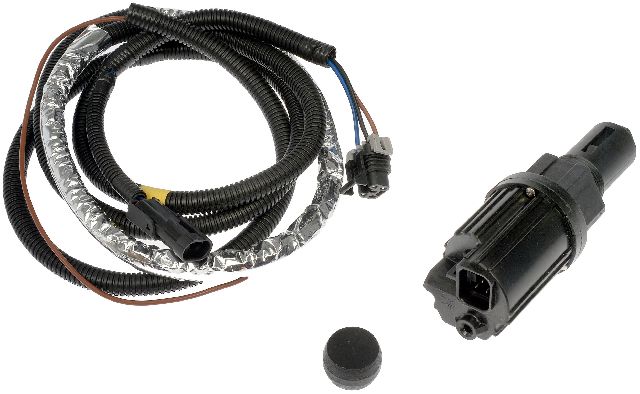

| Premium Upgrade (Dorman Electric Kit, Posi-Lok) | Electric Motor or Manual Cable | For the best performance, choose an upgraded electric actuator kit. Dorman's kit often includes the necessary wiring adapter to easily retrofit the faster electric motor onto your truck. For ultimate reliability, a 4x4 Posi-Lok system replaces the actuator entirely with a manual cable you pull from the cab, giving you direct control. This eliminates all electronic failure points. |
Known Issues for 1992-1997 GMC Yukon
A General Motors Technical Service Bulletin (TSB) from 1998 acknowledged that the original thermal actuators are slow to engage or may not engage at all in cold temperatures. The recommended fix from GM was to replace the thermal unit with the newer, faster electric motor-style actuator. This is not a safety recall, but an official recognition of the part's poor performance.
Typical Replacement Costs
The cost to replace your 4WD actuator depends on the part you choose and whether you do the work yourself. The job is simple enough for most DIY mechanics.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $60 - $250 |
| Shop Labor | $75 - $150 |
| Total Professional Replacement | $135 - $400 |
Pro Tip: Installation
Replacing the actuator is one of the easier jobs on this truck. It simply unscrews from the front differential housing. You'll need a large adjustable wrench or channel-lock pliers. Unplug the wire, unscrew the old unit, screw the new one in until it's snug, and reconnect the plug. The entire job can often be done in less than 30 minutes.
Frequently Asked Questions
Why is my 4WD so slow to engage in the winter?
This is the classic symptom of the original thermal actuator. It relies on an internal heater warming up wax to push the engagement pin, a process that is naturally very slow in cold weather. Upgrading to an electric motor-style actuator will solve this problem entirely, providing instant engagement.
Can I replace the 4WD actuator myself?
Yes, this is a very common and easy DIY repair. It requires basic hand tools and can be done with the vehicle on the ground or on jack stands for more room. The process involves unplugging a connector and unscrewing the part from the front differential.
What is the difference between a thermal and an electric actuator?
A thermal actuator uses heat to slowly expand and push a pin, while an electric actuator uses a small motor to instantly move the pin. The electric design is much faster and more reliable. Many owners of 1992-1997 Yukons choose to upgrade to the electric style.
Is it better to upgrade to an electric actuator?
For reliability and performance, yes. The upgraded electric motor actuator engages instantly, regardless of temperature, and fixes the main design flaw of the original part. Brands like Dorman offer kits that make this an easy swap.
Technical Specifications
OEM Part Numbers: 26060073 26013495
Screws into the front differential housing; features a 2-wire electrical connector. Original design is a thermal linear actuator.
