Ford F-250 Vehicle Speed Sensor Guide (1992-2000)
Having shifting problems or a dead speedometer? Your Vehicle Speed Sensor (VSS) is the likely cause.
- Symptoms usually include a dead speedometer, harsh shifting, and an ABS light all at once.
- The VSS is almost always located on top of the rear differential and is an easy DIY replacement.
- Before replacing the sensor, check the fuse and inspect the wiring harness for damage, as this is a common point of failure.
- Separately, check if your truck has had the critical cruise control deactivation switch recall performed to prevent a fire risk.
Symptoms of a Failing VSS
A bad vehicle speed sensor on your F-250 will make itself known quickly. The signs are hard to ignore and often appear together.
- Erratic or Dead Speedometer: The most obvious sign is a speedometer that jumps around wildly or doesn't move at all.
- Harsh or Incorrect Shifting: The automatic transmission relies on the VSS signal to shift smoothly. Without it, you'll experience hard, delayed, or erratic shifts as the transmission goes into a "limp mode."
- ABS Light On: The VSS on the rear differential also provides a signal for the Rear Anti-lock Brake System (RABS). A bad sensor will usually trigger the ABS warning light on your dash.
- Cruise Control Not Working: The cruise control system needs to know the vehicle's speed to function. If the VSS signal is lost, the cruise control will not engage.
- Check Engine Light: A failed VSS can trigger a Check Engine Light and store diagnostic trouble codes, most commonly P0500.
A Critical Recall to Check: The Cruise Control Deactivation Switch
Many Ford trucks from this era, including the F-250, were part of a massive recall for a faulty cruise control deactivation switch. This switch, located on the brake master cylinder, could leak brake fluid, short circuit, and cause a fire, even when the truck was parked and turned off. While not the same part as the VSS, its failure can cause the cruise control to stop working. It is critical to check if your truck has had this recall service performed. The fix involves installing a fused wiring harness that prevents a fire. You can contact a Ford dealership with your VIN to check your truck's recall status.
Choosing the Right Aftermarket VSS
For a part like the VSS, you don't necessarily need to pay for a dealership OEM part. Many aftermarket brands offer reliable replacements that provide excellent value. Here’s a breakdown of the brands available:
- Top Tier (OEM Quality): Brands like Delphi and NGK (NTK) are well-respected manufacturers that often supply original parts to automakers. They are known for their quality and reliability, making them a solid choice if you want peace of mind.
- Reliable Mid-Range: Standard Ignition (SMP) is a long-standing aftermarket brand with a reputation for producing quality parts that meet or exceed OEM specifications. They are a trusted choice for professional mechanics and DIYers alike.
- Value-Focused: Brands like Dorman, Walker Products, and True Tech offer a more budget-friendly option. Dorman is known for making a huge variety of replacement parts, and for a simple sensor like this, they are often a perfectly acceptable choice. However, some forum users prefer to stick with Motorcraft or other premium brands for electronic components to ensure longevity.
Pro Tip: Before you replace the sensor, first check Fuse #8 in the fuse panel under the steering wheel. Also, carefully inspect the wiring harness leading to the sensor. The wires can become brittle, corroded, or chafed over time, causing the exact same symptoms as a failed sensor. Sometimes, only the pigtail connector needs to be replaced.

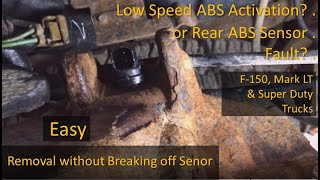

🎬 See how to troubleshoot and replace the rear ABS sensor.Cost of Replacing a Vehicle Speed Sensor
| Part Type | Price Range |
|---|---|
| New Aftermarket | $20 - $60 |
| New OEM (Motorcraft) | $50 - $90 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Where is the VSS located on my 1992-2000 F-250?
For the vast majority of these trucks, the main vehicle speed sensor (VSS) is located on the top of the rear differential housing. It is held in place by a single bolt (often 10mm or 13mm) and has a two-wire electrical connector. Some 2WD models or those with specific transmissions might have a sensor on the transmission tail shaft, but the rear differential location is far more common for this generation.
Is this a difficult part to replace myself?
No, this is a great DIY job for beginners. It typically takes less than 30 minutes. You'll need to safely get under the truck, unplug the electrical connector, remove one bolt, and then gently pry the old sensor out. 🎬 Watch this quick walkthrough of the VSS replacement process. Sometimes the old sensor can be stuck by its O-ring, so a little penetrating oil and gentle wiggling may be needed.
I replaced the VSS, but my speedometer still doesn't work. Now what?
If a new sensor doesn't fix the issue, the problem is likely in the wiring or the instrument cluster itself. First, check for a blown fuse. Next, carefully inspect the wiring harness from the sensor up along the frame for any breaks, corrosion, or damage. If the wiring is good, the problem could be the PSOM (Programmable Speedometer/Odometer Module) located behind the instrument cluster, which is a known 🎬 Watch this guide on repairing a 1992 F-250 speedometer. but less common failure point.
Is the VSS the same as the ABS sensor?
On these trucks, the sensor on the rear differential serves both purposes. It provides the vehicle speed signal for the speedometer and transmission, and it also acts as the rear wheel speed sensor for the Rear Anti-Lock Brake (RABS) system. That's why a failure of this one sensor causes issues with the speedometer, shifting, and the ABS light all at once.
Helpful Videos
Technical Specifications
OEM Part Numbers: F85Z-9E731-AB F65Z-9E731-AB F4AZ-7H103-A
The primary Vehicle Speed Sensor (VSS) for 1992-2000 Ford F-250s is typically a variable reluctance sensor located on the rear differential. It generates an AC signal that corresponds to vehicle speed. A separate, but related, issue is the recalled cruise control deactivation switch located on the brake master cylinder.
