Ford Bronco Vehicle Speed Sensor Guide for 1993-1997 Models
Solve your Bronco's shifting and speedometer problems by understanding its Vehicle Speed Sensor.
- A bad VSS is a very common cause of speedometer, ABS, and transmission shifting problems on the 1993-1997 Bronco.
- The sensor is located on top of the rear differential and is easy to replace yourself in under 30 minutes.
- Many owners recommend using the OEM Motorcraft sensor to avoid issues like a bouncing speedometer that can occur with cheaper aftermarket parts.
- Before replacing, check the magnetic tip of the old sensor for metal shavings, which can indicate other problems but sometimes just needs cleaning.
Understanding VSS Failure in Your Bronco
If you own a 1993-1997 Ford Bronco, you know how tough these trucks are. But certain parts wear out, and the Vehicle Speed Sensor (VSS) is a common one. This sensor is located on the top of the rear differential. It's also sometimes called the rear ABS sensor, which can be confusing when buying a replacement. Its job is to read the speed of a ring inside the differential and turn that into an electronic signal. This signal controls your speedometer, cruise control, and automatic transmission shifting. When it fails, it can make your Bronco difficult, and even unsafe, to drive.
Choosing the Right Aftermarket VSS
When it's time to replace your VSS, you have a few options. You can choose between the original Ford part (Motorcraft) or several aftermarket brands. For a critical sensor like this, quality matters.
- Motorcraft (OEM): This is the original equipment manufacturer. Many Bronco owners and mechanics strongly recommend sticking with Motorcraft for electronic parts like the VSS. Aftermarket sensors can sometimes cause a bouncing speedometer needle right out of the box, a problem that the OEM sensor usually fixes. While it's the most expensive option, it provides the highest likelihood of a first-time fix without issues.
- NGK (NTK): NGK, which sells sensors under the NTK brand, is a well-respected OEM supplier for many car companies. They are known for making high-quality sensors that are a reliable alternative to the factory part. If you're looking for a top-tier aftermarket option that is often more affordable than Motorcraft, NTK is a solid choice.
- Standard Ignition (SMP): Standard Motor Products is a long-standing aftermarket brand. Their parts are generally considered a mid-tier, reliable option. They offer a good balance of quality and price for owners who need a dependable replacement without the OEM cost.
- Walker Products: Walker is another established aftermarket brand. They typically offer a more budget-friendly option. While they can be a good value, for sensitive electronics like the VSS, some owners prefer to stick with brands that have a stronger reputation for OEM-level quality to avoid potential compatibility issues.
Cost Comparison for 1993-1997 Ford Bronco VSS
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $21 - $60 |
| New OEM (Motorcraft) | $65 - $270 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Where is the VSS located on my 1993-1997 Bronco?
The Vehicle Speed Sensor is located on the top of the rear differential housing. It is held in by a single bolt (usually requiring a 1/2 inch or 12mm socket) and has an electrical connector plugged into it. It is the same sensor used for the rear anti-lock brakes (ABS).
Can I replace the VSS myself?
Yes, this is a very easy job for a DIY mechanic. It typically takes less than 30 minutes. You just need to safely access the rear differential, unplug the electrical connector, remove one bolt, and pull the old sensor out. Sometimes it can be stuck, so you may need to gently twist and pull. Installation is the reverse of removal.
🎬 Watch this quick walkthrough of the VSS replacement process.Why is my speedometer still bouncing with a new aftermarket sensor?
This is a common complaint with some lower-quality aftermarket sensors. The electronics may not be calibrated to the same precise standards as the original Motorcraft part, leading to an erratic signal. If you experience this, exchanging it for a Motorcraft or a premium aftermarket brand like NTK often solves the issue.
What are the common ordering mistakes for this part?
The biggest confusion is the name. At the parts store, it might be called a "Vehicle Speed Sensor," "Rear ABS Sensor," or "Wheel Speed Sensor." For the 1993-1997 Bronco, these all refer to the same part on the rear differential. Be sure to specify your vehicle year, as earlier models (pre-1992) had a different setup with a sensor on the transfer case or transmission.
Helpful Videos

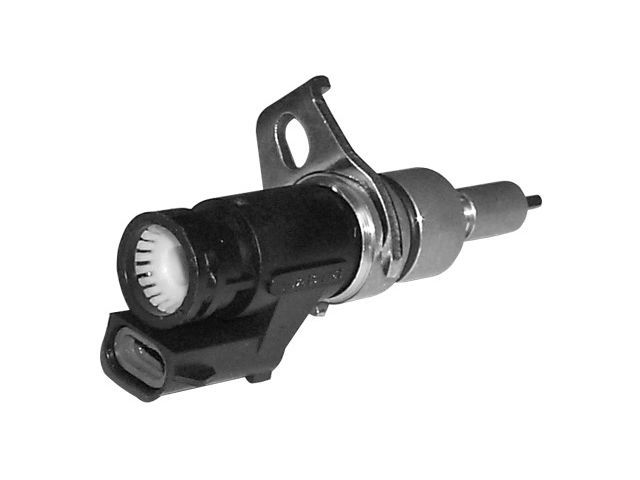

Technical Specifications
OEM Part Numbers: F85Z9E731AB DY1123 F85F-9E731-AB
2-prong, top-mount sensor located on the rear differential.
