A Guide to the Engine Valve Cover Gasket Set for the 1994-2001 Kia Sephia
Stop that burning oil smell and keep your Sephia's engine clean with the right replacement valve cover gasket.
- The most common symptom of failure is a burning oil smell caused by oil leaking onto the hot exhaust.
- This is a simple, DIY-friendly repair that can be done in about an hour with basic tools.
- Always replace the spark plug tube seals, which come in the set, to prevent future oil leaks into the spark plug wells.
- Choose a reputable aftermarket brand like Victor Reinz or Beck Arnley for a reliable, cost-effective repair.
Is Your Kia Sephia Leaking Oil From the Top of the Engine?
Over time, the rubber valve cover gasket on a 1994-2001 Kia Sephia gets hard and brittle from constant exposure to engine heat. When this happens, it can no longer create a proper seal, and oil begins to leak out. This is a very common issue on older vehicles. Fortunately, it's a relatively simple and inexpensive part to replace.
Symptoms of a Failing Valve Cover Gasket
- Burning Oil Smell: This is the most common sign. Oil leaks from the gasket and drips onto the hot exhaust manifold, causing a distinct burning smell.
- Visible Oil and Grime: You may see oil residue or caked-on dirt on the valve cover and the side of the engine. Leaking oil attracts dirt, making the area look messy.
- Oil in Spark Plug Wells: When you pull the spark plug wires, you might find oil pooled in the bottom of the tubes. This is caused by failed spark plug tube seals, which are part of the gasket set. This can lead to engine misfires.
- Low Engine Oil: A significant leak can cause your engine oil level to drop between oil changes, potentially triggering the oil light on your dashboard.
Potential Fire Hazard
Do not ignore a valve cover gasket leak. Oil dripping onto a hot exhaust manifold can be a fire risk. It's important to address the leak promptly.
Choosing the Right Aftermarket Gasket Set
For a vehicle like the 1994-2001 Sephia, a quality aftermarket gasket provides a reliable repair without the higher cost of an OEM part. However, not all brands are created equal. Here’s a breakdown of available options based on general reputation and user feedback.
Higher-Quality Aftermarket (Recommended)
- Victor Reinz: A well-respected gasket manufacturer, often supplying parts directly to European car brands. Forum users often report their gaskets are high quality, soft, and pliable, providing a great seal.
- Beck Arnley: This brand has a reputation for sourcing parts from OEM suppliers. Many users have had good, long-lasting results with Beck Arnley gaskets, sometimes noting they are made in Japan.
Standard & Economy Aftermarket

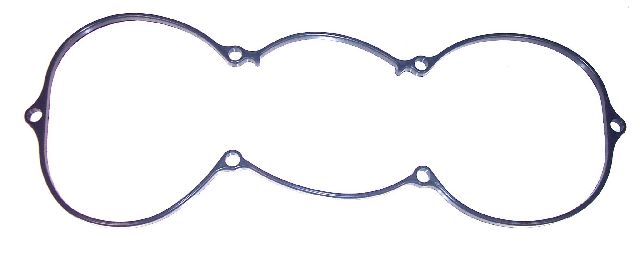

- DNJ Engine Components: DNJ specializes in engine parts and is a popular budget-friendly choice. Reviews are mixed; some users report a perfect fit and good quality, while others have experienced issues with gaskets swelling or kits missing parts. They can be a decent option if you're on a tight budget.
Brands with Limited Information

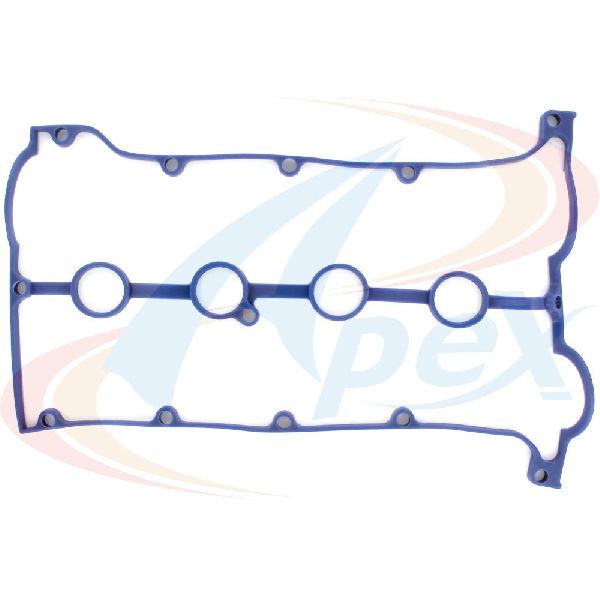

- Apex & DJ Rock: There is very little specific, reliable feedback available for valve cover gaskets from these brands for this application. When choosing a part as critical as a gasket, it's often best to stick with a more well-known and reviewed manufacturer.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $15.24 - $56.32 |
| New OEM (Kia) | $35 - $55 |
| Shop Labor | $80 - $150 |
Pro Tip: Check the Spark Plug Tube Seals
Your valve cover gasket set should include four round seals for the spark plug tubes. Make sure you replace these at the same time as the main gasket to prevent oil-fouled spark plugs and misfires down the road.
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself?
No, this is a great DIY job for a beginner. The replacement is straightforward and requires basic hand tools. The entire process can usually be completed in under an hour. Be careful with the decorative cover held on by Phillips screws, as they can strip easily.
Do I need to use sealant (RTV) with the new gasket?
Generally, you should install the main gasket dry. However, it is standard practice to apply a small dab of RTV sealant at the sharp corners where the cylinder head meets the camshaft caps to prevent small leaks in those areas.
What is the torque spec for the valve cover bolts?
The torque spec for the valve cover bolts is very low, typically around 8-10 ft-lbs (or 120 inch-pounds). It is very important not to overtighten them, as this can damage the gasket or the valve cover itself. Tighten the bolts in a crisscross pattern to ensure even pressure.
What else should I check or replace at the same time?
While the valve cover is off, it's a good time to inspect your spark plugs and wires. If there was oil in the spark plug tubes, you should clean them out thoroughly and consider replacing the spark plugs if they are fouled with oil.
Technical Specifications
OEM Part Numbers: 0K247-10235B
Set includes one valve cover gasket and four spark plug tube seals. Gasket material is typically molded rubber.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
