Engine Oil Pan Replacement Guide for 1994-2002 Pontiac Firebird
Leaking oil or have a damaged pan? This guide covers everything Firebird owners need to know.
- Replacement is much harder on LS1 (98-02) engines than LT1 (94-97) engines, requiring the engine to be lifted or subframe lowered.
- Before replacing the pan, confirm the leak isn't coming from a higher point on the engine, like valve covers or the rear main seal.
- Always use a new, one-piece gasket and replace the drain plug when installing a new pan for a leak-free seal.
- Aftermarket brands like Dorman and Spectra are considered reliable and cost-effective replacements for this vehicle.
Signs of a Failing Oil Pan
The most common reason to replace an oil pan is due to a leak or physical damage. Because the pan is at the bottom of the vehicle, it's vulnerable to impacts from road debris, speed bumps, and curbs. Over time, the gasket that seals the pan to the engine block can also wear out and leak.
- Oil Puddles: The most obvious sign is a puddle of brown or black oil on the ground where you park.
- Low Oil Light: If the leak is bad enough, your oil level will drop, triggering the low oil warning light on your dashboard. Running the engine with low oil can cause severe damage.
- Visible Damage: A quick look under the car might reveal a dented, cracked, or scraped oil pan.
- Stripped Drain Plug: Over-tightening the drain plug during oil changes can strip the threads in the pan, causing a persistent leak that a new plug can't fix.
- Smoke or Burning Smell: In some cases, leaking oil can drip onto hot exhaust components, creating smoke and a burning smell.
A Note on Leaks
Before buying a new pan, make sure the leak is actually from the pan or its gasket. Oil from higher up on the engine, like a valve cover gasket or rear main seal, can drip down and make it look like the oil pan is leaking. A thorough cleaning and inspection are recommended to pinpoint the source.
🎬 Watch this guide on how to confirm an oil pan leak.Choosing the Right Aftermarket Oil Pan

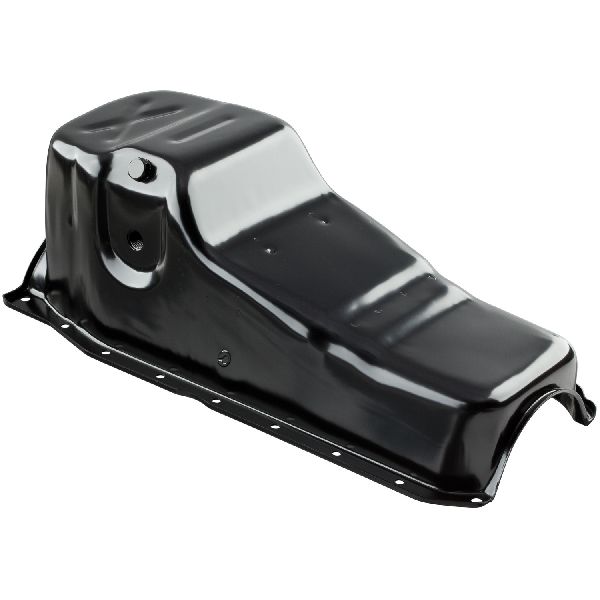

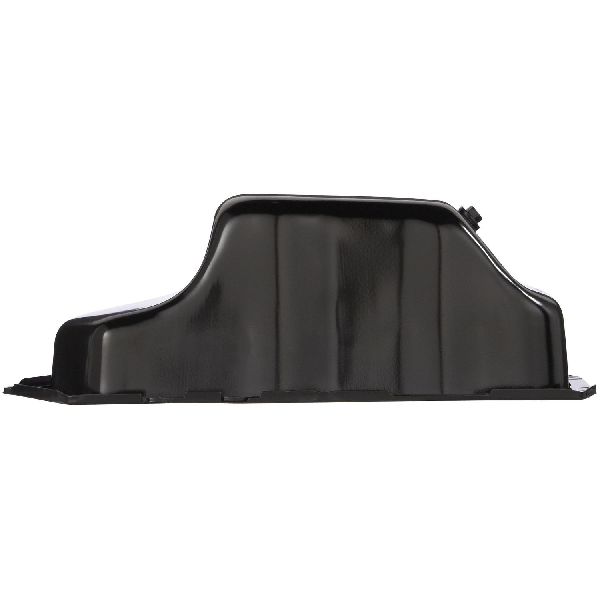

For the 1994-2002 Firebird, several aftermarket brands offer replacement oil pans. Generally, these parts are made from stamped steel and are designed to be direct-fit replacements. When choosing, consider the brand's reputation for fit and quality.
- Good Tier (Dorman, Spectra): Brands like Dorman and Spectra are widely available and generally considered reliable for this application. They often come with a corrosion-resistant coating. While some negative reviews exist regarding drain plug issues or fitment on other vehicles, they are a popular choice for F-body owners.
- Standard Tier (ATP, Pioneer): These brands also offer quality replacement parts. Some users have reported that the steel used can be even thicker than the original equipment pan, offering good durability.
- URO Parts: This brand is another option, though less commonly discussed in forums for this specific vehicle.
Pro Tip: Many aftermarket pans are produced in the same factories and rebranded. Focus on a pan that specifies it is for your exact year and engine (LT1 or LS1), as they are different. Always use a new, high-quality oil pan gasket (Fel-Pro is a popular choice) and a new drain plug with a gasket.
Replacement Cost
Replacing the oil pan on a 4th generation Firebird can vary significantly in cost, largely depending on the engine. The job is much more labor-intensive on the 1998-2002 LS1 V8 models.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $95 - $240 |
| Shop Labor (LT1 V8 / V6) | $300 - $500 |
| Shop Labor (LS1 V8) | $700 - $1200+ |
Note: Costs are estimates and can vary by location and shop. The LS1 engine requires the engine to be lifted or the front subframe to be lowered for pan removal, drastically increasing labor time.
Frequently Asked Questions
Is it hard to replace the oil pan on a 1994-2002 Firebird?
It depends on the engine. For the V6 and 1994-1997 LT1 V8 models, it's a moderately difficult job 🎬 Follow this step-by-step Firebird oil pan removal and installation video. that requires lifting the engine slightly to gain clearance. For the 1998-2002 LS1 V8, it is a very difficult and time-consuming job. Accessing the pan requires either lifting the engine significantly or lowering the entire front K-member (subframe), making it a job best left to experienced mechanics.
🎬 See how to remove an LS1 oil pan with the engine in.Do I need a new oil pump or pickup tube?
While the pan is off, it's an excellent time to inspect the oil pump pickup tube for debris and ensure its O-ring is in good condition. If your engine has high mileage or you've had oil pressure issues, replacing the oil pump is a good preventative measure since you have access.
Are there any recalls for the oil pan?
No, there are no specific recalls for the engine oil pan on the 1994-2002 Pontiac Firebird. There was a recall for certain aftermarket oil filters in 2007 that could lead to oil loss, but this was not related to the pan itself.
Can I just use RTV sealant instead of a gasket?
No. These engines use a one-piece gasket for a reliable seal. While small dabs of RTV sealant are required at the corners where the engine front/rear covers meet the block, you should not use RTV for the entire pan. Always follow the service manual procedure for the best results.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12628771
Material: Stamped Steel or Cast Aluminum. Gasket Type: One-piece. Capacity: Varies by engine (approx. 5 to 5.5 quarts).
