Guide to the 1994-2002 Pontiac Firebird Engine Timing Cover Gasket Set
Stop messy oil and coolant leaks from the front of your Firebird's engine by choosing the right gasket set.
- Identify your engine (3.8L V6, 5.7L LT1, or 5.7L LS1) before purchasing, as the parts are different.
- For LT1 engines (94-97), a timing cover leak can destroy the Optispark distributor; inspect and replace the water pump and related seals at the same time.
- This is a difficult, labor-intensive job that requires special tools like a harmonic balancer puller.
- Choose a quality aftermarket brand like Fel-Pro or Victor Reinz for a reliable, long-term repair.
Understanding Your Firebird's Engine is Key
Before buying a timing cover gasket set, you must know which engine is in your Firebird. The parts are not interchangeable. This guide covers the three main engines for this generation:
- 3.8L V6 (1995-2002): A common engine with a straightforward timing cover design. 🎬 Watch a complete walkthrough of the 3.8L V6 gasket replacement.
- 5.7L LT1 V8 (1994-1997): This engine has a complex front-end accessory drive. The water pump is driven by the camshaft, and the Optispark distributor is located behind it. Leaks in this area are common and can be misdiagnosed.
- 5.7L LS1 V8 (1998-2002): A more modern design with a conventional timing cover and sealing arrangement.
Symptoms of a Failing Timing Cover Gasket
A bad timing cover gasket will make itself known with leaks. Because of where the cover is, these leaks can be blown all over the engine bay by the spinning crankshaft pulley, making a mess and making it hard to pinpoint the source.
- Oil Leaks: The most common symptom is engine oil dripping from the front of the engine. You may see puddles on the ground or a coating of oily grime on the front of the engine block, oil pan, and nearby components.
- Coolant Leaks (LT1 Engine): For 1994-1997 Firebirds with the LT1 engine, a failing timing cover gasket can cause a coolant leak from the water pump passages. This can look like a water pump failure, but the leak is actually from the gasket between the pump, cover, and engine block.
- Low Fluid Levels: A persistent leak will cause your engine oil or coolant level to drop over time, requiring frequent top-offs.
- Engine Overheating (LT1 Engine): A significant coolant leak can lead to low coolant levels and cause the engine to overheat.
Special Note for LT1 Owners (1994-1997)
A coolant or oil leak at the front of your engine is a serious issue. The Optispark distributor sits directly below the water pump. A coolant leak from a bad water pump or timing cover gasket can drip directly onto the Optispark, causing misfires, rough running, and eventual failure of this expensive part. If you are replacing the timing cover gasket, it is highly recommended to inspect, and likely replace, the water pump, water pump drive seal, and Optispark seals at the same time.
Choosing the Right Aftermarket Gasket Set
Aftermarket gaskets often meet or exceed original factory quality, sometimes incorporating improved designs and materials. For a critical job like the timing cover, it's best to choose a reputable brand.
| Brand Tier | Brands | Quality & Use Case |
|---|---|---|
| Premium Performance | Cometic Gasket | Known for multi-layer steel (MLS) gaskets used in high-performance and racing applications. They are excellent but may require perfectly flat and clean surfaces for a good seal. Often considered overkill for a stock daily driver but a top choice for modified engines. |
| OEM-Quality & Daily Driver | Fel-Pro, Victor Gaskets (Victor Reinz) | Fel-Pro is a highly trusted name for American vehicles and is often the go-to choice for repairs. They frequently update designs to fix common factory leak points. Victor Reinz is another excellent OEM-quality supplier. You can't go wrong with either for a reliable, long-lasting repair on a stock or lightly modified Firebird. |
| Economy | Apex, Elring | These brands offer a budget-friendly option. While they can provide a good seal, they may not have the advanced materials or design improvements of the premium brands. They are suitable for a standard repair where budget is the primary concern. |
Pro Tip: Get the Complete Kit

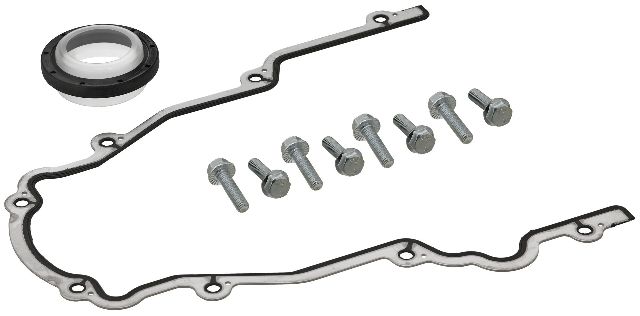

A "timing cover gasket set" should include more than just the main gasket. A quality kit will also include a new front crankshaft seal (also called a front main seal), water pump gaskets, and any necessary O-rings. Replacing these small, inexpensive seals while you have everything apart is essential to prevent future leaks.
Frequently Asked Questions (FAQ)
Is this a good DIY job for a beginner?
This is an advanced repair. It requires draining fluids, removing the serpentine belt, and, most importantly, removing the harmonic balancer with a special puller tool. On LT1 engines, the water pump and Optispark distributor are also involved. For LS1 engines, forum users note that the oil pan may need to be lowered to properly install the new gasket without tearing it, which adds significant complexity. This job is best left to an experienced DIY mechanic or a professional shop.
Do I need to use RTV sealant with the new gaskets?
Most modern gaskets are designed to be installed dry. However, it is standard practice to apply a small dab of RTV sealant at any sharp corners, especially where the timing cover, engine block, and oil pan meet. This helps prevent small leaks from these critical junction points. Always follow the instructions included with your gasket set.
Are there any recalls for this part?
There are no specific recalls for the timing cover gasket itself. However, there were several safety recalls (including NHTSA 15V-201 and others) for leaking valve cover gaskets on some 3.8L V6 engines, which could drip oil onto the hot exhaust manifold and cause a fire. While this is a different part, it highlights the importance of fixing any oil leak at the front of the engine. No recalls were found for the V8 timing cover gaskets.
What else should I replace at the same time?
Since this is a labor-intensive job, it's smart to replace other parts while you have access. Consider replacing the timing chain and gears if your engine has high mileage. For LT1 engines, it is almost mandatory to inspect and likely replace the water pump, water pump drive seal, and Optispark seals. For all engines, replacing the front crankshaft seal included in the kit is a must.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12633904
Kit should include the main timing cover gasket, front crankshaft oil seal, and water pump gaskets. Material composition varies by brand, from advanced rubber composites to multi-layer steel (MLS).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
