Diagnosing and Replacing the Starter Solenoid on a 1994-2003 Mazda B3000
That 'click' but no-start problem on your B3000 often points to the starter solenoid, and this guide explains what to do next.
- The most common symptom of a bad solenoid is a single loud click with no engine crank.
- For this truck, the standard repair is to replace the entire starter assembly, not just the solenoid.
- Before replacing parts, always ensure your battery is fully charged and the cable connections are clean and tight.
- Replacement can be difficult due to tight clearances, sometimes requiring the engine to be lifted slightly for access.
Is Your Starter Solenoid Failing?
A bad starter solenoid is a common reason your Mazda B3000 won't start. The symptoms can be confusing and sometimes get mistaken for a dead battery. Before you buy any parts, make sure your battery is fully charged and the terminals are clean and tight. If the battery is good, a failing solenoid is the next likely suspect.
Common Failure Symptoms
Look for these tell-tale signs:
- A Single Loud Click: You turn the key and hear one loud 'CLICK' from the engine bay, but the engine doesn't crank. This is the most common symptom. 🎬 Watch: See these 5 leading signs of a bad solenoid It means the solenoid is receiving power but isn't successfully engaging the starter motor.
- No Sound at All: You turn the key and get nothing. If your battery is good and the dashboard lights work, the solenoid might have failed completely.
- Intermittent Starting: The truck starts fine one day but just clicks the next. This suggests the electrical contacts inside the solenoid are worn and only work sometimes.
- Engine Cranks Slowly: While less common, a failing solenoid with high internal resistance can prevent the starter from getting full power, causing a slow, weak crank.
Don't Confuse It with the Starter Relay
Your B3000 has a small starter relay in the fuse box under the hood and the main starter solenoid, which is mounted on the starter motor. The relay sends a small signal to the solenoid, which then handles the heavy electrical load. The 'single click' sound is almost always the solenoid on the starter, not the relay in the fuse box.
Choosing the Right Aftermarket Part
For the 1994-2003 Mazda B3000, the starter solenoid is typically replaced as part of the entire starter motor assembly. While it's sometimes possible to buy just the solenoid, the standard and most reliable repair is to replace the whole unit. 🎬 See this walkthrough on replacing the Mazda B3000 starter motor This ensures all components are new and avoids a situation where you replace the solenoid only to have the starter motor fail a few months later.
Brand Quality: ACDelco vs. Standard Ignition
The Mazda B3000 is a rebadged Ford Ranger, so parts are plentiful and aftermarket quality is generally good. When choosing a replacement, you'll likely see these brands:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand. They have a reputation for producing reliable electrical components that meet or exceed original specifications.
- ACDelco: While traditionally a GM brand, ACDelco makes parts for many different vehicles. Their quality can vary, with different product lines (e.g., Professional, Gold) at different price points. Some ACDelco parts are re-branded components from other manufacturers. For a component like a starter, sticking to their professional-grade line is recommended if you choose this brand.
- OEM (Motorcraft): The original parts for your truck were made by Motorcraft (Ford's parts division). These are a safe bet but will be the most expensive option.
Pro Tip: Given the age of these trucks, a quality new aftermarket starter assembly from a brand like Standard Ignition often provides the best balance of quality and price. It's a durable, reliable repair without the high cost of an OEM part.
Typical Replacement Costs
Prices can vary based on brand and where you buy. Remember, these costs are for the entire starter motor assembly, which is the recommended repair.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter Assembly | $44.56 - $56.48 |
| Remanufactured OEM (Motorcraft) Starter | $110 - $150 (plus core charge) |
| Shop Labor | $150 - $250 |
Frequently Asked Questions
Can I replace just the solenoid instead of the whole starter?
While standalone solenoids are sold, it's not the standard repair. The labor to remove the starter is the same either way, and replacing the entire assembly ensures both the motor and solenoid are new. On some models, accessing the solenoid screws while the starter is on the vehicle is nearly impossible.
How difficult is it to replace the starter on a B3000?
The difficulty can range from moderate to difficult. On some B3000/Ranger models, there is very little clearance to remove the starter. In some cases, you may need to unbolt an engine mount and slightly jack up the engine to create enough room to get the old starter out and the new one in. It requires proper tools, jack stands for safety, and some patience.
🎬 Watch: How to replace the starter on a 3.0L V6My truck makes a rapid clicking sound, is that the solenoid?
A rapid, machine-gun-like clicking is almost always a sign of a low battery or a poor battery cable connection, not a bad solenoid. The solenoid is trying to engage, but there isn't enough power, so it clicks on and off very quickly. Charge and test your battery before suspecting the starter system.
Are there any recalls for the starter solenoid on the 1994-2003 B3000?
No. Searches of NHTSA and other public databases show no recalls or technical service bulletins (TSBs) specifically related to the starter or starter solenoid for this vehicle range.
Helpful Videos
Technical Specifications
OEM Part Numbers: F02U-11000-AA F02Z-11002-A 3L5Z-11002-AA ZZP0-18-400R-0A

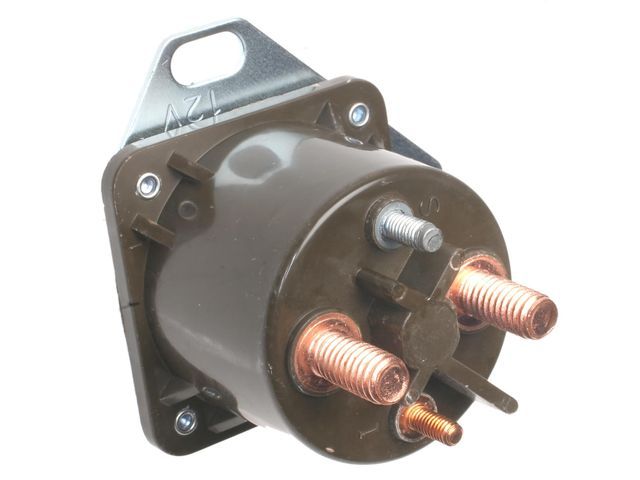

The starter solenoid is typically included with the starter motor assembly. It is a cylindrical component attached to the starter that features a large terminal for the positive battery cable, a large terminal leading to the starter motor, and a small terminal for the ignition switch signal.
