Choosing the Right Alternator for Your 1994-2004 Ford F-250
Don't get stranded—here’s what you need to know before replacing the alternator on your OBS or Super Duty F-250.
- For 7.3L Power Stroke models, always test and replace both batteries at the same time as the alternator to prevent premature failure of the new part.
- Before replacing the alternator, inspect the wiring harness plug for melting or corrosion, as this is a common failure point that mimics a bad alternator.
- Choose an amperage based on your needs: stock is fine for most, but a high-output unit is a smart upgrade for work trucks with accessories like plows or winches.
- Brand quality varies significantly; premium brands like Bosch and Denso offer OEM-level reliability, while budget brands have inconsistent quality.
Is Your F-250 Alternator Failing?
An alternator rarely fails without warning. Because these trucks have high electrical demands, symptoms often appear quickly once the unit starts to weaken. Recognizing the signs early can save you from a dead battery and an expensive tow.
- Battery Warning Light: The most obvious sign is the battery-shaped light on your dashboard. This means the system voltage is low and the battery isn't being charged properly.
- Dimming or Flickering Lights: You may notice headlights, dash lights, or interior lights dim when the truck is idling and brighten when you accelerate.
- Electrical Problems: Power windows moving slowly, a radio that cuts out, or other strange electronic behavior can be caused by an alternator struggling to provide consistent voltage.
- Whining or Grinding Noises: A high-pitched whine or a grinding sound from the front of the engine can indicate failing bearings inside the alternator.
- Weak or Dead Battery: If you have trouble starting your truck or the battery keeps dying, the alternator is likely not recharging it.
Pro Tip: Check Wires and Batteries First!
Before you blame the alternator, check the simple things. A known issue, especially on older trucks, is a corroded or melted alternator wiring harness connector. On 7.3L Power Stroke models, a bad connection can even cause engine performance issues. Also, for diesel trucks with two batteries, always replace them as a pair. A weak or old battery on one side will constantly drain the new one and can destroy a brand-new alternator in a short time.
Generation Differences: OBS vs. Super Duty
The 1994-2004 F-250 spans two distinct truck generations with different alternators.
- 1994-1997 (OBS - Old Body Style): These trucks typically used a Ford 3G series alternator. The standard output was 95 amps, with an optional 130-amp unit. A 130-amp alternator is a common and worthwhile direct-fit upgrade. 🎬 Watch: How to easily remove the alternator on OBS trucks.
- 1999-2004 (Super Duty): These trucks use a Ford 6G series alternator. Stock output was usually 110 amps for diesel engines and 110-130 amps for gas engines. A popular upgrade for 7.3L owners is to install a 140-amp alternator from a later 6.0L Power Stroke, which may require minor grinding on the mounting bracket to fit.
Choosing the Right Aftermarket Alternator
Not all aftermarket alternators are created equal. They generally fall into three tiers of quality and price. Your choice depends on your budget and how you use your truck.
Best Tier: Premium New & High-Output
These are the most reliable and durable options, ideal for work trucks, daily drivers, or anyone who values maximum reliability. Expect to pay more for this quality.
- Bosch & Denso (New): These brands are often the original equipment (OEM) manufacturers and are widely considered the top tier for aftermarket replacements. They are built to high standards and provide stable, reliable power.
- Powermaster & Proform: If you've added a snow plow, winch, large stereo, or extensive lighting, you need more power than stock. These brands specialize in high-output alternators (150A, 200A, or more) designed to handle heavy electrical loads.
Warning: High-Output Upgrades Require Wire Upgrades
If you install a high-output alternator (typically 150 amps or more), you must upgrade the main power wire from the alternator to the battery and the main ground wires. The factory wiring is too small to handle the extra current and can melt, creating a serious fire risk.
Better Tier: Quality Remanufactured
This tier offers a good balance of quality and cost. These parts are a solid choice for a standard-use truck.
- Bosch & Denso (Remanufactured): A remanufactured unit from a top brand like Bosch or Denso is an excellent option. They are rebuilt to factory specs and are often more reliable than a new unit from a budget brand.
- Remy: Often available as new or remanufactured, Remy can be a good mid-tier choice. However, some users report inconsistent quality, so purchasing from a vendor with a good warranty is recommended.
Good Tier: Value Brands
These are the most affordable options, but quality can be inconsistent. They are best suited for a truck that isn't used for heavy work or as a temporary fix. A long-term warranty is essential if you choose one of these brands.
- WAI Global, BBB Industries, Store Brands: These brands offer low prices, but forum discussions show mixed results. Some units fail prematurely or may not even produce their advertised amperage. If your budget requires this option, be prepared to potentially use the lifetime warranty for a replacement.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $350 - $1000+ |
| New Aftermarket | $102 - $552 |
| Remanufactured Aftermarket | $120 - $350 |
| Shop Labor | $110 - $190 |
Frequently Asked Questions (FAQ)
How do I test my F-250's alternator?

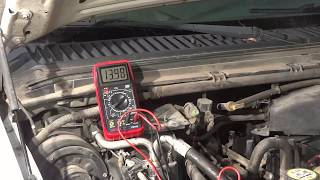

The easiest way is with a simple voltmeter. With the engine running, touch the meter's probes to the battery terminals. A healthy alternator should produce a reading between 13.5 and 14.5 volts. If the voltage is around 12.5V or less, the alternator is not charging the battery. 🎬 Watch: A quick guide on testing your charging system. Most auto parts stores can also perform a free, more comprehensive test on the alternator itself.
Can I replace the alternator myself?

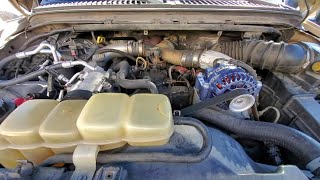

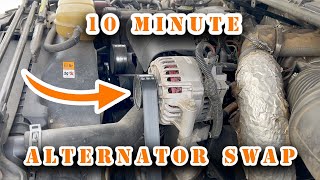

Yes, this is a very DIY-friendly job for someone with basic mechanical skills. The alternator is located at the top front of the engine and is easily accessible. The job involves disconnecting the battery, using a wrench to release the tension on the serpentine belt, removing a few bolts, and swapping the electrical connectors. 🎬 See this step-by-step walkthrough for replacing a Super Duty alternator. The entire process usually takes 1-2 hours.
What amperage alternator do I need?
For a stock truck with no major electrical add-ons, a standard replacement (95A-130A depending on your original unit) is perfectly fine. If you have added accessories like a plow, winch, or high-power audio system, you should strongly consider a high-output alternator of 150A or more to handle the extra load.
What is the most common mistake when ordering?
For the Super Duty models, a common mistake is getting the wrong electrical connector. Some use a D-shaped plug while others use an oval one. It is critical to visually check the plug on your old alternator before ordering a replacement. Also, always verify the pulley has the same number of grooves as your original part.
Helpful Videos
Technical Specifications
OEM Part Numbers: F81Z-10346-EA F81U-10300-EB
Vehicle uses a Ford 3G series (1994-1997) or 6G series (1999-2004) alternator. Stock amperage ranges from 95A to 130A depending on engine and model year. Diesel models utilize a dual battery system. The electrical connector on Super Duty models can be either D-shaped or oval.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
