Land Rover Discovery Fuel Pump Module Assembly Guide (1994-2004)
Don't let a failing fuel pump leave your Discovery stranded; here's what you need to know.
- Verify your vehicle model: Discovery I (94-99) and Discovery II (99-04) use different parts.
- For Discovery II, check if your pump has one plug or two plugs (with a pressure sensor) before ordering.
- Symptoms like a noisy pump or hard starting can have other causes; diagnose before replacing the pump.
- A quality aftermarket brand like Delphi offers a reliable, cost-effective alternative to expensive OEM parts for this repair.
Symptoms of a Failing Fuel Pump Module
A bad fuel pump module in your Discovery won't always fail suddenly. It usually gives warning signs. If your truck is cranking but won't start, the fuel pump is a likely suspect. Other common symptoms include the engine sputtering at highway speeds, surging, or a noticeable loss of power when accelerating or climbing hills. You might also notice the engine coughs and then shuts off a few seconds after starting. A loud whining or buzzing noise from the rear of the vehicle is the pump itself crying for help. Sometimes, a failing check valve inside the pump assembly will cause long crank times after the truck has been sitting for a few hours, because the fuel pressure bleeds off.
Choosing the Right Aftermarket Fuel Pump
For a vehicle of this age, you have several good options without paying dealership prices for a Genuine Land Rover part. The original pump was often made by Bosch, which is available as an OEM-quality replacement.
Important: Check Your Pump Before Ordering!

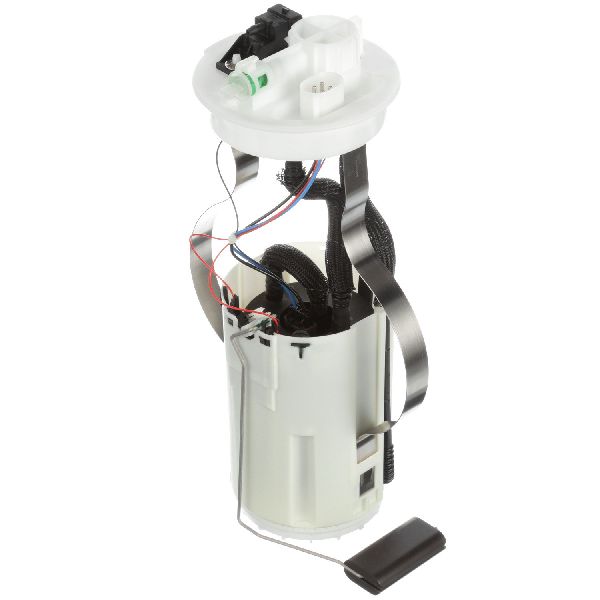

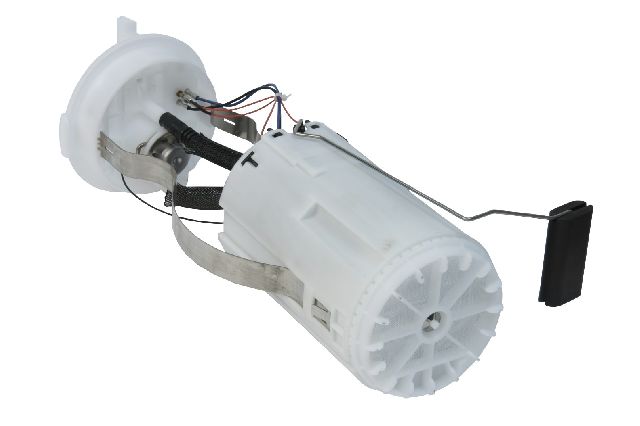

Land Rover Discovery II (1999-2004) models used two different fuel pump modules. Early models (roughly 1999-2001, up to VIN YA290236) have a pressure sensor on top of the pump and two electrical plugs. Later models (2001-2004, from VIN 1A290237) do not have this sensor and use a single plug. You must check which version your vehicle has to avoid ordering the wrong part. Discovery I (1994-1999) models use different pumps entirely.
🎬 See how to access the fuel pump on 1997 models.When choosing an aftermarket brand, you generally get what you pay for. Here's a breakdown:

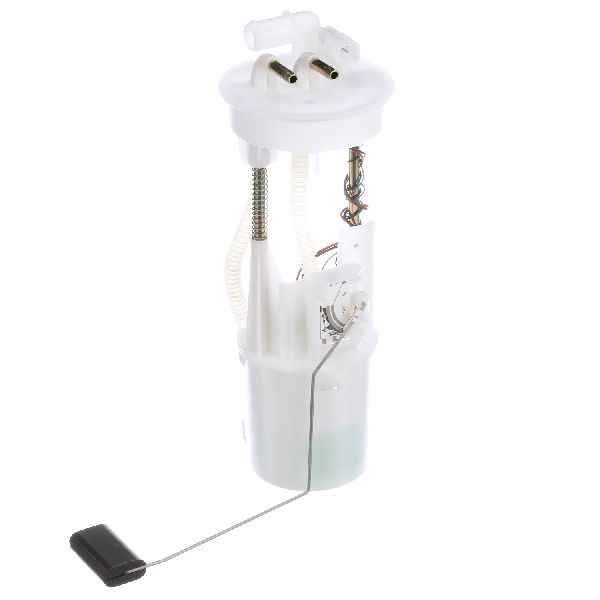

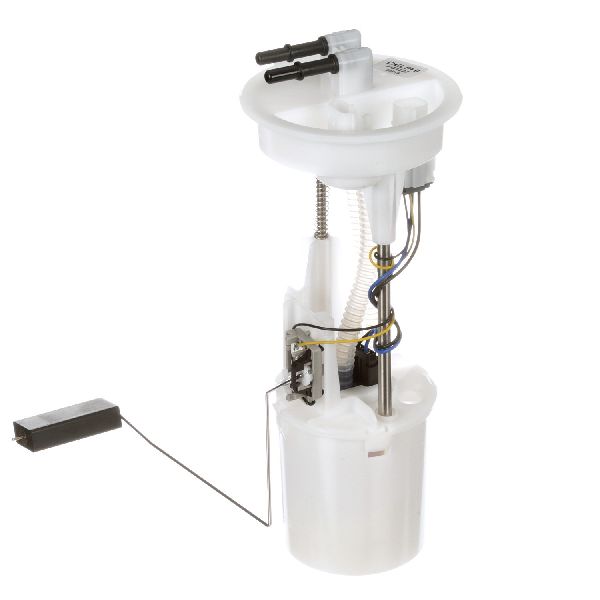

- Premium Aftermarket (e.g., Delphi): Brands like Delphi have a strong reputation for reliability in the aftermarket community. They are often considered a solid choice for parts you don't want to replace again soon, offering a good balance of quality and price.
- Standard Aftermarket (e.g., URO Parts, US Motor Works): These brands offer a more budget-friendly price point. While they can be a good value, some forum discussions suggest that for a job like a fuel pump—which can be labor-intensive—it's often worth spending more for a part with a better track record. For an older vehicle or a tighter budget, they can be a viable option.
DIY Replacement and Cost

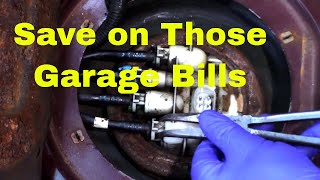

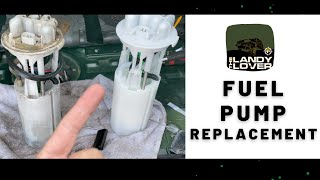

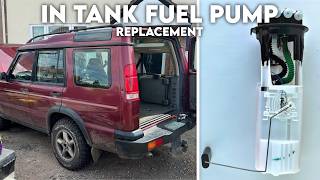

Replacing the fuel pump module is a job a confident DIYer can handle. Luckily, you do not need to drop the fuel tank. The pump is accessed through a panel under the carpet in the rear cargo area. 🎬 Watch this step-by-step guide for replacing the in-tank fuel pump. The most difficult part is often removing the large plastic locking ring that holds the pump in place, which can be done by carefully tapping it with a hammer and a blunt screwdriver. 🎬 Watch a mechanic demonstrate the fuel pump replacement process. Many owners choose to cut the carpet for easier access to avoid removing interior trim.
| Item | Cost Range |
|---|---|
| New Aftermarket Fuel Pump Module | $187 - $772 |
| New OEM (Bosch) Fuel Pump Module | $300 - $450 |
| Shop Labor | $143 - $210 |
| Total Professional Replacement (OEM Part) | $777 - $1,163 |
Frequently Asked Questions
Do I have to drop the fuel tank to replace the pump?
No. On the 1994-2004 Discovery, the fuel pump module is accessible through a round panel in the floor of the cargo area, under the carpet.
Is an aftermarket fuel pump good enough for my Discovery?
Yes. For this part, a quality aftermarket brand like Delphi is a reliable and cost-effective choice compared to a genuine-branded part. Given the age of the vehicle, it provides a great balance of performance and value.
What tools do I need for the replacement?
You'll need basic hand tools to remove trim and the access panel cover. The main challenge is the fuel pump locking ring. While a special tool exists, most people use a brass punch or a blunt, flat-head screwdriver and a hammer to carefully tap the ring counter-clockwise to loosen it. It's also wise to have rags and a fire extinguisher nearby when working with fuel.
My pump is noisy. Does that mean it's failing?
A loud humming or whining sound from the pump is a strong indicator that it is working too hard or failing. However, a TSB for some Discovery models noted that a noisy pump could also be caused by air getting into the fuel system from a bad O-ring on the fuel filter housing, which is a much cheaper fix. It's important to diagnose the issue properly before replacing the entire pump module.
Helpful Videos
Technical Specifications
OEM Part Numbers: WFX101060 WFX101070 ESR3926 PRC9409
In-tank fuel pump and sending unit assembly. Different versions exist for Discovery I and Discovery II, with a further split in Discovery II models based on the presence of a fuel pressure sensor on the module.
