Pontiac Grand Prix Engine Torque Strut Mount Guide (1994-2008)
Stop the clunking noises and vibrations in your Grand Prix by understanding and choosing the right engine torque strut mount.
- The most common symptoms of failure are clunking when shifting, vibration at idle, and visible engine rocking.
- This is an easy DIY repair, requiring basic tools and less than an hour for the two upper mounts.
- Budget aftermarket brands (Anchor, DEA, Westar) are affordable but may be less durable or cause more vibration than OEM parts.
- Always check for and repair oil leaks from the valve covers, as dripping oil will destroy the new mounts.
Is Your Grand Prix Shaking or Clunking?
If you're feeling a lot of vibration at idle, hearing a "clunk" when you shift from park to drive, or feeling the engine lurch when you accelerate, your engine torque strut mounts are likely worn out. These parts are made of rubber that cracks, hardens, and weakens over time, a common issue on cars over 100,000 miles. Ignoring a bad mount isn't a good idea; while the car is drivable, the excessive engine movement can damage other parts like radiator hoses, exhaust components, and even the power steering rack.
Common Symptoms of Failure
- Clunking or Thudding Noises: A distinct "clunk" when shifting between Park, Reverse, and Drive is a classic sign. You may also hear knocking sounds when going over bumps.
- Excessive Vibration: You might feel vibrations through the steering wheel, floor, or the entire car, especially when idling at a stoplight.
- Visible Engine Movement: Open the hood and have a helper hold the brake firmly while shifting from Park to Reverse. If you see the engine lift or jerk 🎬 Watch this video to see these symptoms in action. more than an inch or so, the mounts are bad.
- Visual Damage: Look at the rubber bushings inside the mounts. If they are cracked, torn, or look compressed and deformed, they need to be replaced.
Check for Oil Leaks
A common issue on the 3.8L V6 engine is a leaking valve cover gasket, which can drip oil directly onto the mounts. Engine oil breaks down the rubber, causing the mounts to fail prematurely. If you're replacing the mounts, make sure to fix any oil leaks first.
Choosing the Right Aftermarket Mount
For the Grand Prix, you have a choice between original equipment (OEM) and several aftermarket brands. While OEM mounts from ACDelco are often considered the best for ride quality, they are also the most expensive. Aftermarket brands offer a more affordable solution, but quality can vary.
Brand Quality Tiers:
- OEM / Premium Aftermarket (ACDelco): Generally provide the best fit and ride quality, using softer rubber compounds and sometimes hydraulic filling to absorb vibration effectively. They are the most expensive option.
- Standard Aftermarket (Anchor, DEA, Westar, Pioneer): These brands are widely available and very affordable. Owner experiences are mixed; some find they work fine for daily driving, while others report they fail more quickly or use harder rubber that transmits more vibration into the cabin compared to OEM. They are often considered a budget-friendly, if potentially shorter-term, solution.
Replace in Pairs
Your Grand Prix has two upper torque strut mounts. It's highly recommended to replace both at the same time. If one has failed, the other has been under extra stress and is likely not far behind. Replacing them in pairs ensures even performance and stability.
Cost of Replacing Engine Torque Strut Mounts
| Part Type | Estimated Cost (Part Only) |
|---|---|
| New Aftermarket (Economy) | $8.56 - $32.02 |
| New OEM (ACDelco) | $50 - $80 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Is replacing the torque strut mounts a DIY job?
Yes, this is one of the easiest repairs you can do on your Grand Prix. The two upper torque strut mounts are right on top of the engine and easily accessible. The job typically requires only basic hand tools like a 15mm wrench or socket and can be completed in under an hour.
🎬 Follow this step-by-step guide to replace your engine mounts.Are there any recalls for Grand Prix engine mounts?
There are no recalls for the engine mounts themselves, as they are considered a normal wear item. However, there were related safety recalls for some 1997-2003 models with the 3.8L V6 engine due to oil leaks from the valve cover gasket that could drip on the exhaust manifold, creating a fire risk. Another recall for a small number of 2004 models involved a cracking front frame body mount bracket, which is a separate issue from the rubber engine mounts.
What is the torque spec for the mount bolts?
While it's always best to consult a service manual for your specific year, a common torque specification for the 15mm bolts on these mounts is 35 ft-lbs. Over-tightening can damage the aluminum mounting brackets.

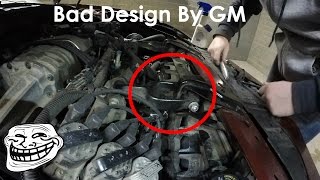

🎬 See how to properly fix and install new dog-bone mounts.Will new mounts make my car feel different?
Yes, absolutely. Replacing worn torque strut mounts will make your Grand Prix feel smoother and quieter. The clunking noises will be gone, and the vibrations you feel at stoplights should disappear, making the car feel more responsive and solid.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10420009 24503458 10271462
The engine torque strut mount, also known as a 'dog bone' mount, consists of a metal body with rubber bushings at each end. It connects the top of the engine to the upper radiator support or frame. The bolts are typically 15mm, and a common torque spec is 35 ft-lbs.
