A Guide to Aftermarket Spark Plugs for the 1995-1999 BMW R1100GS ABS
Keep your R1100GS Boxer engine firing on all cylinders with the right set of spark plugs.
- The NGK BKR7EKC is the most recommended aftermarket spark plug, offering OEM-level performance.
- The Autolite 3923 is a popular, low-cost alternative that some owners believe helps reduce engine surging.
- A special thin-walled spark plug socket is required for the job due to the deep plug wells.
- Always check the spark plug wells for oil, as this is a common issue that can cause misfires.
Signs of Failing Spark Plugs
The spark plugs in your R1100GS are wear items and need to be replaced periodically. As they degrade, you may notice several symptoms that can affect your ride quality.
Common Failure Symptoms:
- Rough Idling: The engine may shake or vibrate more than usual when stopped.
- Engine Surging: A noticeable, rhythmic change in engine speed while holding a steady throttle. While a known trait of this engine, bad plugs can make it worse.
- Hard Starting: The engine turns over but struggles to fire up and run on its own.
- Poor Acceleration: The bike may feel sluggish or hesitant when you twist the throttle.
- Misfiring: You might feel or hear the engine stumble, especially under load or during acceleration.
- Reduced Fuel Economy: If you're stopping for gas more often, worn plugs could be a contributing factor.
Choosing the Right Aftermarket Spark Plug
When it comes to spark plugs for the R1100GS, sticking to the basics is often the best approach. The original ignition system was designed for standard, dual-electrode copper plugs. While expensive iridium or platinum plugs are available, many owners report they can actually worsen the bike's tendency to surge.
Brand Quality Tiers

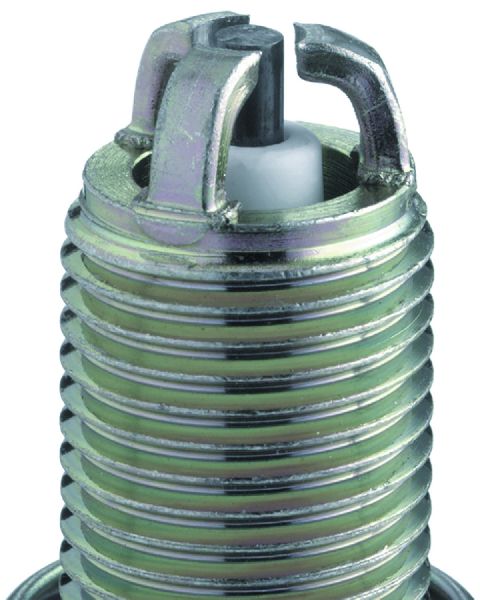

Tier 1: NGK
The NGK BKR7EKC is widely considered the go-to replacement spark plug for the R1100GS. It is a dual-electrode plug that is often supplied by BMW dealers as the official replacement, even though the original plug was a Bosch FR6DDC. For reliability and performance that matches the original factory design, the NGK is the safest and most recommended choice.
Tier 2: Autolite
The Autolite 3923 is a very popular alternative among R1100GS owners, particularly in North America. Many riders have found that this inexpensive, single-electrode plug can help reduce the engine's surging tendency. However, be aware that some sources indicate the Autolite 3923 may be a slightly hotter plug than the factory specification, which could potentially cause issues during sustained high-load riding.

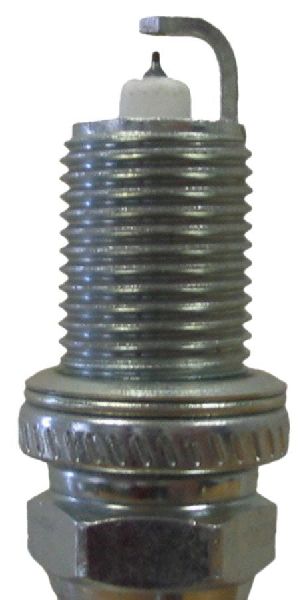

Tier 3: Champion
Champion plugs are less commonly discussed by R1100GS owners. While they are a major brand, the overwhelming community preference leans toward NGK for OEM-style performance or Autolite for a budget-friendly alternative. Unless you have a specific reason or preference for Champion, sticking with NGK or Autolite is the more common path.
Pro Tip: Check the Wells for Oil
The R1100 'Oilhead' engine is known for a potential issue where the gasket at the bottom of the spark plug tunnel can fail. This allows engine oil to fill the deep well where the spark plug resides, which can short out the plug and cause a misfire. 🎬 Watch this quick tip on removing oil from the spark plug well. When you pull the spark plug coil, always shine a light down the tunnel to check for oil before proceeding.
🎬 See why oil enters the well and how to fix it.Aftermarket Spark Plug Cost
| Brand | Typical Price Per Plug | Notes |
|---|---|---|
| NGK (BKR7EKC) | $8 - $14 | The community-recommended standard. |
| Autolite (3923) | $5 - $8 | A popular, budget-friendly alternative. |
| Champion | $5 - $10 | A viable option, but less common for this model. |
Frequently Asked Questions
How often should I replace the spark plugs?
For standard copper plugs like the NGK BKR7EKC or Autolite 3923, a good interval is every 12,000 miles or every two years. Given their low cost, replacing them is inexpensive preventative maintenance.
What is the correct spark plug gap for the R1100GS?
The recommended spark plug gap is 0.8mm (0.032 inches). Even if a plug is advertised as 'pre-gapped', you should always verify the gap with a feeler gauge before installation.
Are expensive iridium plugs a worthwhile upgrade?
For the 1995-1999 R1100GS, the general consensus is no. Many owners who have tried premium iridium plugs report that they can make the bike run worse, often increasing the low-speed engine surge. The stock ignition system is optimized for standard copper plugs.
Do I need a special tool to change the spark plugs?
Yes, you will likely need a special thin-walled spark plug socket. The spark plugs are located in a deep, narrow recess in the cylinder head, and a standard socket will not fit. The factory toolkit that came with the motorcycle should include the correct tool.
Should I use anti-seize on the spark plug threads?
No. Major manufacturers like NGK coat their plugs with a special plating that prevents seizing and acts as a release agent. Using anti-seize can alter the torque reading, leading you to over-tighten the plug and potentially damage the cylinder head.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12121342125
Recommended Plug: NGK BKR7EKC (dual electrode) or Autolite 3923 (single electrode). Required Gap: 0.8mm (0.032"). A thin-walled spark plug socket is necessary for installation.
